553241 DC in Amplifier 2 outputs

553241 DC in Amplifier 2 outputs

Model: 553241
SKU: 11-01-0025
In Stock
55,00 €
In Stock
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
1 Working Day Delivery ACS
Speedy and reliable parcel delivery!
SKU: 11-01-0025 Categories: , , Tags: , ,

Download PDF

  • “F” connectors
  • 2 outputs
  • Input power supply for pre-amplifie
  • 20 dB Gain
  • SUITABLE FOR CABLENET FREQUENCIES

Description

553241 DC in Amplifier 2 outputs to extend the terrestrial television domestic network.
Equipped with LTE790/4G filtering and input power supply for pre-amplifier or BOSS system feeding.

Highlights

  • Low-impact visual design and limited size
  • Integrated high-performance switched-mode power supply (40% less than a standard amplifier )
  • Fully automated manufacturing subject to the most stringent quality controls

Main features

  • Manual gain control, protected by a folding cover
  • ON/OFF DC pass switch, for pre-amplifier or BOSS system powering
  • Can be wall-mounted using screws
  • “F” connectors

Televes 553241 DC in Amplifier 2 outputs can be used for Cablenet RF network in Cyprus as it supports 47-790 Frequencies

SKU: 11-01-0025

Number of outputs 2
TV output No
Frequency range MHz
47 ... 790
Gain dB
20
Output level DIN45004B dBμV
110
Output level EN50083 IMD3 2tones -60dB dBμV
117
Noise figure dB
6
Powering per inputs Vdc 12
Max current input mA 100
Input voltage Vac 196 ... 253
Mains frequency 50 Hz / 60 Hz
Max. current mA 34
Max. power consumption W 3.6
Operating temperature °C -5 ... 45
Protection index 20

Additional information

Brand

Televes

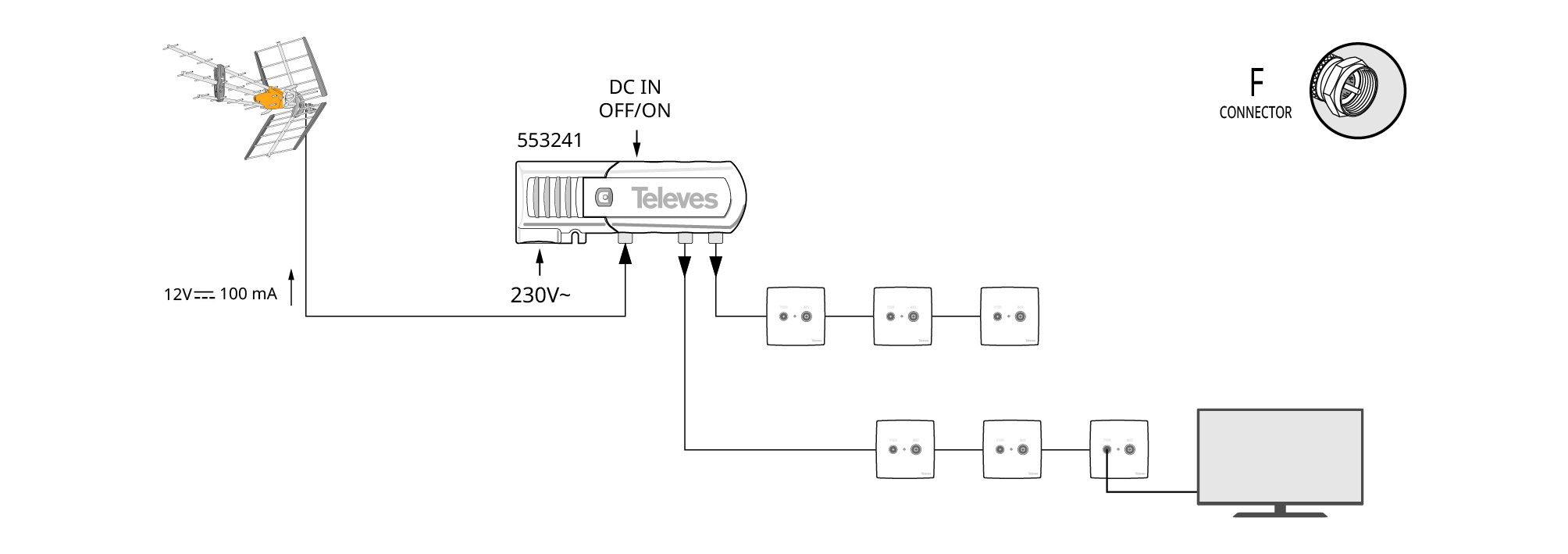

Application Example

Downloads

Data sheet

Product sheet
