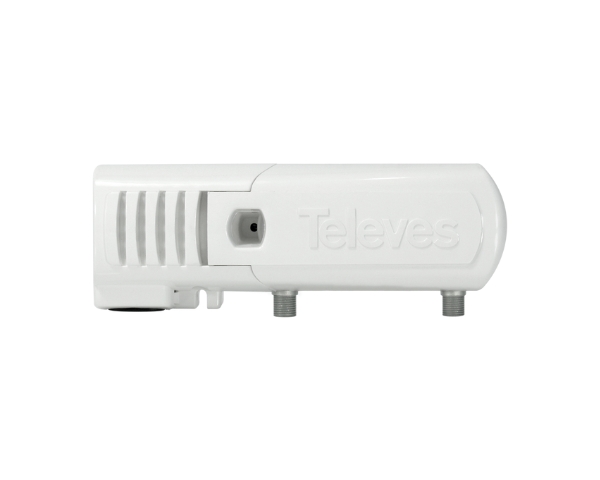

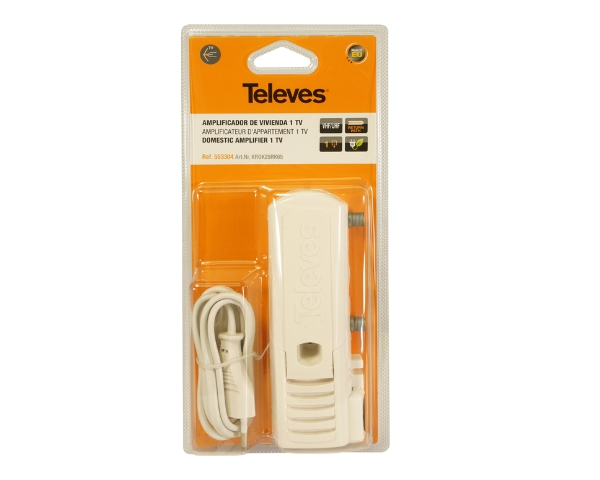

553304 Televes “F” 25dB 1 output: Passive return channel

Model: 553304
SKU: 11-01-0014
In Stock
59,00
In Stock
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
1 Working Day Delivery ACS
Speedy and reliable parcel delivery!
SKU: 11-01-0014 Categories: , ,

Download PDF

  • 25dB
  • Cablenet Channels
  • Passive Return
  • SUITABLE FOR CABLENET FREQUENCIES

Description

553304 Televes “F” 25dB domestic amplifier equipped with equalization 1 output: VHF/UHF + Passive return channel, DOCSIS 3.0

Domestic amplifier with 1 output to extend the terrestrial television domestic network. Amplifies and equalizes the terrestrial band and provides a passive return channel to allow communication between the subscriber modem and the operator. Its expanded bandwidth in the forward path (88 MHz-1006 MHz) makes the amplifier compatible with DOCSIS 3.0.

Highlights
  • Forward channel up to 1 GHz (DOCSIS 3.0)
  • Passive return channel 5 MHz – 65 MHz
  • Low-impact visual design and limited size
  • Integrated high-performance switched-mode power supply (40% less than a standard amplifier )
  • Fully automated manufacturing subject to the most stringent quality controls
Main features
  • Adjustable equalizer and manual gain control, protected by a folding cover
  • Can be wall-mounted using screws
  • “F” connectors

553304 Televes “F” 25dB Amplifier can be used for Cablenet RF network in Cyprus as it supports 47-790 Frequencies

SKU: 11-01-0014

Number of outputs 1
TV output No
Frequency range MHz
5 ... 65 88 ... 1006
Gain dB
-1 25
Gain adjustment range dB
-- 0 ... 18
Equalizator dB
-- 0 ... 18
Output level DIN45004B dBμV
-- 116
Noise figure dB
-- 5
Input voltage Vac 220 ... 230
Mains frequency 50 Hz / 60 Hz
Max. current mA 24
Max. power consumption W 2.4
Operating temperature °C -5 ... 45
Protection index (IP) 20
