CAT6A UTP AWG24 Copper LAN Cable 305m RS601
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

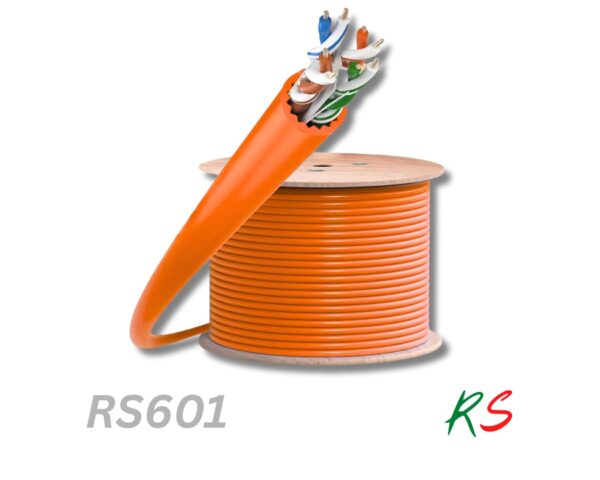

The RS601 CAT6A U/UTP LAN PVC Cable is a high-performance networking cable designed for professional structured cabling installations. Made with 100% solid bare copper conductors (24AWG) and tested up to 500MHz, it delivers reliable high-speed data transmission with excellent signal integrity. Supplied on a 305-meter wooden reel, this cable is ideal for large-scale LAN installations in offices, commercial buildings, and residential projects. Fully compliant with EIA/TIA 568, ISO/IEC 11801, and Fluke tested for guaranteed performance.
Technical Features
- Class: Cat 6A
- Type: U/UTP CAT. 6A CU PVC 24AWG
- Comply with TIA/EIA-568B.2-1
- Polyehtylene conductor insulation, 0.98 mm diameter
- Conductor: material: Solid copper, diameter (mm): 0.52± 0.02, type: AWG 23
- Ιsolation material: Polyehtylene, diameter (mm): 0.98
- Filler: Polyethylene
- Outer sheath: material: PVC
- Diameter (mm): 7.1 ± 0,2, thickness (mm): 0,52 ± 0,05
- Nominal impedance Ohm: 100 ± 15
- Transfer rate up to 10 Gbps
- Frequency range of up to 500MHz
- Enviromental Operating temperature °C -25 … 70
- Color: Orange

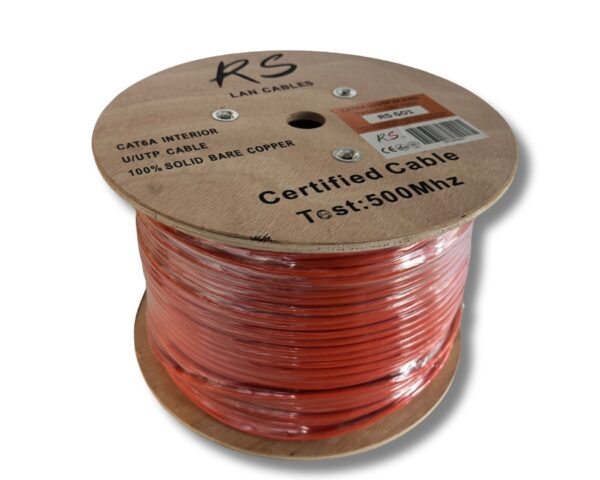

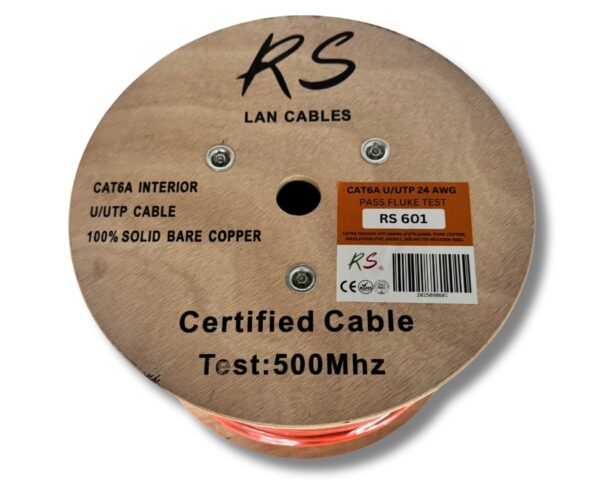

- Packing: Wooden Reel 305m, with cable consumption indicator
- Packing Quantity: 1 pc / 350m

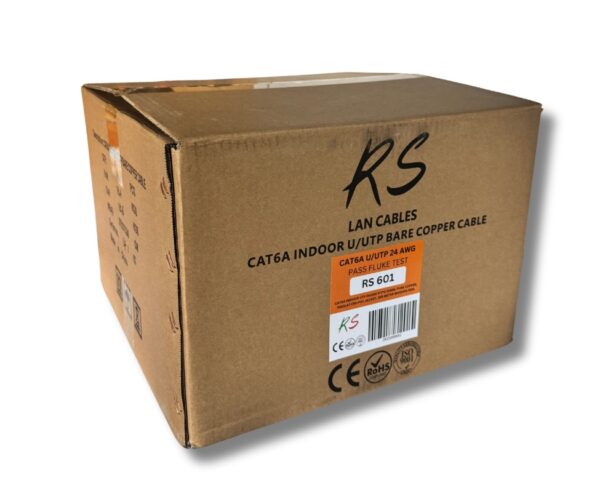

- Carton Size: 370x370x260mm
- Net Weight: 13kg
- G.Weight: 15.6kg
| Weight | 15.6 kg |
|---|---|
| Dimensions | 37 × 37 × 26 cm |
| Manufacturer | RS |
| LAN Category | Cat6a |
| LAN Type | UTP |
| Length | 305.00m |
