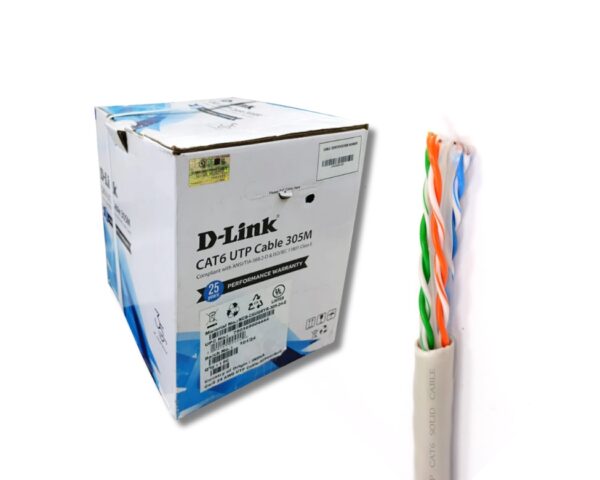

D-Link NCB-C6UGRYR-305-24 Cat6 UTP AWG24 Pure Copper 305m is a high-performance Cat6 UTP LAN cable designed for reliable Gigabit networking and structured cabling installations. Manufactured with solid bare copper conductors and HD-PE insulation, it ensures stable signal transmission, reduced interference, and excellent long-distance performance for professional residential and commercial applications.
CAT6 cables reduce crosstalk and system noise. The superior insulation around the 24 AWG copper wires attribute to the increased performance. They can transmit data at 1000 Mbps (~1 Gigabit per second) with a frequency of 250 MHz and suitable for 10BASE-T, 100BASE-TX Fast Ethernet and 1000BASE-T / 1000BASE-TX (Gigabit Ethernet).
Technical Features
- Class: Cat 6
- Type: U/UTP Cat.6 CU PVC 24AWG HD-PE
- Comply with TIA/EIA-568B.2-1
- Polyehtylene conductor insulation, 0,94mm diameter
- Outer sheath: material: PVC, diameter (mm): 5.7 ± 0,2, thickness (mm): 0,52 ± 0,05
- Conductor: material: HD-PE, diameter (mm): 0.52 ± 0.02, type: AWG 24, isolation material: Polyehtylene, diameter (mm): 0,94
- Filler: Polyehtylene
- Nominal impedance Ohm: 100 ± 15
- Operating temperature °C -40 … 75
- Capacitance Unbalance: 330pF/100m
- Delay Skew: < 45nS
- Nominal Velocity of Propagation: 69%
- Conductor Resistance: < 9.38 /100m
- Mutual Capacitance: < 5.6nF/100m
- Resistance Unbalance: 5% Max
- Color: Grey
- Packing: Reel 305m (pull box), with cable consumption indicator
- Packing Quantity: 1 pc / 305m
| Weight | 12.3 kg |
|---|---|
| LAN Category | Cat6 |
| LAN Type | UTP |
| Manufacturer | D-Link |
| Length | 305.00m |
