E12S Video Door Phone

Model: E12S
In Stock
148,50
In Stock
1 Working Day Delivery ACS
Speedy and reliable parcel delivery!
Categories: ,

Perfect Doorphone choice for daily life

Real time 2-way talk
Live camera viewing
Cloud or Local based storage
Rated for outdoor use
Mobile app compatible

Size: 146x70x23mm



Description

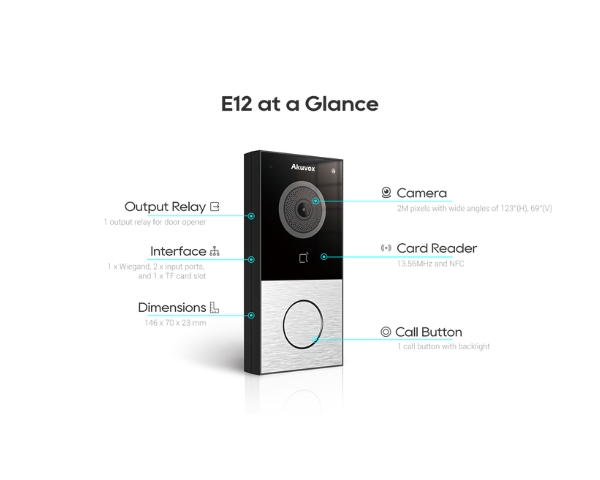

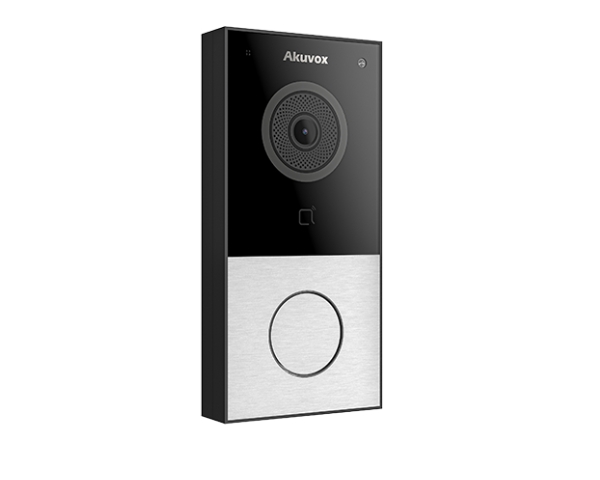

E12S Video Door Phone




E12S Compact SIP Video Door Phone provided by AKUVOX

Physical & Power

Physical & Power

Audio

Video

Camera: 2M pixels, automatic lighting

Button: 1 call button with backlight

Wiegand port: Support

RF card reader: 13.56MHz

Light sensor: 1

Relays out: 1

Inputs: 2

Micro SD card slot: 1

Microphone: -36dB

Speaker: 8Ω / 1.5W

Ethernet port: RJ45, 10/100Mbps adaptive

BLE: Yes

Vandal alarm: Yes

Power: 12V / 1A

802.3af Power-over-Ethernet

12V DC connector (if not using PoE)

Water-proof & Dust-proof: IP65

Installation: Wall-mounted

Size: 146x70x23mm

Audio format: SIP v1 (RFC2543), SIP v2 (RFC3261)

Narrowband audio codec: G.711a, G.711μ, G.729

Broadband audio codec: G.722

DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info

Echo Cancellation

Voice Activation Detection

Comfort Noise Generator

Sensor: 1/2.7”, CMOS

Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p

Video codec: H.264, H.265

Video resolution: up to 1920x1080p

Max. image transfer rate: 1080p – 25fps

Viewing angle: 123°(H) / 69°(V)

White LEDs for picture lighting during dark hours with internal light sensor





Door Entry Feature

Networking Protocols

Deployment & Maintenance

Relays controlled individually by DTMF tones

Camera permanently operational

Auto-night mode with LED illumination

White balance: auto

Minimum illumination: 0.1LUX



IPv4, HTTP, HTTPS, FTP, SNMP,

DNS, NTP, RTSP, RTP, TCP, UDP,

ICMP, DHCP, ARP

Auto-Provisioning Web management portal Configuration backup / restore Entry log export Access table export / import Firmware upgrade System logs (include door access logs)

Additional information

Dimensions 14,6 × 7 × 2,3 cm
AKUVOX

Door Bell

Brand

Akuvox
