RS461404 LC/APC Single Mode Mechanical Connector
Fiber Optic Fast Connector LC/APC
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

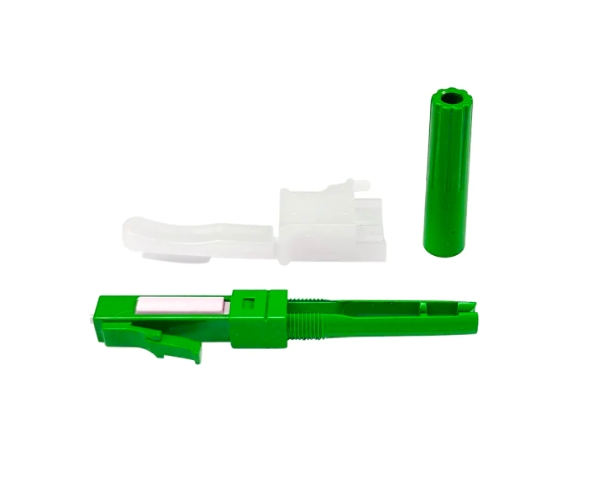

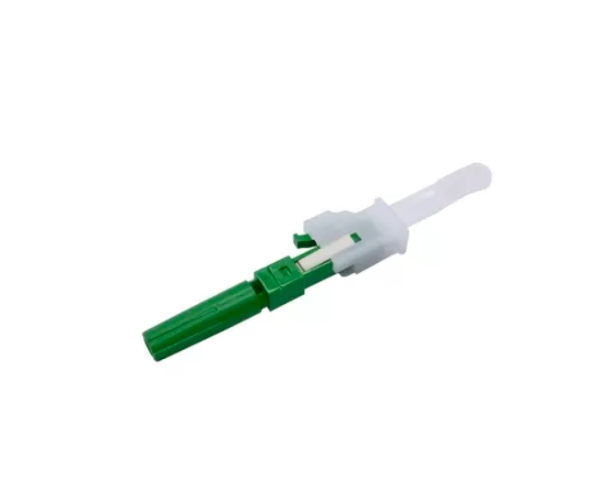

The LC APC fiber optic connector is a single mode 9/125μm OS1/OS2 simplex fiber connector, compatible with 250µm and 900µm optical fibers, and 0.9mm, 2mm, and 3mm cordage. Each connector with separate boot kits is available for 0.9 and 2.0mm diameter style cables and the length fixing device is to ensure stripping fiber in the right range.
The field-installable connector is a factory no polished connector that eliminates the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub, and a proprietary index-matching gel combine to offer an immediate low-loss termination. Each connector is color-coded per industry-standard requirements to aid in identification during and after installation. It provides an ideal solution for optical cabling inside buildings and floors for LAN & CCTV applications and with the expansion of FTTH.
Please note that 0.9mm, 2.0mm, and 3.0mm diameter are for the same usage. If 0.9mm or 2.0mm is needed, just install the corresponding black boot kit.
Product Highlights
- No-polished Ferrule Reduces Termination Time
- Mechanical Splice Ensures Fast Field Installation
- Up to Two Re-terminations for Lower Installed Costs
- 0.35dB Low Insertion Loss Provides Optimum Performance
- Rapid Deployment for MACs in LAN/WAN and FTTx Deployment
Technical Details
- Connector Type: LC APC
- Body Style: Simplex
- Ferrule Material: Ceramic
- Fiber Mode: 9/125μm Single Mode
- Insertion Loss: ≤0.35dB
- Return Loss: ≥60dB
- Housing Color: Green
- Boot Color: Green
- Cable Diameters: 0.9/3.0mm
- Temperature: Storage -40 to 85°C (-40 to 185℉)
- Operating: -20 to 75°C (-4 to 167℉)
| Weight | 0.01 kg |
|---|---|
| Manufacturer | RS |
| Fiber Cable Connector | LC/APC |
| Fiber Mode | Single Mode |
