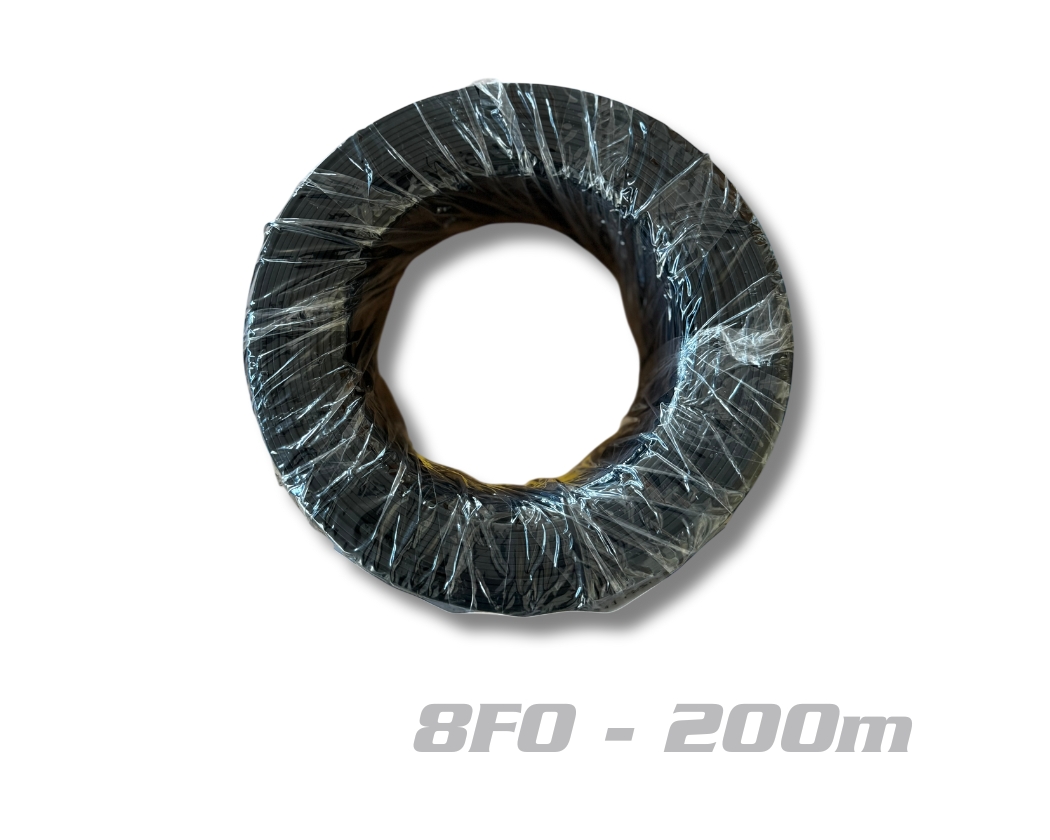

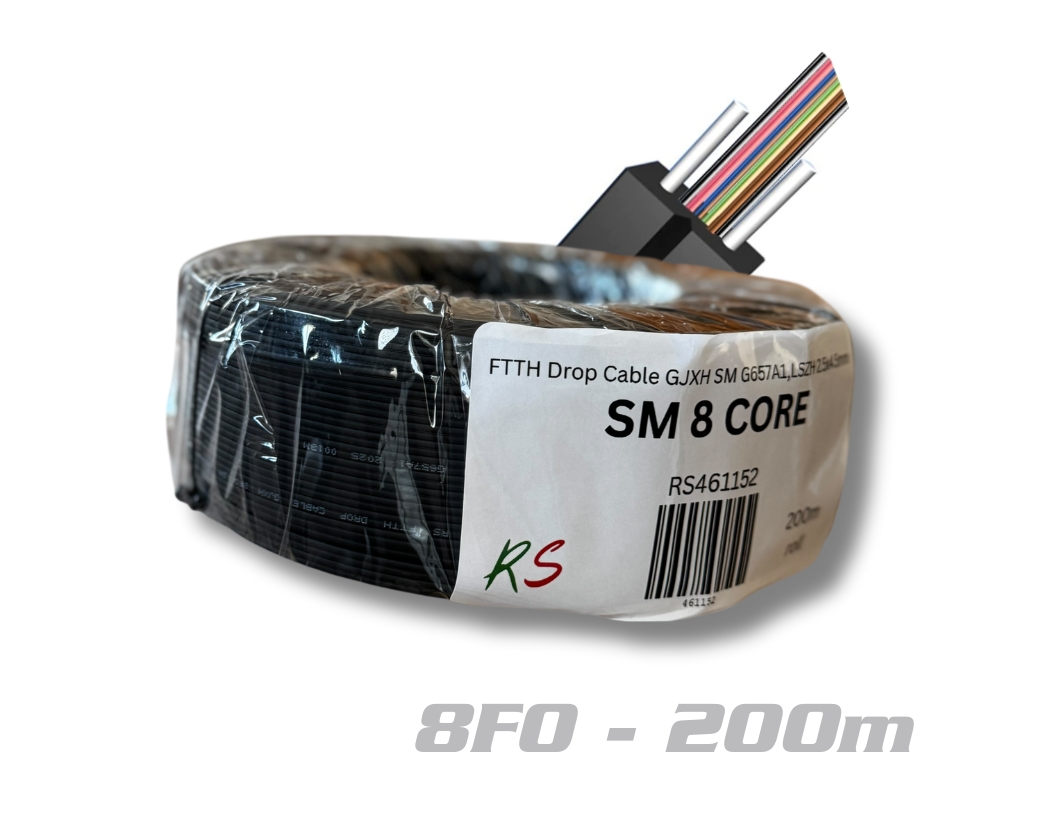

RS461152 FTTH 8 core Drop Cable GJXH SM 200m ROLL
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

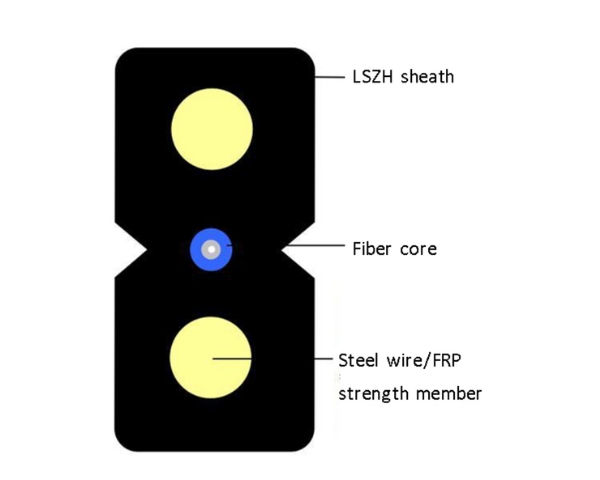

RS461152 Fiber Drop Cable Loose Tube 8 Core Single Mode has two parallel FRP/steel wire strength members ensure good performance of crush resistance to protect the fiber. With its Novel flute design, easily strip and splice, simplify the installation and maintenance. It features Low smoke zero halogen and flame retardant sheath (2.5±0.2)x(4.5±0.2)mm.
It is designed for reliable fiber-to-the-home (FTTH) installations, delivering stable, high-speed internet and TV connections. Built with single-mode optical fiber, it ensures low attenuation and long-distance signal transmission, making it an excellent choice for residential, commercial, and telecom projects.
Technical Features:
- 8 Core Single-Mode Fiber – supports high-bandwidth and long-distance transmission.
- GJXH Structure – flat drop cable design for easy indoor/outdoor routing.
- Durable Sheath – strong outer jacket for enhanced protection against bending and mechanical stress.
- Stable Performance – low attenuation for consistent, high-quality data and video transmission.
- Easy Installation – lightweight, compact, and flexible for FTTH deployments.
- Wide Application – ideal for FTTH networks, building cabling, and telecom access projects.
Technical Specifications
- Cable Length on Roll:200 m
- No. of fibers: 8
- Fiber type 9/125 (G657A1)
- Strength Member: Steel Wire
- Cable Size: 2.5×4.5 mm
- Cable Jacket: LSZH flame retardant sheath
- Attenuation dB/Km < 0.35 (1310 nm); < 0,22 (1550 nm)
- Fiber Cores Type: Loose Tube
- Bending radius without Tension:10 x Cable φ
- Bending radius with Tension:20 x Cable φ
- Oper. temperature C -20…+60
- Color: Black
- Cable Application: Indoor/Outdoor
| Weight | 2 kg |
|---|
