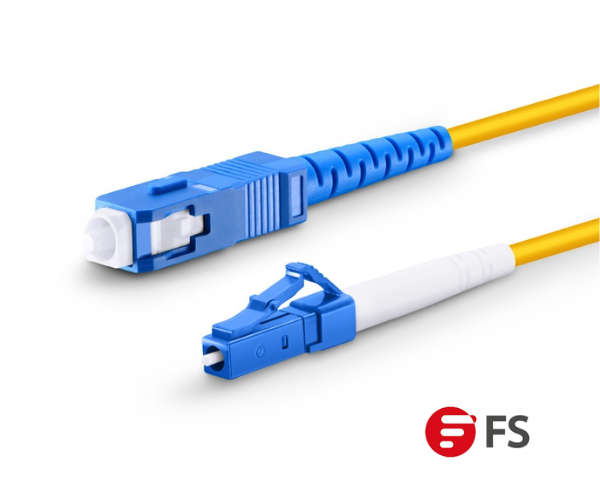

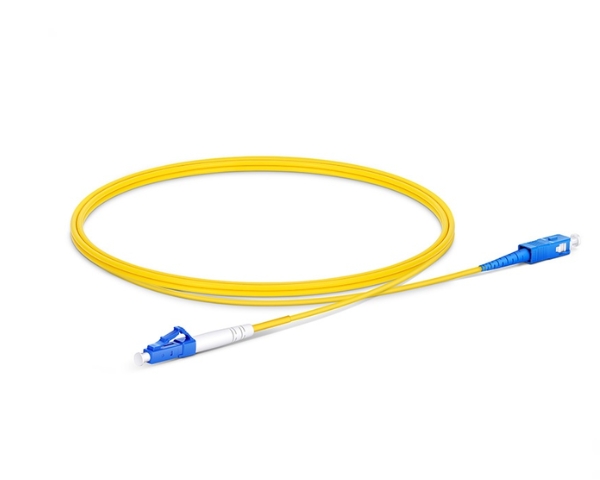

LC UPC to SC UPC Simplex Single Mode FS

Model: 40459-40469
SKU: 46-07-(0017-0018)
In Stock
6,19 6,67
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
1 Working Day Delivery ACS
Speedy and reliable parcel delivery!
  • PVC (Riser) Flame-retardant Jacket
  • Precision Zirconia Ferrule Connectors Ensure Low Loss
  • G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
  • Optical Testing Ensures Network Performance
  • Compliant to TIA-604 (FOCIS)


High Quality and Cost-effective 9/125μm Single Mode Bend Insensitive Fiber Optic Cable

The 9/125μm OS2 single mode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.

This fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.

Connector Type:  LC UPC to SC UPC
Fiber Grade:  G.657.A1 (Compatible with G.652.D)
Fiber Mode : OS2 9/125μm
Wavelength: 1310/1550nm
Insertion Loss: ≤0.3dB
Return Loss : ≥50dB
Min. Bend Radius : (Fiber Core) 10mm
Min. Bend Radius (Fiber Cable) : 10/5D (Dynamic/Static)
Attenuation at 1310 nm : 0.36 dB/km
Attenuation at  1550 nm : 0.22 dB/km
Fiber Count : Simplex
Cable Diameter: 2.0mm
Cable Jacket: PVC
Polarity: A (Tx) to B (Rx)
Operating Temperature : -20~70°C
Storage Temperature : -40~80°C

Additional information


1m, 2m

Connector A:


Connector B


Fiber Count


Fiber Mode

Single Mode



Cable Type

Patch Cord
