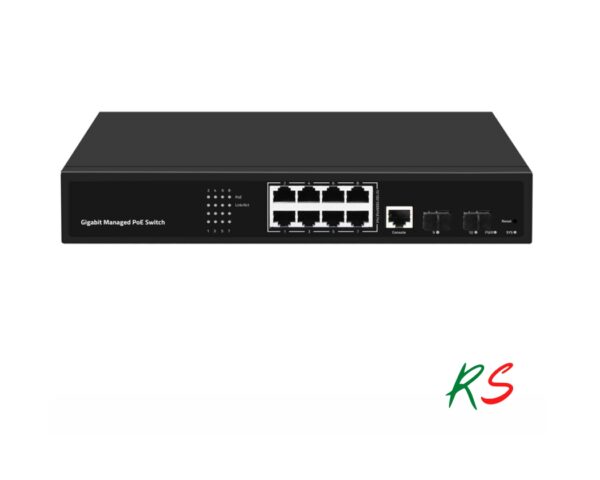

RS 10-Port Gigabit Managed PoE Switch SST-MP8ET2S
- 16* 10/100/1000M PoE Ports+2*Gigabit Uplink+2* Gigabit SFP Ports；
- Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab Standard;
- Ethernet Ports support 10/100/1000M self- adaptive;
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
The 10-Port Gigabit Managed PoE Switch delivers advanced Layer 3 management, 8 Gigabit PoE+ ports, 2 Gigabit SFP uplinks and comprehensive security features. Designed for enterprise, surveillance and industrial networks, it supports VLANs, LACP, STP/RSTP/MSTP, IPv4/IPv6 routing, SNMP management and PoE monitoring.
Technical Features
- 8 × Gigabit PoE+ Ports
- 2 × Gigabit SFP Uplink Ports
- 1 × RJ45 Console Port
- Layer 3 Managed Switch
- IEEE802.3af/at PoE Support
- 110W Total PoE Budget
- IPv4 & IPv6 Support
- WEB, CLI, SSH, SNMP Management
- PoE Watchdog Function
- 802.1X Authentication
- VLAN, QoS and LACP Support
- Fanless Rackmount Design
Technical Details
- Model: SST-MP8ET2S
- AC100-240V, 50/60Hz
- Interfaces
- 8 × 10/100/1000Mbps PoE Ports
- 2 × 1000Mbps SFP Ports
- 1 × RJ45 Console Port
- Bandwidth: 20Gbps
- Packet Forwarding Rate: 14.88Mpps
- DDR SDRAM: 128MByte
- Flash Memory: 16MByte
- Packet Buffer Memory: 4Mbit
- MAC Address Table: 8K
- Jumbo Frame: 10KBytes
- VLANs
- VLAN Range: 1-4094
- Maximum Active VLANs: 256
- Network Protocols
- IEEE802.3
- IEEE802.3i
- IEEE802.3u
- IEEE802.3ab
- IEEE802.3z
- IEEE802.3ad
- IEEE802.3x
- IEEE802.1ab
- IEEE802.1p
- IEEE802.1q
- IEEE802.1x
- IEEE802.1d
- IEEE802.1s
- IEEE802.1w
- PoE Standards
- IEEE802.3af (15.4W)
- IEEE802.3at (30W)
- Industry Standards
- EMS: EN61000-4-2 (ESD)
- EMS: EN61000-4-5 (Surge)
- Network Media
- 10BASE-T: Cat3, Cat4, Cat5 Or Above UTP (≤100m)
- 100BASE-TX: Cat5 Or Above UTP (≤100m)
- 1000BASE-TX: Cat5 Or Above UTP (≤100m)
- Fiber Media
- Multimode Fiber: 50/125, 62.5/125, 100/140μm
- Single Mode Fiber: 8/125, 8.7/125, 9/125, 10/125μm
- Certifications
- CE
- FCC
- RoHS
- Environmental
- Operating Temperature: -10°C ~ 50°C
- Storage Temperature: -40°C ~ 70°C
- Operating Humidity: 10% ~ 90%, Non-Condensing
- Storage Humidity: 5% ~ 95%, Non-Condensing
- LED Indicators
- PWR
- SYS
- PoE
- Link/ACT
- PWR Status
- Lighting: Powered
- Un-Light: No Power
- SYS Status
- Flashing: System Start-Up
- Lighting: System Running
- PoE Status
- Lighting: PoE On
- Un-Light: PoE Off
- Link/ACT Status
- Lighting: Link Connection
- Flashing: Data Transmission
- Un-Light: Link Disconnect
- Reset Function
- Short Press: Restart
- Long Press 5 Seconds: Restore Factory Settings
- Physical Specifications
- Product Dimensions: 268 × 181 × 44mm
- Package Dimensions: 312 × 262 × 84mm
- Product Net Weight: 1.08kg
- Product Gross Weight: 1.62kg
- Power Specifications
- Input Voltage: AC100-240V / 50-60Hz
- Power Supply: 52V 2.3A
- Power Consumption
- Product Power: Maximum 10W
- PoE Power: Maximum 110W
- L3 Function
- IPv4
- IPv4 VLAN Interface
- IPv4 Static Routes
- ARP
- IPv6
- IPv6 VLAN Interface
- IPv6 Static Routes
- IPv6 ND
- L2 Function
- Port
- Port Switch
- Port Description
- Port Speed
- Port Duplex
- Port Flow Control
- Jumbo, Up to 10K
- EEE
- Fiber Module (DDM)
- Link Aggregation
- Supports load balance policy based on MAC and IP-MAC
- Static and Dynamic Group
- Supports LACP
- Up to 8 groups
- Storm Control
- Broadcast
- Unknown Multicast
- Unknown Unicast
- Port Mirroring
- One to one monitor
- Many to one monitor
- Ingress / Egress / Both
- Up to 4 session groups
- Port Security
- MAC Address Constraints
- Port Security MAC Address
- Protect / Restrict / Shutdown
- Port Isolation
- Port Rate-limit
- Loopback Detection
- VLAN
- Access / Trunk / Hybrid
- VLAN Tunnel (Q-in-Q Tunnel)
- Configurable VID from 1–4094
- Max. 256 static VLAN groups
- Voice VLAN
- MAC VLAN
- Surveillance VLAN
- Protocol VLAN
- GVRP
- MAC Address
- Dynamic Address
- Static Address
- Filtering Address
- Spanning Tree Protocol
- STP / RSTP / MSTP
- BPDU Filter
- BPDU Guard
- Edge Port
- LLDP
- LLDP
- LLDP MED
- Multicast
- IGMP Snooping
- IGMP V1 / V2 / V3
- Router Port
- Static IGMP Group Address
- IGMP Groups Filtering
- Querier
- MLD Snooping
- MVR
- QoS
- Traffic classification based, Strict Priority and WRR
- Port Priority
- 802.1P Priority
- IP TOS Priority
- IP DSCP Priority
- Supports up to 8 queues per port
- Priority Remarking
- PoE
- PoE Configuration
- PoE Temperature
- PoE Type / Level / Power / Voltage / Current
- PoE Switch
- PoE Watchdog
- PoE Power AF/AT Adaptation
- PoE Schedule
- PoE Port Timer Reboot
- Port
- Services
- DHCP
- DHCP Server
- IP Pool
- Static Binding
- DHCP Relay
- Access Protocol
- HTTP
- HTTPS
- Telnet
- SSHv2
- Manager ACL
- Session Timeout
- Password Retry Count
- Silent Time
- DHCP
- Security
- AAA
- RADIUS
- TACACS+
- 802.1X based on port / MAC / local / WEB
- DHCP Snooping
- Global / VLAN
- Option 82
- Circuit ID
- IP Source Guard
- Dynamic ARP Inspection
- DoS
- ACL
- MAC ACL
- IPv4 ACL
- IPv6 ACL
- AAA
- Diagnostics
- Syslog
- Logging Message
- Remote Server
- Ping
- Traceroute
- Copper Test
- UDLD
- Syslog
- Management
- Manager Access
- Console
- HTTP / HTTPS
- Telnet
- SSH
- SNMP
- Manager IP
- Static Address
- DHCP Client
- Supports IPv4 and IPv6 Address
- Manager VLAN
- DNS
- Time Synchronization
- SNTP
- Manual Time
- SNMP
- V1 / V2C / V3
- Community
- V3 User
- Group
- Trap Host
- SNMP MIB
- RFC 1213 MIB-II
- RFC 1493 Bridge MIB
- RFC 1643 Ethernet MIB
- RFC 2819 RMON MIB Groups 1, 2, 3 and 9
- RFC 2863 Interface MIB
- LLDP
- Private MIB
- RMON
- Statistics
- History
- Event
- Alarm
- User
- Manager Access
- Firmware
- Firmware Upgrade
- Configuration Upload and Download
- Save
- Restart
- Factory Defaults
- Standards Compliance
- IEEE 802.3x Flow Control and Back Pressure
- IEEE 802.3ad Port Trunk with LACP
- IEEE 802.1D Spanning Tree Protocol
- IEEE 802.1w Rapid Spanning Tree Protocol
- IEEE 802.1s Multiple Spanning Tree Protocol
- IEEE 802.1p Class of Service
- IEEE 802.1Q VLAN Tagging
- IEEE 802.1x Port Authentication Network Control
- IEEE 802.1ab LLDP
- IEEE 802.3af Power over Ethernet
- IEEE 802.3at Power over Ethernet Plus
- RFC 768 UDP
- RFC 793 TFTP
- RFC 791 IP
- RFC 792 ICMP
- RFC 2068 HTTP
- RFC 1112 IGMP v1
- RFC 2236 IGMP v2
- RFC 3376 IGMP v3
- RFC 2710 MLD v1
- RFC 3810 MLD v2
- IPv4
| Manufacturer | RS |
|---|---|
| Switch Type | Managed |
| Speed | Gigabit |
| POE Budget | 110W |
| POE Ports | 8 |
| POE Switch | Yes |
| Power over Ethernet (PoE) | PoE |
| SFP Ports | With SFP Ports |
| No of SFP Ports | 2 |
| Mount Type | Desktop |
| Device Total Ports | 10 |
Specifications
|
Input/output Port |
|
|
AC INPUT |
AC100-240V，50/60Hz |
|
Ethernet Port |
8 * 10/100/1000Mbps PoE Port 2* 1000Mbps SFP Port 1 * RJ45 Console Port |
|
Performance |
|
|
Bandwidth |
20Gbps |
|
Packet Forwarding rate |
14.88Mpps |
|
DDR SDRAM |
128MByte |
|
Flash Memory |
16MByte |
|
Packet Buffer Memory |
4Mbit |
|
MAC Address |
8K |
|
Jumbo frame |
10Kbytes |
|
VLANs |
VLAN range 1-4094, with a maximum active VLAN of 256 |
|
Standard |
|
|
Network Protocols |
IEEE 802.3：Ethernet MAC Protocol IEEE 802.3i：10BASE-T Ethernet IEEE 802.3u：100BASE-TX Fast Ethernet IEEE 802.3ab：1000BASE-T Gigabit Ethernet IEEE 802.3z：1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ad：Standard method for performing link aggregation IEEE 802.3x：Flow control IEEE 802.1ab： LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1p：LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function) IEEE 802.1q：VLAN Bridge Operation IEEE 802.1x：Client/Server Access Control and Authentication Protocol IEEE 802.1d：STP IEEE 802.1s：MSTP IEEE 802.1w：RSTP |
|
PoE protocol |
IEEE802.3af （15.4 W） IEEE802.3at （30 W） |
|
Industry Standard |
EMS: EN61000-4-2 (ESD) EN61000-4-5 (Surge) |
|
Network Media |
10BASE-T: Cat3、4、5 or above UTP(≤100 M) 100BASE-TX: Cat5 or above UTP(≤100 M) 1000BASE-TX: Cat5 or above UTP(≤100 M) |
|
Fiber Medium |
Multi-mode Fiber: 50/125、62.5/125、100/140um Single-mode Fiber: 8/125、8.7/125、9/125、10/125um |
|
Certification |
|
|
Safety Certificate |
CE、FCC、RoHS |
|
Environmental standards |
|
|
Working Environment |
Operating temperature: -10~50°C Storage temperature: -40~70°C Operating Humidity: 10%~90%, No condensation Storage Humidity: 5%~95%, No condensation |
|
Function indication |
|
|
Indicator |
PWR, SYS, PoE, Link/ACT |
|
PWR（Power Indicator） |
Lighting：Powered Un-Light：No Power |
|
SYS（System Indicator） |
Flashing: System Start-up Lighting: System Running |
|
PoE |
Lighting：PoE on Un-Light：PoE off |
|
Link/ACT |
Lighting: Link connection Flashing: Data transmission Un-Light: Link disconnect |
|
Reset |
Short press restart, long press 5 seconds to restore factory Settings |
|
Physical specifications |
|
|
Product Information |
Product Dimensions: 268*181*44mm Package Dimensions: 312*262*84mm Product N.W: 1.08KG Product G.W: 1.62KG |
|
Packing Information |
Carton Dimensions: 540*435*332mm Packing Qantity: 10 pcs Packing weight: 17.2KG |
|
Voltage |
Input Voltage: AC100-240V/50-60Hz Power supply: 52V2.3A |
|
power |
Product power: maximum 10W POE power: maximum 110W |
|
Packing list |
1. Ethernet switch: 1 Set 2. Instruction manual: 1 PCS 3. Certificate: 1 PCS 4. Power cord: 1PCS 5. Serial cable: 1PCS 6. Brackets: 1 pair |
【Software function】
|
L3 Function |
|
|
IPv4 |
IPv4 VLAN Interface |
|
IPv4 Static Routes |
|
|
ARP |
|
|
IPv6 |
IPv6 VLAN Interface |
|
IPv6 Static Routes |
|
|
IPv6 ND |
|
|
L2 Function |
|
|
Port |
Port Switch |
|
Port Description |
|
|
Port Speed |
|
|
Port Duplex |
|
|
Port Flow Control |
|
|
Jumbo, Up to 10K |
|
|
EEE |
|
|
Fiber Module(DDM) |
|
|
Link Aggregation |
Supports load balance policy; |
|
Static and Dynamic Group |
|
|
Supports LACP |
|
|
Up to 8 groups |
|
|
Storm Control |
Boardcast |
|
Unknown Multicast |
|
|
Unknown Unicast |
|
|
Port Mirroring |
One to one monitor |
|
Many to one monitor |
|
|
Ingress/Egress/Both |
|
|
Up to 4 session groups |
|
|
Port Security |
MAC Address Constraints |
|
Port Security MAC Address |
|
|
Protect/Restrict/Shutdown |
|
|
Port Isolation |
|
|
Port Rate-limit |
|
|
Loopback Detection |
|
|
VLAN |
Access/Trunk/Hybrid |
|
VLAN Tunnel （Q-in-Q Tunnel） |
|
|
Congurable VID from 1 – 4094; |
|
|
Voice VLAN |
|
|
MAC VLAN |
|
|
Surveillance VLAN |
|
|
Protocol VLAN |
|
|
GVRP |
|
|
MAC Address |
Dynamic Address |
|
Static Address |
|
|
Filtering Address |
|
|
Spnning Tree Protocol |
STP/RSTP/MSTP |
|
BPDU Filter |
|
|
BPDU Guard |
|
|
Edge Port |
|
|
LLDP |
LLDP |
|
LLDP MED |
|
|
Multicast |
IGMP Snnoping |
|
IGMP V1/V2/V3 |
|
|
Router Port |
|
|
Static IGMP group address |
|
|
IGMP groups filtering |
|
|
Querier |
|
|
MLD Snooping |
|
|
MVR |
|
|
QoS |
Traffic classification based, Strict priority and WRR |
|
Port Priority |
|
|
802.1P Priority |
|
|
IP TOS Priority |
|
|
IP DSCP Priority |
|
|
Supports up to 8 queues per port |
|
|
Priority Remarking |
|
|
PoE |
|
|
PoE Configuration |
PoE Temperature |
|
PoE Type/Level/Power/Voltage/Current |
|
|
PoE Switch |
|
|
PoE Watchdog |
|
|
PoE power AF/AT adaptation |
|
|
PoE Schedule |
|
|
PoE Port Timer Reboot |
|
|
Services |
|
|
DHCP |
DHCP Server |
|
IP Pool |
|
|
Static Binding |
|
|
DHCP Relay |
|
|
Access Protocol |
HTTP |
|
HTTPS |
|
|
Telnet |
|
|
SSHv2 |
|
|
Manager ACL |
|
|
Session Timeout |
|
|
Password Retry Count |
|
|
Silent Time |
|
|
Security |
|
|
AAA |
RADIUS |
|
TACACS+ |
|
|
802.1X |
|
|
Base on port/MAC/local/WEB |
|
|
DHCP Snooping |
Global/VLAN |
|
Option 82 |
|
|
Circuit ID |
|
|
IP Source Guard |
|
|
Dynamic ARP Inspection |
|
|
DoS |
|
|
ACL |
MAC ACL |
|
IPv4 ACL |
|
|
IPv6 ACL |
|
|
Diagnostics |
|
|
Syslog |
Logging Message |
|
Remote Server |
|
|
Ping |
|
|
Traceroute |
|
|
Copper Test |
|
|
UDLD |
|
|
Managemnet |
|
|
Manager Access |
Console |
|
HTTP/HTTPS |
|
|
Telnet |
|
|
SSH |
|
|
SNMP |
|
|
Manager IP |
Static Address |
|
DHCP Client |
|
|
Supports IPv4 and IPv6 address |
|
|
Manager VLAN |
|
|
DNS |
|
|
Time Synchronization |
SNTP |
|
Manual Time |
|
|
SNMP |
V1/V2C/V3 |
|
Community |
|
|
V3 User |
|
|
Group |
|
|
Trap Host |
|
|
SNMP MIB |
RFC 1213 MIB-II |
|
RFC 1493 Bridge MIB |
|
|
RFC 1643 Ethernet MIB |
|
|
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) |
|
|
RFC 2863 Interface MIB |
|
|
LLDP |
|
|
Private MIB |
|
|
RMON |
Statistics |
|
History |
|
|
Event |
|
|
Alarm |
|
|
User |
|
|
Firmware |
Firmware Upgarde |
|
Configuration |
Upload and download |
|
Save |
|
|
Restart |
|
|
Factory Defaults |
|
|
Standards Compliance |
|
|
IEEE 802.3x flow control and back pressure |
|
|
IEEE 802.3ad port trunk with LACP |
|
|
IEEE 802.1D Spanning Tree Protocol |
|
|
IEEE 802.1w Rapid Spanning Tree Protocol |
|
|
IEEE 802.1s Multiple Spanning Tree Protocol |
|
|
IEEE 802.1p Class of Service |
|
|
IEEE 802.1Q VLAN tagging |
|
|
IEEE 802.1x Port Authentication Network Control |
|
|
IEEE 802.1ab LLDP |
|
|
IEEE 802.3af Power over Ethernet |
|
|
IEEE 802.3at Power over Ethernet Plus |
|
|
RFC 768 UDP |
|
|
RFC 793 TFTP |
|
|
RFC 791 IP |
|
|
RFC 792 ICMP |
|
|
RFC 2068 HTTP |
|
|
RFC 1112 IGMP v1 |
|
|
RFC 2236 IGMP v2 |
|
|
RFC 3376 IGMP v3 |
|
|
RFC 2710 MLD v1 |
|
|
FRC 3810 MLD v2 |
|
Shipping Info
We deliver only in Cyprus.
- Pick up from our store: Asomatou 9A, Egkomi, Nicosia, Cyprus 2414
- Pick up from nearest AKIS EXPRESS or ACS: 1–3 working days
- Delivery to your address: 3–7 working days. For rural areas, an extra delivery charge may apply. In this case, we will contact you upon receiving your order.
All orders are processed and shipped at 09:00 AM or 12:00 PM on working weekdays.
Orders placed on Friday afternoon or Weekend will be dispatched on Monday. Please note that we are unable to guarantee a specific delivery time for when your order will be delivered. We do not deliver on weekends and public holidays.
For any further queries on shipping and delivery, please contact Customer Services at [email protected] or call us at 22352771.
Related Products
