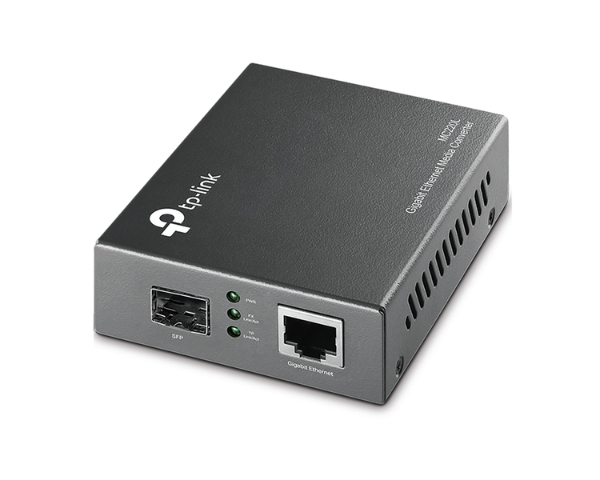

MC220L Gigabit Ethernet Media Converter

Model: MC220L
SKU: 09-20-0019
In Stock
53,55
In Stock
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
1 Working Day Delivery ACS
Speedy and reliable parcel delivery!
SKU: 09-20-0019 Categories: ,

Download PDF

  • 10/100/1000Mbps Auto-Negotiation
  • SFP

Description

MC220L Tp-Link Gigabit Ethernet Media Converter

  • 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Complies with IEEE 802.3ab and IEEE 802.3z
  • SFP port supports hot-swappable



The MC220L is a media converter designed to convert 1000BASE-SX/LX fiber to 10/100/1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T standards, the MC220L communicates with any TP-Link standard gigabit SFP fiber module*.

SKU: 09-20-0019

Standards and Protocols IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Basic Function Full Duplex Flow Control (IEEE 802.3x)
Extends fiber distance up to 0.5km for multi-mode fiber or up to 10km with single-mode fiber
Ports 1 x Gigabit SFP port
1 x 10/100/1000M RJ45 port (Auto MDI/MDIX)
Wave Length Depends on the used SFP module
Network Media 1000BASE-X Multi-mode/Single-mode SFP module
Network Media 1000BASE-T UTP category 5, 5e, 6 cable (maxium 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
LED Indicators PWR, Link/Act
Dimensions (W*D*H) 3.7 x 2.9 x 1.1 in.
(94 x 73 x 27 mm)
Power Supply External Power Adapter (9VDC/ 0.6A)
Max Power Consumption 1.7 W
Safety & Emission FCC, CE, RoHS
Package Contents • Media Converter MC220L
• Power Adapter
• Installation Guide
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
