Omada 6-Port Gigabit Switch with 4-Port PoE+ SG-2206MP
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
The TP-Link TL-SG1428PE is a 28-Port Easy Smart Gigabit PoE+ Switch featuring 24 PoE+ ports, 2 Gigabit uplink ports and 2 SFP uplinks. With a powerful 250W PoE budget, VLAN support, QoS prioritization and PoE Auto Recovery, it is ideal for CCTV systems, wireless networks and business environments.
Technical Features
- 24 Gigabit PoE+ Ports
- 2 Gigabit RJ45 Uplink Ports
- 2 Gigabit SFP Uplink Ports
- 250W Total PoE Budget
- Up To 30W Per PoE+ Port
- Easy Smart Management
- PoE Auto Recovery
- VLAN Support
- QoS Traffic Prioritization
- IGMP Snooping
- Link Aggregation
- Rackmount Design
Technical Details
- Standards and Protocols: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1q, IEEE802.1p
- Interfaces: 26 × 10/100/1000Mbps RJ45 Ports
- SFP Ports: 2 × Gigabit SFP Ports
- Network Media:
- 10BASE-T: UTP Category 3, 4, 5 Cable, EIA/TIA-568 100Ω STP (Maximum 100m)
- 100BASE-TX: UTP Category 5, 5e Cable, EIA/TIA-568 100Ω STP (Maximum 100m)
- 1000BASE-T: UTP Category 5, 5e, 6 Or Above Cable, EIA/TIA-568 100Ω STP (Maximum 100m)
- 1000BASE-X: MMF, SMF
- Fan Quantity: 2
- Physical Security Lock: Yes
- Power Supply: 100-240V AC, 50/60Hz
- PoE Standard: IEEE802.3af/at
- PoE+ Ports: 24
- PoE Budget: 250W
- Dimensions: 440 × 220 × 44mm
- Mounting: 19″ 1U Rack Mountable
- Maximum Power Consumption: 27W (No PD Connected), 304.7W (With 250W PD Load)
- Maximum Heat Dissipation: 92.1 BTU/h (No PD Connected), 1039.0 BTU/h (With 250W PD Load)
- Switching Capacity: 56Gbps
- Packet Forwarding Rate: 41.7Mpps
- MAC Address Table: 8K
- Packet Buffer Memory: 4.1Mbit
- Jumbo Frame: 9KB
- Quality of Service:
- Port-Based Priority
- 802.1p Priority
- DSCP Priority
- 4 Priority Queues
- Rate Limit
- Storm Control
- L2 Features:
- IGMP Snooping V1/V2/V3
- Static Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
- PoE Auto Recovery
- VLAN Features:
- Supports Up To 32 VLANs Simultaneously
- MTU VLAN
- Port VLAN
- Tag VLAN
- Management Features:
- Web-Based GUI
- Easy Smart Configuration Utility
- Transmission Method: Store-And-Forward
- Certifications: CE, FCC, RoHS
- Operating Temperature: 0°C ~ 50°C
- Storage Temperature: -40°C ~ 70°C
- Operating Humidity: 10% ~ 90% Non-Condensing
- Storage Humidity: 5% ~ 90% Non-Condensing
Package Contents:
- TL-SG1428PE Switch
- Power Cord
- Installation Guide
- Rackmount Kit
- Rubber Feet
| Manufacturer | Omada TP-Link |
|---|---|
| Switch Type | Cloud Managed |
| POE Budget | 63W |
| POE Ports | 4 |
| Power over Ethernet (PoE) | PoE+ |
| No of SFP Ports | 1 |
| Speed | Gigabit |
| Device Total Ports | 5, 6 |
| SFP Ports | With SFP Ports |
| POE Switch | Yes |
| Mount Type | Desktop |
Specifications
| HARDWARE FEATURES | |
|---|---|

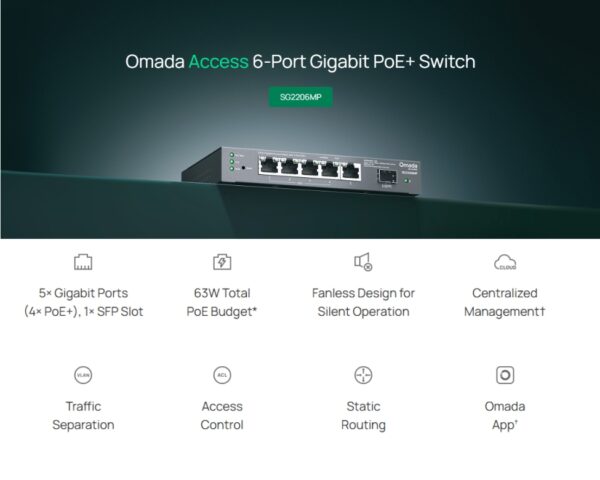

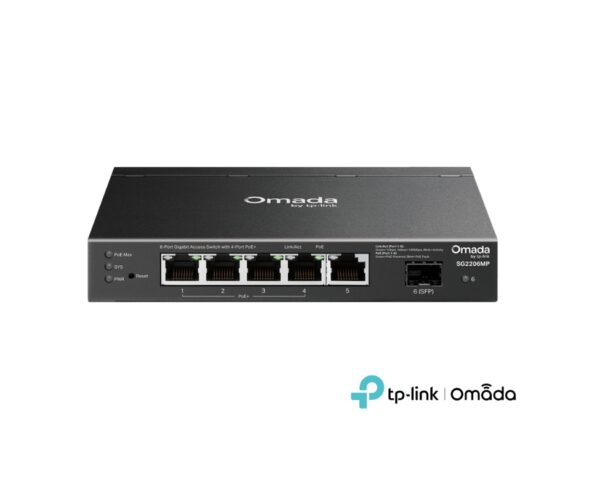

| Interface | • 4× 10/100/1000 Mbps PoE+ RJ45 Ports • 1× 10/100/1000 Mbps RJ45 Port • 1× Gigabit SFP Slot |
| Physical Security Lock | √ |

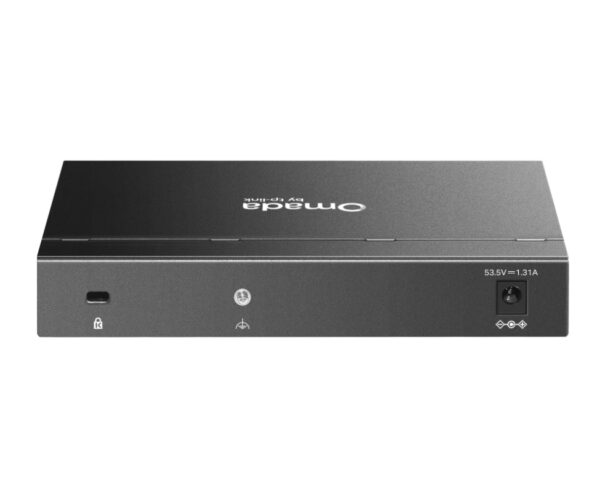

| Power Supply | 53.5 VDC / 1.31 A |

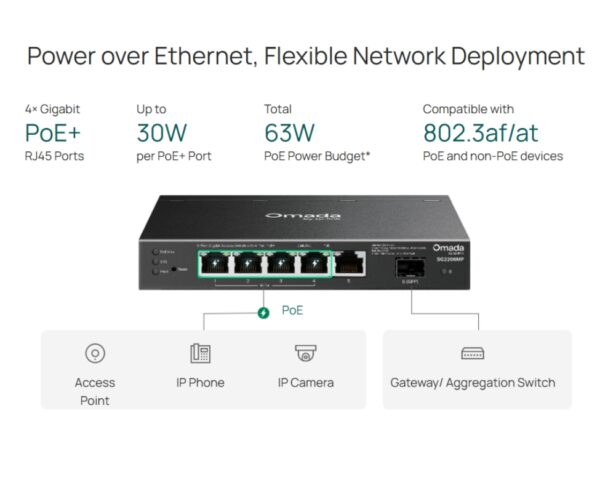

| PoE Ports (RJ45) | • Standard: 802.3at/af compliant • PoE+ Ports: 4 Ports • PoE Power Budget: 63 W* • Fast PoE • Perpetual PoE |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm) |

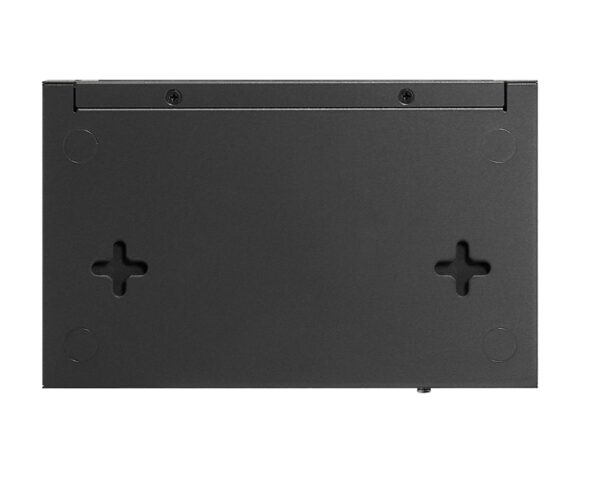

| Mounting | Desktop / Wall Mounting |
| Max. Power Consumption | 73.7 W (110V/60Hz) (with 63 W PD connected) |
| Max. Heat Dissipation | 250.4 BTU/hr (110V/60Hz) (with 63 W PD connected) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 12 Gbps |
| Packet Forwarding Rate | 8.93 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | • 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode – SP (Strict Priority) – WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control – Port/Flow based Rating Limit • Storm Control – Multiple Control Modes(kbps/ratio) – Broadcast/Multicast/Unknown-Unicast Control |
| L2 and L2+ Features | • 16 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 32 IPv4/IPv6 Static Routes • DHCP Server • DHCP Relay – DHCP Interface Relay – DHCP VLAN Relay • DHCP L2 Relay • Static ARP • Proxy ARP • Gratuitous ARP • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED • Spanning Tree – STP (802.1d) – RSTP (802.1w) – MSTP (802.1s) – STP Security: TC Protect, BPDU Filter/Protect, Root Protect |
| L2 Multicast | • 511 IPv4, IPv6 shared multicast groups • IGMP Snooping • Multicast VLAN Registration (MVR) • Multicast Filtering • Limited IP Multicast (256 profiles and 16 entries per profile) |
| Advanced Features | • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule† |
| VLAN | • VLAN Group – Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN: 16 Entries • Protocol VLAN • GVRP • Voice VLAN |
| Access Control List | • Support up to 230 entries • Time-Range • Time-based ACL • MAC ACL • IP ACL • IPv6 ACL • Combined ACL • Rule Operation: Permit/Deny • Policy Action – Mirroring – Redirect – Rate Limit – QoS Remark • ACL Rules Binding – Port Binding – VLAN Binding |
| Security | • IP-MAC-Port Binding • AAA • 802.1X – Port-based authentication – MAC (Host) based authentication – Authentication Method includes PAP/EAP-MD5 – MAB – Guest VLAN – Support Radius authentication and accountability • IP/IPv6-MAC Binding – 512 Binding Entries – DHCP Snooping – DHCPv6 Snooping – ARP Inspection – ND Detection – ND Snooping • IP Source Guard – 253 Entries – Source IP+Source MAC • IPv6 Source Guard – 183 Entries – Source IPv6 Address+Source MAC • DoS Defend • DHCP Filter • Static/Dynamic/Permanent Port Security – Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control – kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control |
| IPv6 | • IPv6 Static Routing and ACL • IPv6 Dual IPv4/IPv6 • IPv6 Interface • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications – DHCPv6 Client – Ping6 – Tracert6 – Telnet(v6) – IPv6 SNMP – IPv6 SSH – IPv6 SSL – Http/Https – IPv6 TFTP |
| MIBs | • MIB II (RFC1213) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIBs • RMON MIB(RFC1757, rmon 1,2,3,9) |
| Management Features | |
|---|---|
| Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |

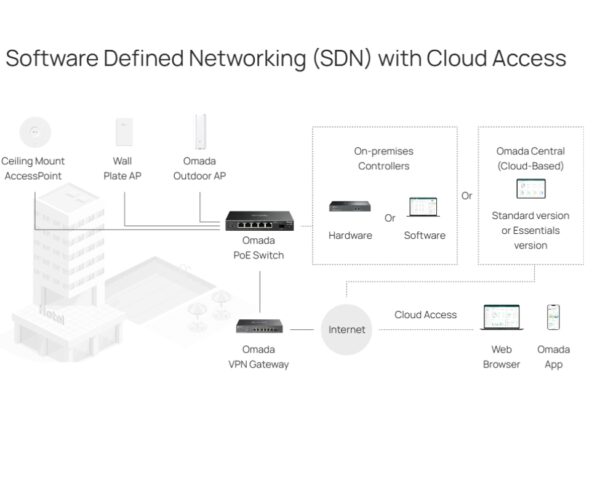

| Centralized Management | • Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later) • Omada Hardware Controller (Requires built-in version 5.15.20 or later) • Omada Software Controller (Requires built-in version 5.15.20 or later) |
| Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • IEEE 802.1az Energy Efficient Ethernet (EEE) • SNTP • System Log • Digital Diagnostic Monitoring (DDM) • Operation Administration and Maintenance (OAM) |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • SG2206MP • Power Adapter • Power Cord • Rackmount Kit • Rubber Feet • Installation Guide |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: -5–40 ℃ (23–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH, non-condensing • Storage Humidity: 5–90% RH, non-condensing |
