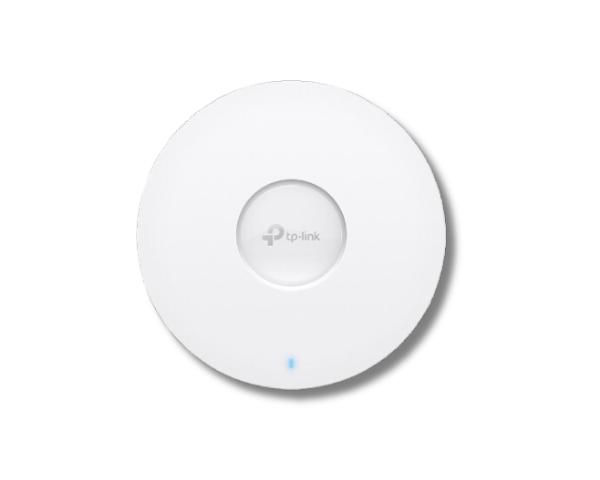

Omada TP-Link Wi-Fi 6 AP Ceiling Mount EAP653
- EAP653 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds
- Package does not include power supply!
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
The TP-Link Omada EAP653 is a high-performance AX3000 WiFi 6 access point designed for offices, hotels, schools, retail stores, and commercial environments. Featuring dual-band WiFi 6, Omada Mesh, seamless roaming, HE160 support, and centralized cloud management for fast and reliable wireless connectivity.
Technical Features
- AX3000 Dual-Band WiFi 6
- WiFi 6 Technology
- MU-MIMO Technology
- OFDMA Technology
- HE160 Support
- Omada Mesh
- Seamless Roaming
- Centralized Cloud Management
- Omada SDN Ready
- 802.3at PoE+
- Beamforming
- Airtime Fairness
- Band Steering
- Load Balancing
- Captive Portal
- Ceiling & Wall Mount Design
Highlights
- WiFi 6 speeds up to 2976Mbps
- Dual-band wireless performance with 2402Mbps on 5GHz and 574Mbps on 2.4GHz
- HE160 technology doubles bandwidth for higher throughput
- Supports Omada Mesh for flexible wireless deployments
- Seamless roaming for uninterrupted connectivity
- Centralized cloud management through Omada SDN
- MU-MIMO and OFDMA improve network capacity and efficiency
- Supports up to 16 SSIDs for network segmentation
- Powered via 802.3at PoE+ or optional 12V DC adapter
- Ultra-slim design ideal for modern commercial installations
Technical Details
- Wireless Standard : IEEE 802.11ax/ac/n/g/b/a
- WiFi Speed : 574Mbps (2.4GHz), 2402Mbps (5GHz), 2976Mbps Total
- Frequency Bands : 2.4GHz, 5GHz
- Ethernet Ports : 1 × Gigabit Ethernet Port
- Power Supply : 802.3at PoE+, 12V DC (Adapter Sold Separately)
- Power Consumption : 13.5W (EU), 14.7W (US)
- Antenna Configuration : Internal Omni Antennas, 2 × 4dBi (2.4GHz), 2 × 5dBi (5GHz)
- Wireless Technologies : WiFi 6, OFDMA, MU-MIMO, HE160, 1024-QAM, Beamforming, Airtime Fairness, Band Steering, Load Balancing, Omada Mesh, Seamless Roaming, QoS (WMM)
- SSID Support : Up to 16 SSIDs, Up to 8 SSIDs per Band
- Wireless Security : Captive Portal Authentication, Access Control, Wireless MAC Filtering, Client Isolation, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Authentication, WPA Personal, WPA2 Personal, WPA3 Personal, WPA Enterprise, WPA2 Enterprise, WPA3 Enterprise
- Transmission Power (CE) : <20dBm (2.4GHz), <23dBm (5GHz Band 1 & 2), <30dBm (5GHz Band 3)
- Management Features : Omada App, Omada Hardware Controller (OC200, OC300), Omada Software Controller, Omada Cloud Controller, Cloud Access, SNMP v1/v2c/v3, SSH,
- HTTP/HTTPS Management, Remote Syslog, L3 Management, Multi-Site Management, Management VLAN, Zero-Touch Provisioning
- Dimensions : 160 × 160 × 33.6mm
- Mounting : Ceiling Mounting, Wall Mounting, Junction Box Mounting
- Operating Temperature : 0°C to 40°C
- Storage Temperature : -40°C to 70°C
- Operating Humidity : 10% to 90% RH
- Storage Humidity : 5% to 90% RH
- Certifications : CE, FCC, RoHS
- Color : White
| Manufacturer | Omada TP-Link |
|---|---|
| Wi-Fi Generation | WIFI 6 |
