Akuvox R20K Video Door Phone
IP65 / ONVIF / POE / WIEGAND
- Camera 2MP
- Card Reader ( 13.56MHz NFC)
- Call Button
- Output Relay for door open
- 185x85x29 mm
- Numeric Keypad
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

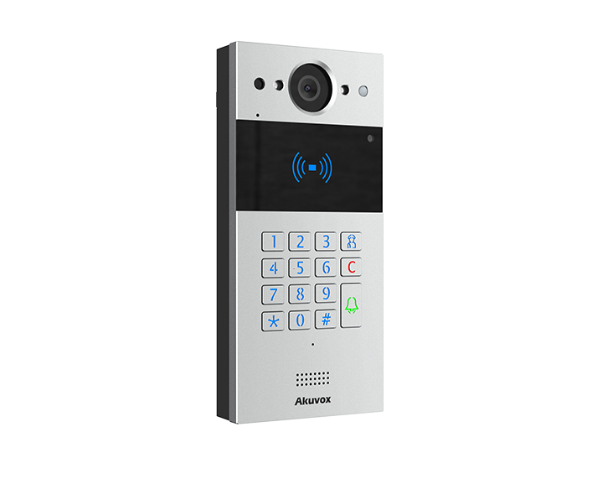

R20K Video Door Phone with Keypad
Akuvox R20K Video Door Phone Palm-Size Doorphone Certified for Outdoor Usage
Space-saving and highly compatible, Akuvox R20K is a compact SIP video doorphone with a numeric keypad. It is typically used in apartment and office buildings.

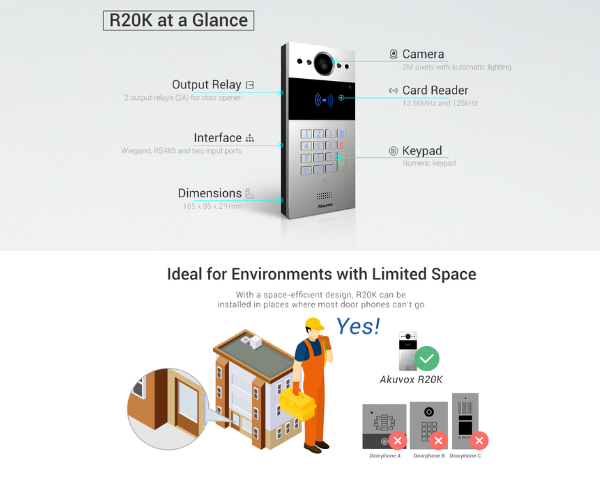

Physical & Power
- Front panel: Aluminum alloy
- Camera: 2M pixels, automatic lighting
- Numeric keypad with extra buttons
- Light sensor: Support
- Infrared sensor: Support
- Wiegand port: Support
- RS485 port: Support
- RF card reader: 13. 56MHz & 125kHz
- Relays out: 2
- Inputs: 2
- Microphone: -40dBSpeaker: 42Ω / 3W
- Ethernet port: RJ45, 10/100Mbps adaptive
- 802.3af Power- over – Ethernet
- 12V DC connector (if not using PoE)

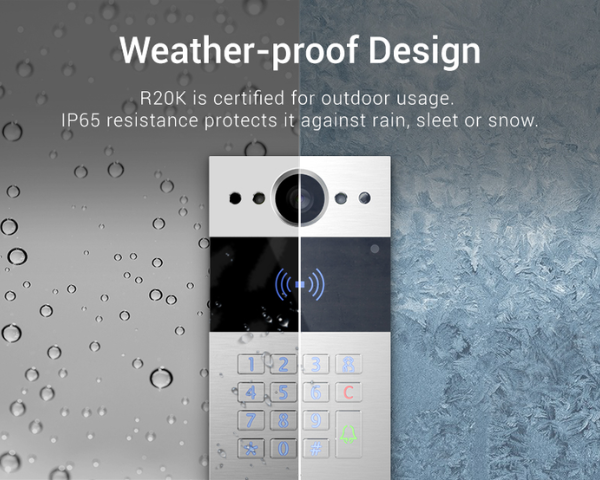

- Water-proof & Dust- proof: IP65
- Installation: Flush-mounted or Wall- mounted
- Flush-mounted
- DIM: 226x108x52mm
- Wall- mounted DIM: 185x85x29mm
- Working Humidity: 10 ~ 90%
- Working Temperature: -30°C ~ +65°C
- Storage Temperature: – 40°C~ + 70°C
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Broadband audio codec: G.722
- DTMF: In- band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
Video
- Sensor: 1/3”, CMOS
- Pixels: CIF, QCIF, VGA, 4CIF, 720p
- Video codec: H.265&H.264
- Video resolution: up to 1080p
- Max. image transfer rate: 720p -30fps
- Viewing angle: 110°(H) / 58°(V)
- High intensity IR LEDs for picture lighting during dark hours with internal light sensor
- Compatible to 3rd- Party video components, e.g. NVRs
Door Entry Feature
- Relays controlled individually by DTMF tones
- Camera permanently operational
- Auto- night mode with LED illumination
- White balance: auto
- Minimum illumination: 0.1LUX
Networking & Protocol
- Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Deployment & Maintenance
- Auto- Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Entry log exportAccess table export / import
- Firmware upgrade
- System logs (include door access logs)
Application Scenario
- Office doorphone with on-site or hosted |P-PBX
- Remote site entry over Internet
- Apartment/flat intercom with door access control
