R&M LC Fast Connector

SKU: 46-01-0002
In Stock
10,25
In Stock
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
1 Working Day Delivery ACS
Speedy and reliable parcel delivery!
Other people want this. 3 people have this in their carts right now.
SKU: 46-01-0002 Categories: ,

FO Field LC, Grade Cf, APC, green, G657.A 0.9mm fibers R846317

Product Code: R846317

Brand: R&M

SKU: 46-01-0002



Description

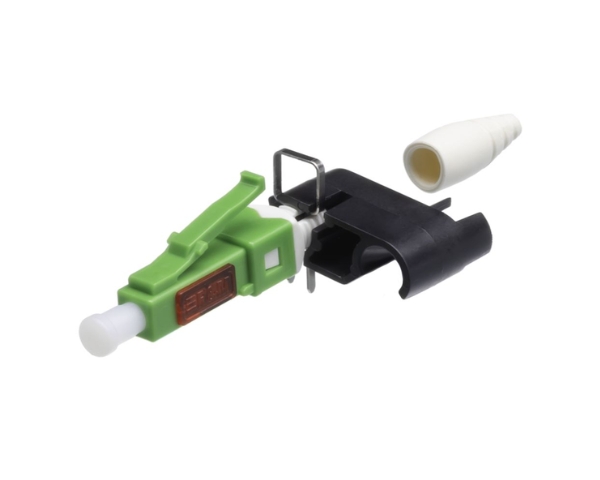

Field-terminable connector, LC APC, Grade Cf/1, in compliance with IEC 61754-20 (LC) and EN 50377-17-1.

Connector housing made of PBT/UL-94 V-0, green, (singlemode APC), extended unlocking lever for optimum unlocking, fiber stub with 8° cleaved fiber, red semi-transparent push button for fiber fixation and function testing.

Environmental Characteristics

Operation temperature 10 °C to 60 °C / +50 °F to +140 °F

Technical Features

Connector type (A) LC
Connector color (A) green
Polishing plug (A) APC 8°
Protection class IP IP 20
Attenuation grade IL (A) C
Connector class connector
Standard UL Listed
according to IEC 61754-20
