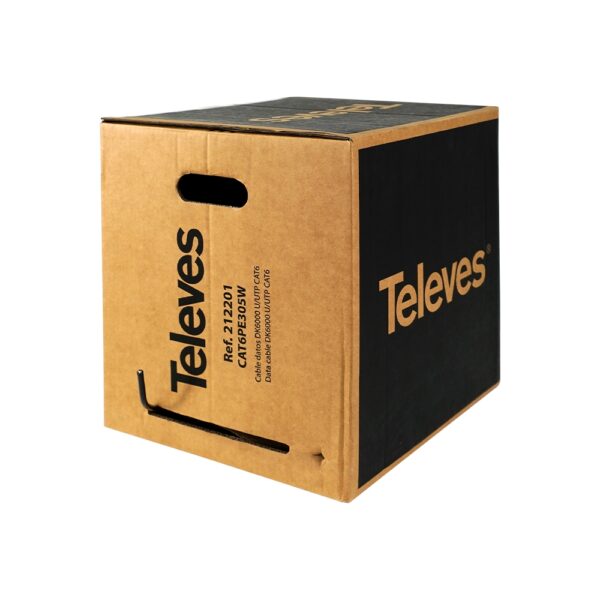

TELEVES 212201 Data Cable U/UTP DK6000 Cat.6 Fca Cu PE Black 305m
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

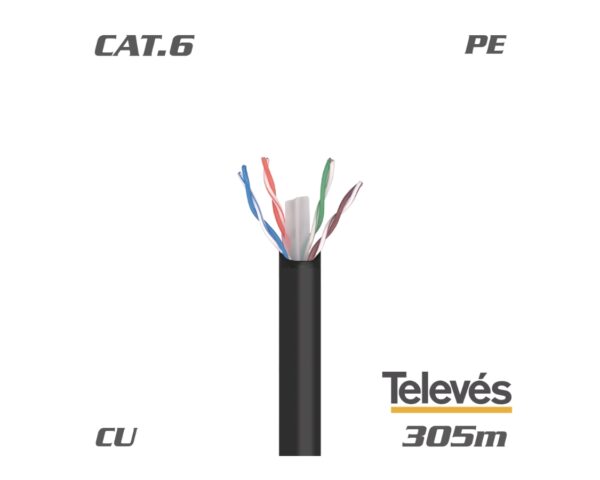

The Televes 212201 Data Cable U/UTP DK6000 Cat.6 Fca Cu PE Black 305m, is a data cable of U/UTP Cat 6 Fca PE 24AWG Category-6 and Fca Euroclass, with copper conductor and PE sheath for outdoor applications, in black colour. Technically compatible with PoE/PoE+/PoE++ (Power over Ethernet) technology, allowing the cable to power network devices. It has outer sheath made of PE (Polyethylene) and has 72% nominal speed.
It is certified according to the applicable standards as defined in the available declarations of conformity and performance Data cable category Cat 6, while it also complies with the standard for Gigabit Ethernet and it is backwards compatible, with the standards of the inferior categories (Cat 5/5e and Cat 3).
This cable is allowing to achieve transmission frequencies of up to 250 MHz (in each pair) and 1 Gbps of throughput. It includes characteristics and specifications to avoid crosstalk and noise. This type of data cable can be used in 10BASE-T, 100BASE-T and 1000BASE-T (Gigabit Ethernet) compliant systems. Plus, it includes rip cord to make it easier to strip the cable.
Technical features:
- Class: Cat 6
- Type: U/UTP Cat.6 Fca CU PE 24AWG
- Comply with TIA/EIA-568B.2-1
- Polyehtylene conductor insulation PE, 0.99 mm diameter
- EuroClass: Fca
- Conductor: material: Solid copper, diameter (mm): 0.51± 0.02, type: AWG 24
- Ιsolation material: Polyehtylene, diameter (mm): 0.95
- Filler: Crucifix type
- Outer sheath: material: PE (Outdoor)
- Diameter (mm): 6.2 ± 0,2, thickness (mm): 0,55 ± 0,05
- Nominal impedance Ohm: 100 ± 15
- Max. conductor resistance: Ω/100m < 9.38
- Transfer rate up to 1Gbps
- Frequency range of up to 250MHz
- Includes rip cord to make it easier to strip the cable
- Nominal velocity %: 72
- Working voltage V: 300
- Enviromental Operating temperature °C -40 … 80
- Color: Black

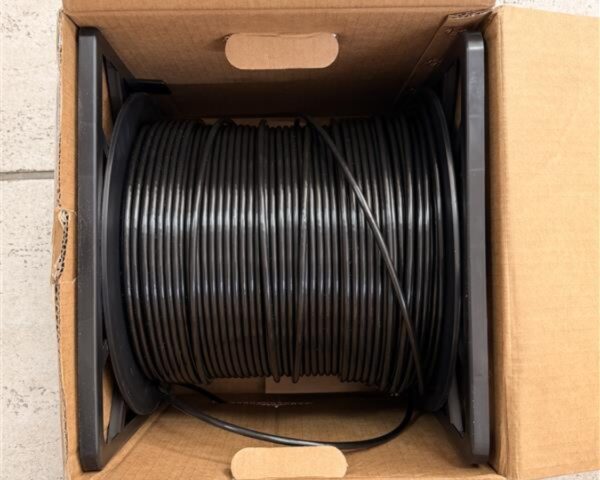

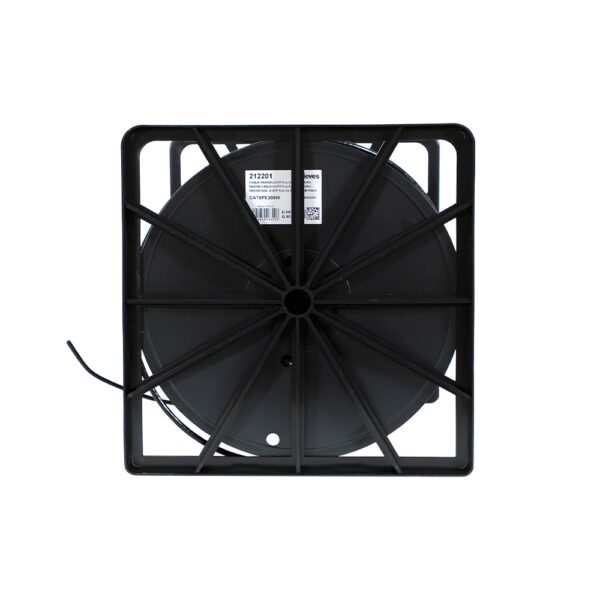

- Packing: Reel 305m (pull box), with cable consumption indicator
- Packing Quantity: 1 pc / 305m
Frequency (MHz) / Attenuation max. (dB/1m):
- 1 / 0.02
- 4 / 0.038
- 8 / 0.053
- 10 / 0.060
- 16 / 0.076
- 20 / 0.085
- 25 / 0.095
- 31,25 / 0.107
- 62,5 / 0.154
- 100 / 0.198
- 200 / 0.290
| Weight | 11 kg |
|---|---|
| Manufacturer | TELEVES |
| LAN Category | Cat6 |
| LAN Type | UTP |
| Length | 305.00m |
