TP-Link 5-Port Gigabit Switch with 4-Port PoE+ TL-SG1005LP
- 4 POE Ports
- POE Budget 40W
- POE for Each Port: 30W
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

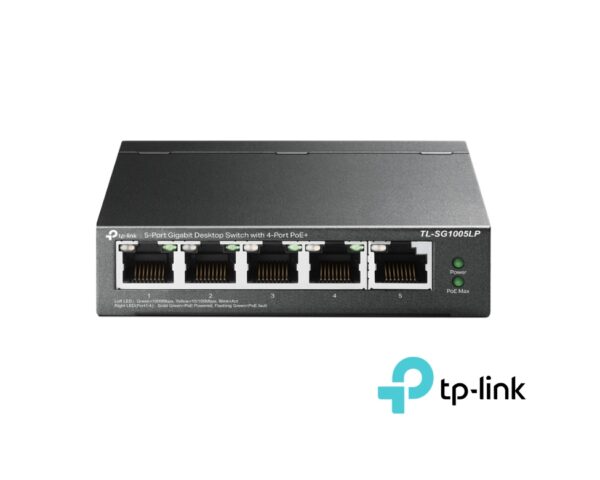

The TP-Link TL-SG1005LP is a compact 5-Port Gigabit PoE+ Switch featuring 4 PoE+ ports with a total 40W power budget. Ideal for IP cameras, wireless access points and VoIP phones, it delivers power and data over a single cable while offering QoS, IGMP Snooping and plug-and-play deployment.
Technical Features
- 5 Gigabit Ethernet Ports
- 4 PoE+ Ports
- 40W Total PoE Budget
- Up To 30W Per PoE+ Port
- IEEE802.3af/at PoE Support
- QoS Traffic Prioritization
- IGMP Snooping
- Intelligent Power Management
- Plug and Play Installation
- Fanless Metal Design
Technical Details
- Interfaces: 5 × 10/100/1000Mbps RJ45 Ports
- Auto Negotiation: Yes
- Auto MDI/MDIX: Yes
- Network Media:
- 10BASE-T: UTP Category 3, 4, 5 Cable, EIA/TIA-568 100Ω STP (Maximum 100m)
- 100BASE-TX: UTP Category 5, 5e Cable, EIA/TIA-568 100Ω STP (Maximum 100m)
- 1000BASE-T: UTP Category 5, 5e, 6 Or Above Cable, EIA/TIA-568 100Ω STP (Maximum 100m)
- Fan: Fanless
- Power Supply: External Power Adapter (Output: 53.5VDC / 0.81A)
- Packet Forwarding Rate: 7.44Mpps
- PoE Standard: IEEE802.3af/at
- PoE Ports: Ports 1-4
- Maximum PoE Output Per Port: 30W
- PoE Budget: 40W
- MAC Address Table: 2K
- Jumbo Frame: 16KB
- Switching Capacity: 10Gbps
- Dimensions: 99.8 × 98 × 25mm
- Maximum Power Consumption: 4.12W (No PD Connected), 47.5W (With 40W PD Load)
- Maximum Heat Dissipation: 14.05 BTU/h (No PD Connected), 161.98 BTU/h (With 40W PD Load)
- Advanced Features:
- Compatible With IEEE802.3af/at Powered Devices
- MAC Address Auto-Learning And Auto-Aging
- IEEE802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping
- Intelligent Power Management
- Multicast Optimization
- Transmission Method: Store-And-Forward
- Certifications: FCC, CE, RoHS
- Operating Temperature: 0°C ~ 40°C
- Storage Temperature: -40°C ~ 70°C
- Operating Humidity: 10% ~ 90% RH Non-Condensing
- Storage Humidity: 5% ~ 90% RH Non-Condensing
Package Contents:
- TL-SG1005LP Switch
- Power Adapter
- Installation Guide
| Manufacturer | TP-Link |
|---|---|
| Speed | Gigabit |
| Device Total Ports | 5 |
| POE Budget | 40W |
| POE Ports | 4 |
| Power over Ethernet (PoE) | PoE+ |
| Mount Type | Desktop |
| Switch Type | Unmanaged |
| POE Switch | Yes |
