16 FO Termination Box RS460804
Installation and maintenance are made effortless with the Fiber Optic 16 Cores Distribution Box.
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

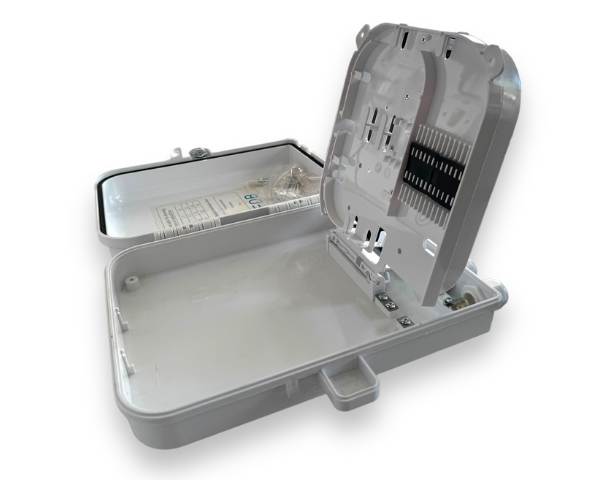

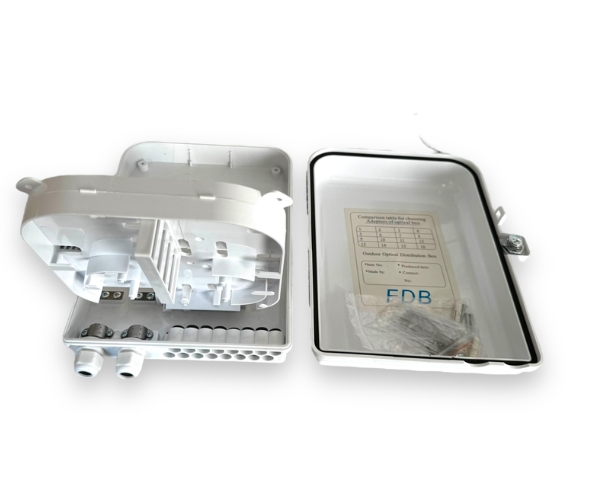

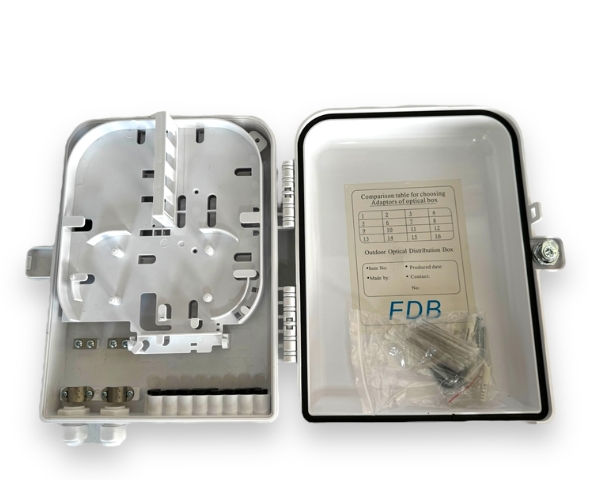

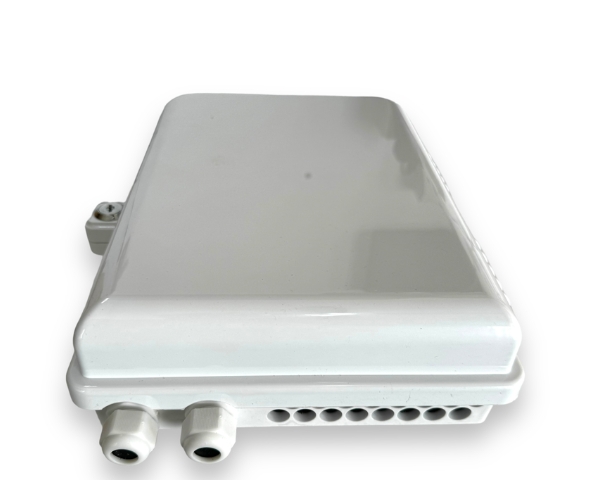

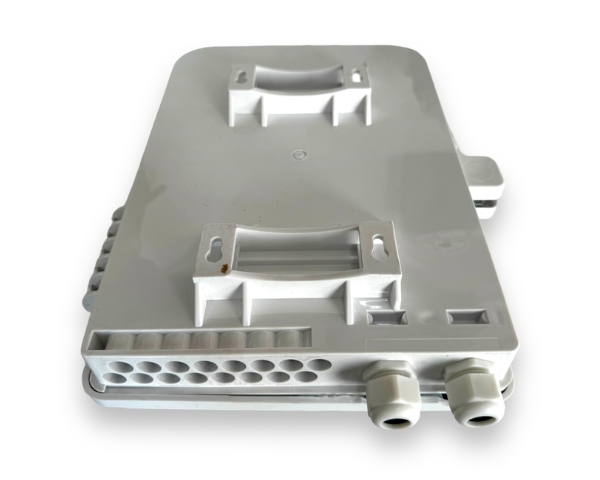

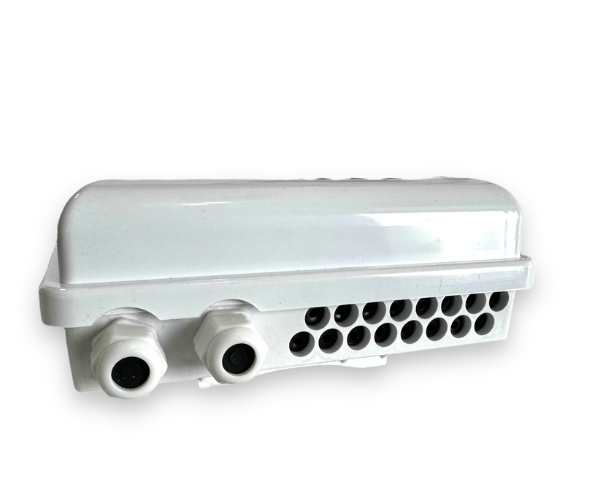

The FDB0216A 16 Fiber Optic Distribution Box is an FTTH access termination box designed to connect feeder or distribution fiber cables to subscriber drop cables through PLC splitters.
It integrates fiber splicing, splitting, distribution, storage and cable management within a durable IP65-rated ABS+PC enclosure. The box supports up to 16 fibers and 16 SC adapters, with space for 1×16 or 2×1:8 PLC splitters.
Designed for outdoor FTTH installations, the enclosure features UV and rainfall resistance, stainless steel metal components, secure cable clamping and generous fiber storage space. It can be installed on a wall or pole and supports both standard cable glands and mid-span/uncut cable entry.
Key Features
- Fiber Capacity: Up to 16 Fibers
- Adapter Capacity: Up to 16 × SC
- PLC Splitter Support: 1 × 1:16 or 2 × 1:8
- Material: High-Quality ABS + PC
- Protection Rating: IP65
- Weather Protection: UV & Rainfall Resistant
- Metal Components: Stainless Steel
- Fiber Management: Splicing, Splitting, Distribution & Storage
- Splice Plate: Rotating Design for Easy Access & Maintenance
- Cable Entry: Cable Glands or Mid-Span / Uncut Cable Port
- Cable Management: Integrated Clamping & Fixation
- Fiber Storage: Large Redundant Fiber Storage Area
- Installation: Wall or Pole Mount
- Application: Indoor & Outdoor FTTH / FTTx Networks
- Design Service Life: Minimum 20 Years
- Security: Key Lock + 2 Clips
Technical Details
- MPN: FDB0216A
- Fiber Capacity: 16 Single Fibers
- Adapter Capacity: 16 × SC
- Dimensions: 320 × 260 × 95 mm
- Material: ABS + PC
- Protection Rating: IP65
- Splitter Capacity: 1 × 1:16 or 2 × 1:8 PLC Splitters
- Splitter Type: Steel Tube or LGX Module
- Cable Entry: 2 Cable Glands / Mid-Span Entry
- Drop Cable Outputs: Up to 16
- Standard Input Cable Diameter: Ø7–14 mm
- Mid-Span Input Cable Diameter: Ø17.9 mm
- Output Cable Size: 2 × Ø3 mm
- Mounting Type: Wall / Pole Mount
- Available Colors: Grey / Black / White
- Application: FTTH / FTTx Fiber Distribution
| Manufacturer | RS |
|---|
