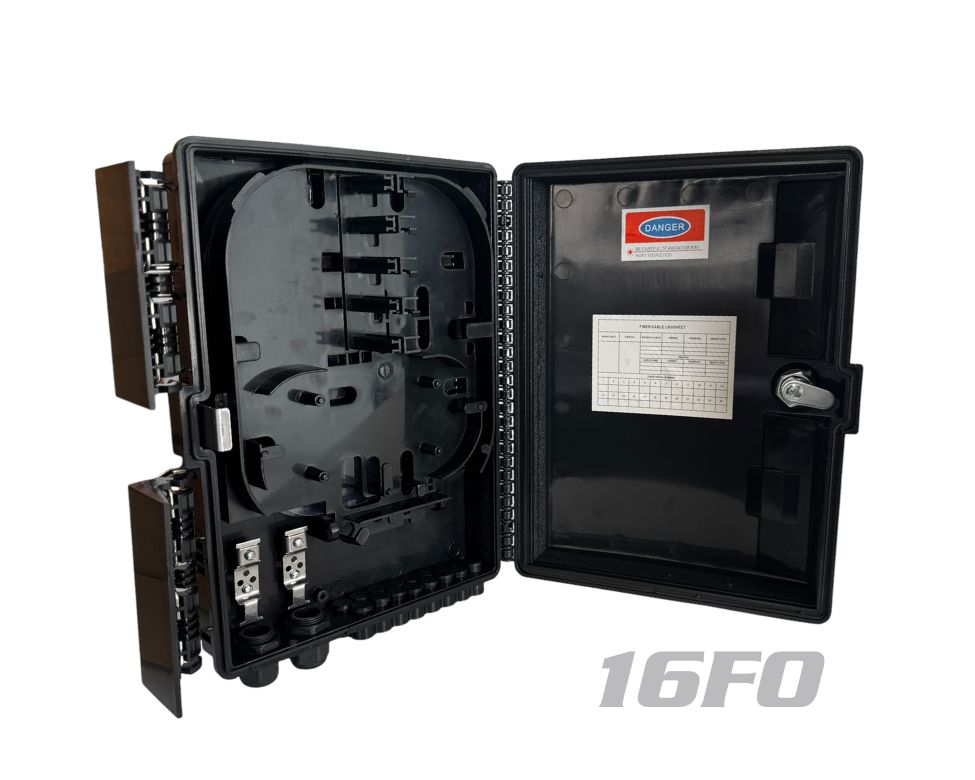

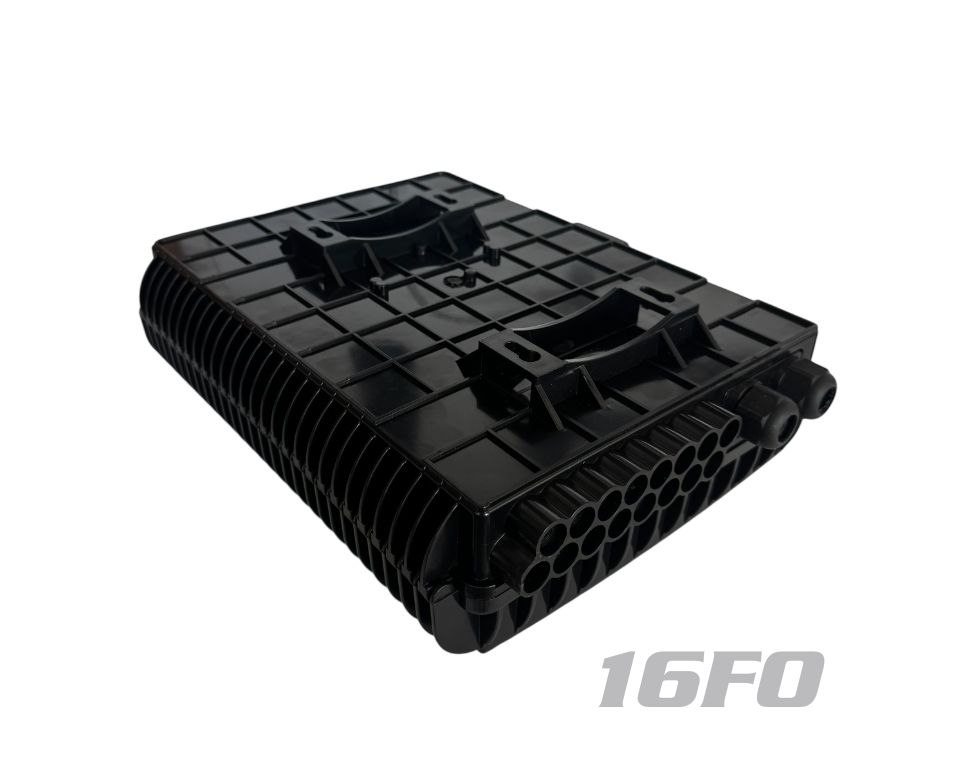

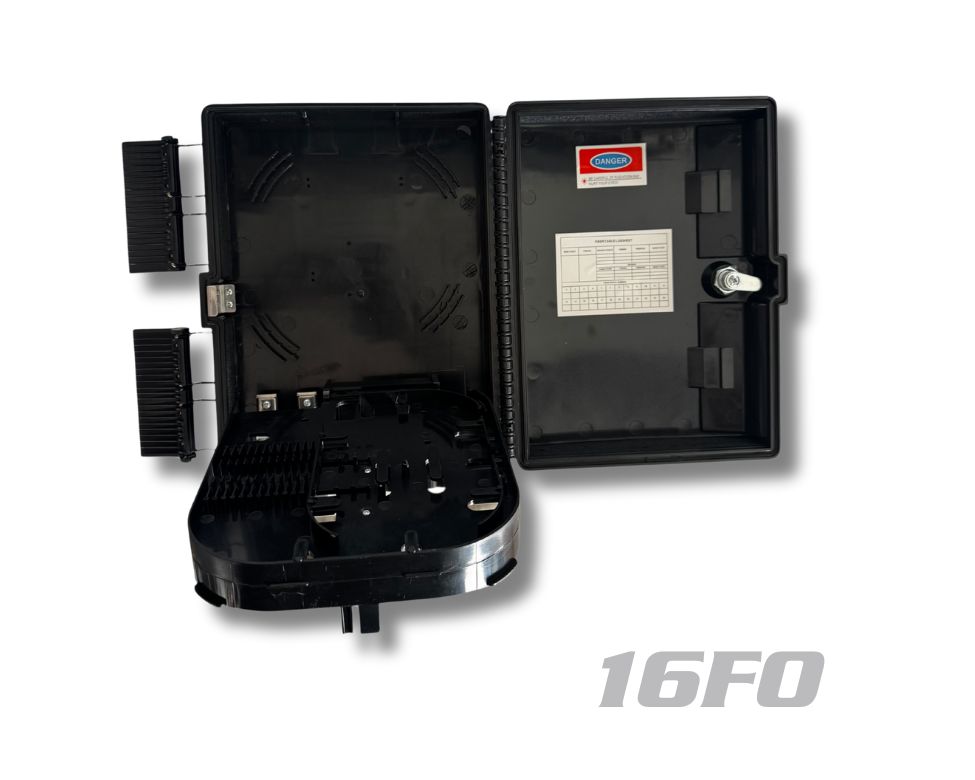

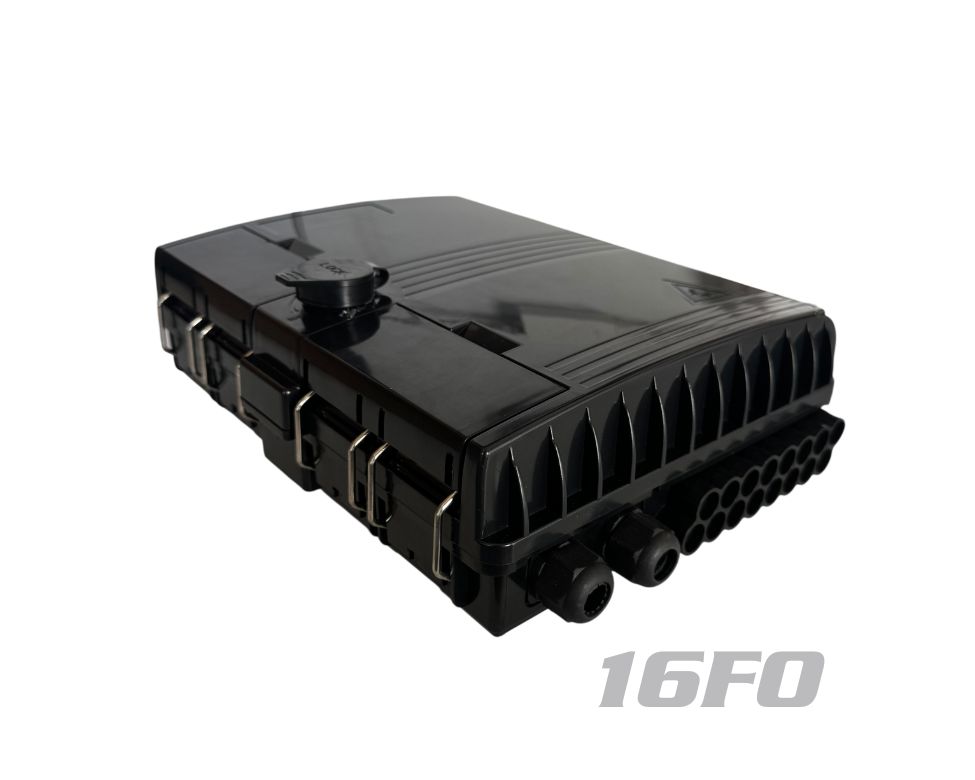

16 FO Fiber Optic Termination Box BLACK RS460811
Model: RS460811
Factory Name: H0216G
Color : Black
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
This distribution box terminates up to 2 fiber optic cables, offers spaces for splitters and up to 16 fusions, allocates 16 SC adapters and working under outdoor environments. It is a perfect cost-effective solution-provider in the FTTx networks.
Features
- Splice and patch cord use Separation structure, easy to Capacity expansion and maintenance；
- High quality plastic,Beautiful appearance；
- Internal turnover structure,easy to maintenance；
- Can install 16 pcs of SC adapters；
- Can install mini type splitter and cassette PLC splitter；
- Could exit 16 pcs of drop cable；
- Protection levels：IP65
Installation preparation
- Checking the product :As per the packing list to check it one by one. Documents Tools
Fiber-optical stripping and fix.
- As per the requirement,open the hole-at the bottom of the box,then install the seal rings As per the cable size to cut seal rings, cable through the it
- Adjust the length of cable, keep extra cable around 0.5m；
-
Clean the cable, cut the cable protector around 0.4m,keep armoured part around 30mm,keep the fiber around 60mm；
-
When strip the cable ,use insulating tape or heat shrink protector； Put the fiber through the hole,fix it with clamp, then tighten the screws.
Trunk optical cable splice and route with pigtail
- Strip the fiber and pigtail, 1.3m to 1.5m, then put the tube protecto
- Open the tray, splice the fiber；
- Put the finished fiber into the tray
- Fixed the fiber and pigtail
- Remark the fiber and record it
Specifications
Dimensions and Capacity
| Dimensions (H*W*D) | 303mm * 236mm * 109mm |
| Color | Black |
| Weight | 1.35KG |
Technical Specifications
| Adapter Type | SC Simplex / LC Duplex |
| Adapter Capacity | 16 pcs |
| Splitter Type | 1*8 / 1*16 Cassette PLC splitter, 1*8 / 1*16 mini type splitter |
| Number of Cable Entrance(s) and Exit(s) | 2:16 |
| Cable Inlet Caliber | 16mm |
| Optional Accessories | Adapters, Pigtails, Heat Shrink Tubes, Micro Splitter |
| Working Temperature | -40°C ~ +65°C |
Shipping Information
| Package Contents | Fiber optics distribution box, 1 unit; Keys for lock, 1 key |
| Package Dimensions (W*H*D) | 308mm * 250mm * 130mm |
| Material | Carton box |
| Weight | 1.5KG |
