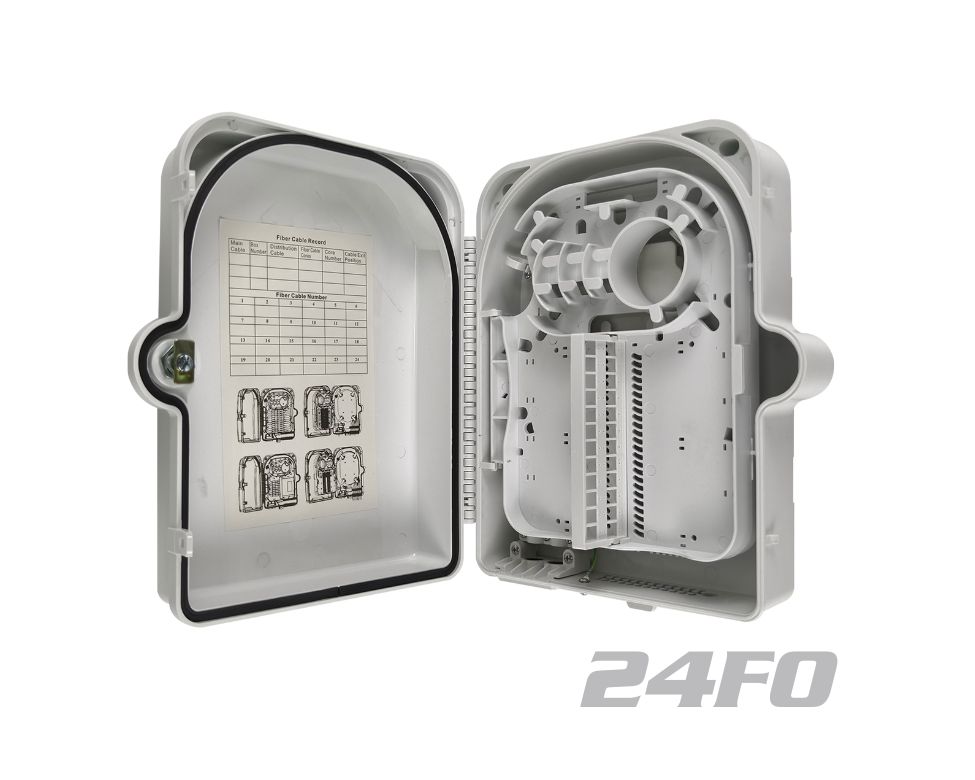

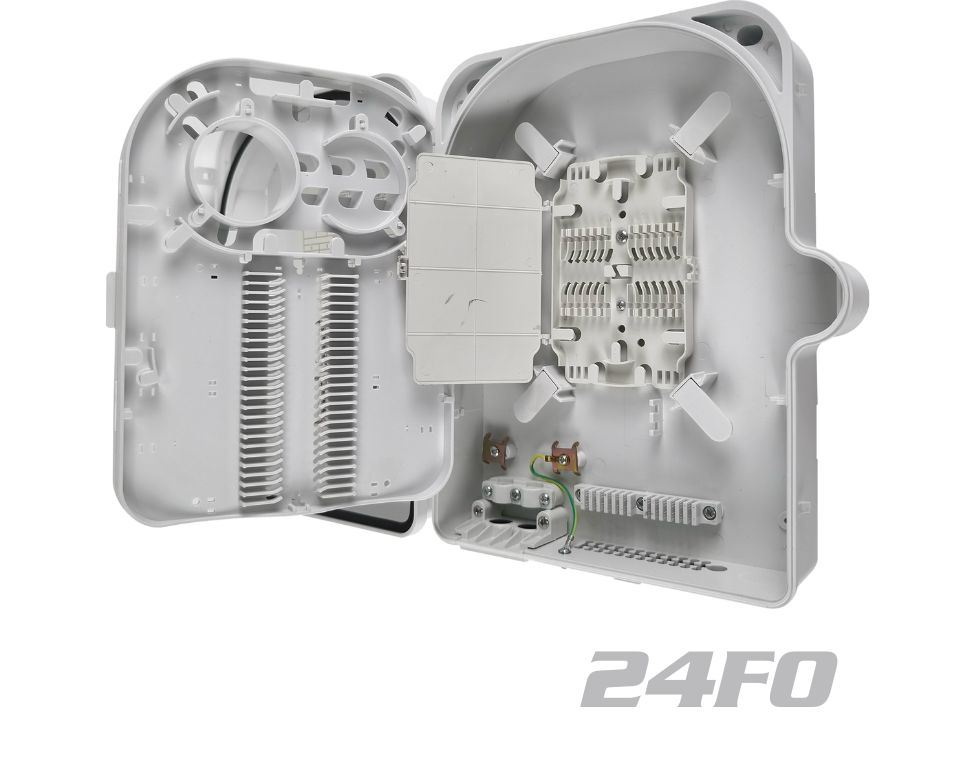

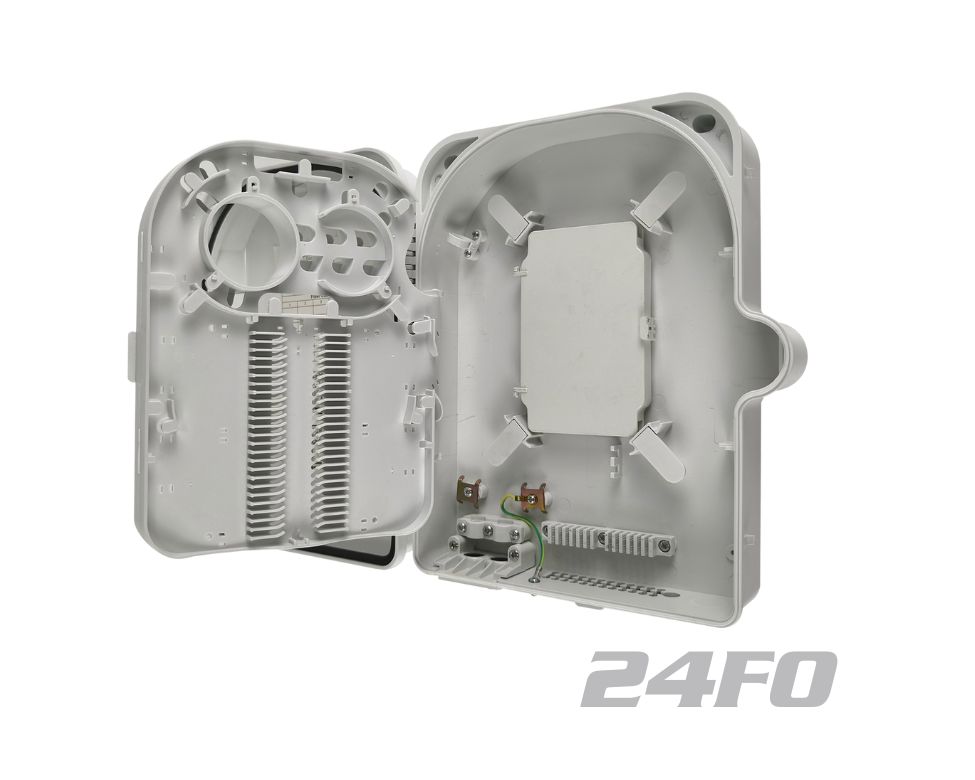

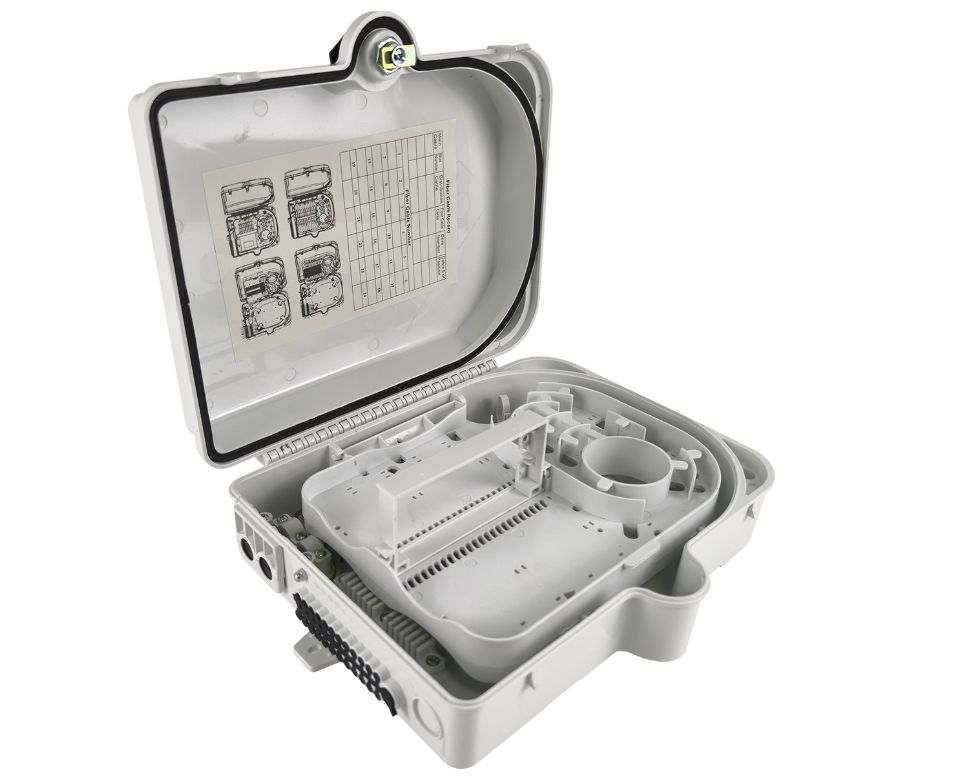

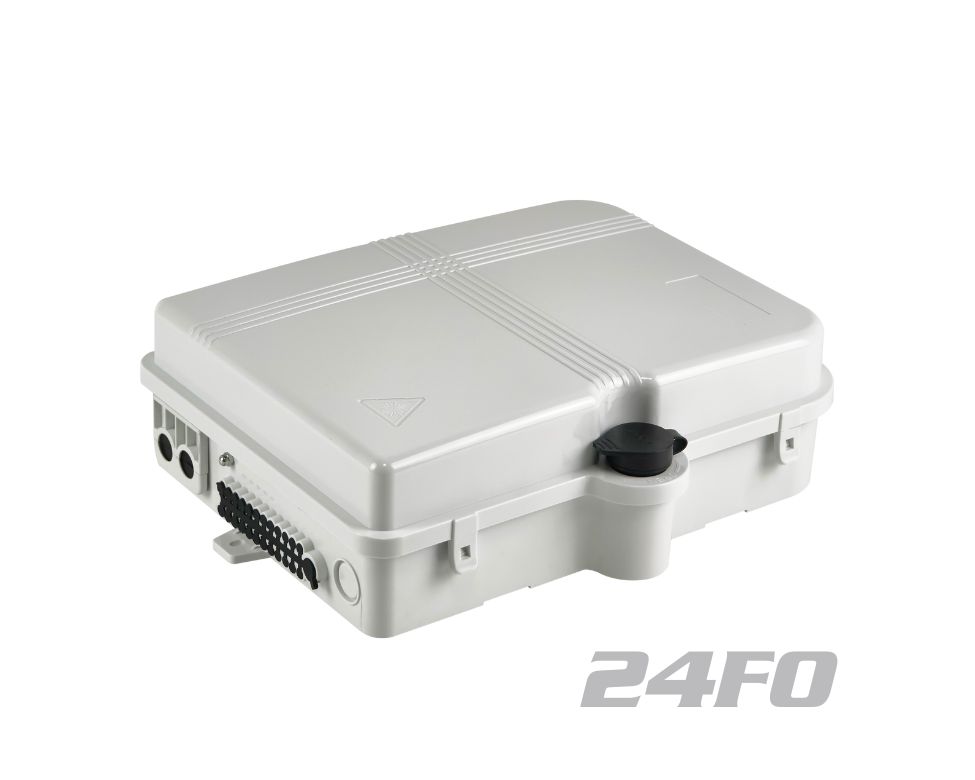

24 FO Fiber Optic Termination Box (S) RS460812
Model: WB-H021
Factory Name: H0216G
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features:
- Total enclosed structure.
- Material: ABS, wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP55.
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc all in one.
- Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
- The box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
3. Specification:
| Items | Specification |
|---|---|
| Item No | WB-H021 |
| Splitter Capacity | 2 PCS 1*8 PLC or 1 PCS 1*16 PLC |
| Adaptor Capacity | 24 PCS SC Simplex Adaptors |
| Size | 330*275*110mm |
| Material | ABS |
| Waterproof | IP55 |
4. Argument:
Environmental Requirement
| Working Temperature | -40°C ~ +85°C |
| Relative Humidity | ≤85% (+30°C) |
| Atmospheric Pressure | 70KPa ~ 106KPa |
Main Technical Data Sheet
| Insertion Loss | ≤0.3dB |
| UPC Return Loss | ≥50dB |
| APC Return Loss | ≥55dB |
| Life of Insertion and Extraction | >500 times |
|
Thunder-proof technical data sheet |
|
|
The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V（DC）；IR≥2MΩ/500V The withstand voltage between grounding device and cabinet is no less than 3000V（DC）/min, no puncture，no flashover；U≥3000VThe withstand voltage between grounding device and cabinet is no less than 3000V（DC）/min, no puncture，no flashover；U≥3000V |
Installation:
- Wall-mounted installation:
- Drill 4 holes over the wall based on the size in Fig.2，place the expansion bolt , place the box to match up the holes and use bolt to fasten.
- Pole-mounted installatio:
- Fix 1 set of the easy pole ring to the telecom pole.
