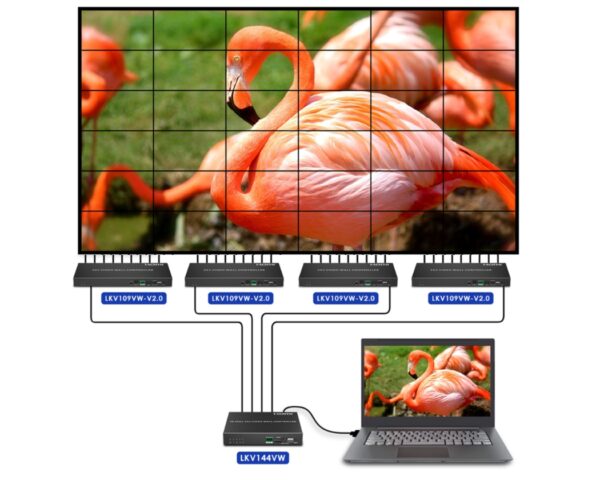

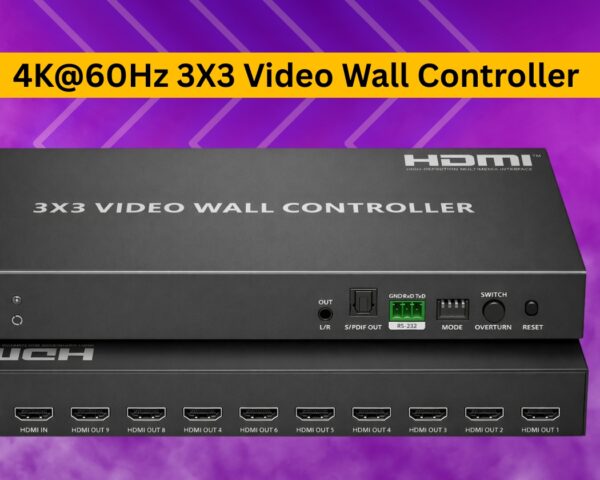

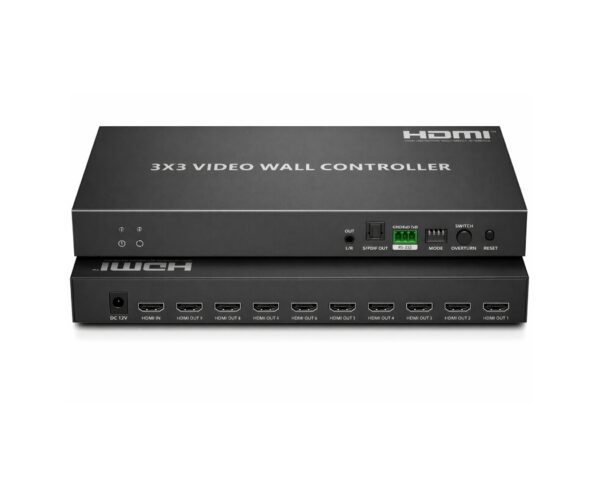

3×3 HDMI Video Wall Controller supporting 4K 4096×2160@60Hz input and nine 1080p HDMI outputs. Features multiple splicing modes (1×2 to 3×3), RS-232 control, DIP switch configuration, audio output (3.5mm & S/PDIF), 180° image rotation for flexible installations, firmware upgrade via Micro-USB, and plug-and-play operation with built-in surge and ESD protection. Ideal for digital signage, control rooms, and professional video wall displays.

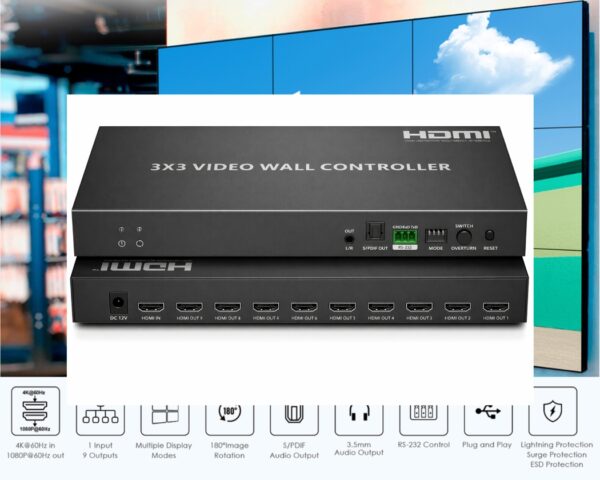

Technical Features:
- 4K@60Hz In / 1080P@60Hz Out
- 1 Input/9 Output
- Multiple Display Modes

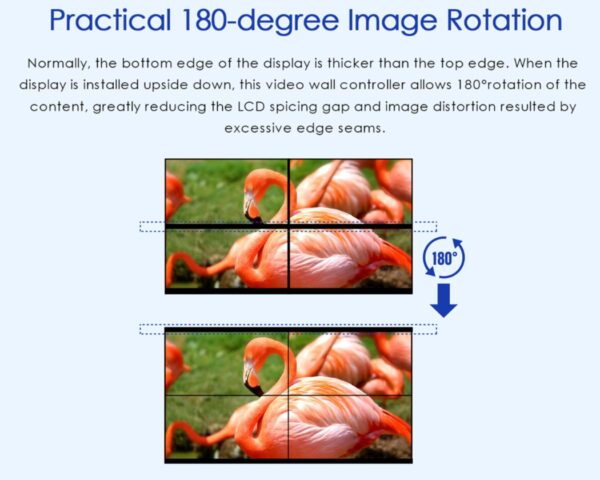

- 180-degree Image Rotation
- S/PDIF Audio Output
- 3.5mm Audio Output
- RS-232 Control
- Plug and Play
- Lightning/Surge/ESD Protection
Highlights:

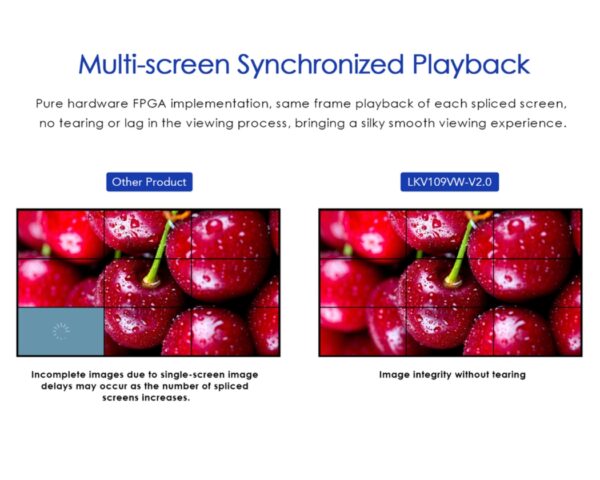

- Multi Screen Sychronized Playback

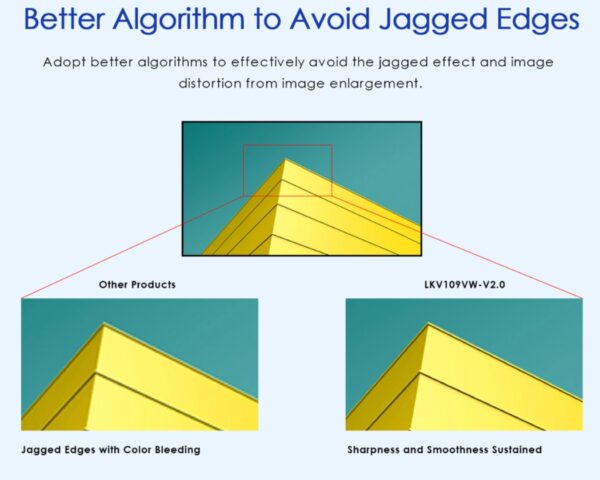

- Better Algorithm to Avoid Jagged Edges

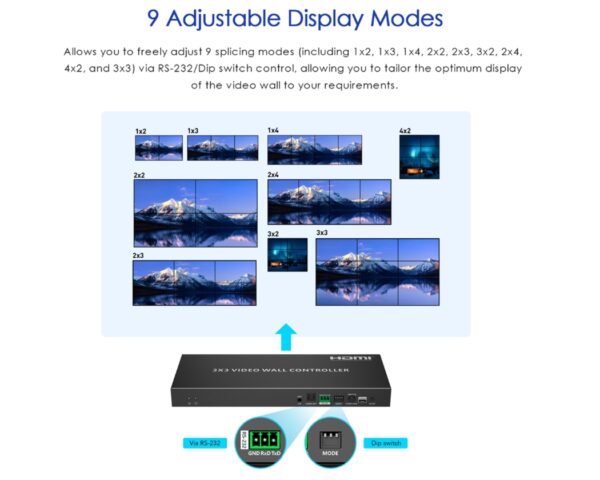

- 9 Adjustable Display Modes(1×2/1×3/1×4/2×2/2×3/3×2/2×4/ 4×2/3×3)
Technical Details
- HDMI Input: 1x HDMI
- HDMI Output: 9x HDMI
- Compatibility: HDMI 2.0HDCP 1.4 / HDCP 2.2
- Resolutions
- Input: 4096×2160@24/25/30/50/60Hz， 3840×2160@24/25/30/50/60Hz， 3440×1440@60Hz，2560×1600@60Hz， 2560×1440@60Hz，2560×1080@60Hz， 1920×1200@60Hz
- Output：When the mode is 0000/0001/0010, the maximum output is 1080P@30Hz; other modes have a maximum output of 1080P@60Hz.
- Resolutions
- Input: 1080P@24/25/30/50/60Hz
- Output：1080P@24/25/30/50/60Hz
- 3.5mm Output: PCM
- S/PDIF Output: PCM
- HDMI Output: PCM
- Mode: 1×2/1×3/1×4/2×2/2×3/3×2/2×4/4×2/3×3
- RS-232 (GND/ RxD/TxD): Default baud rate: 9600 Only when the dip switch is set to ‘1111’ can the splicing mode be switched by RS-232 instruction
- Power Supply: DC12V/2A
- Power Consumption: ＜17W
- Working temperature: -20℃~60℃
- Storage temperature: -30℃~70℃
- Humidity: 0~90%RH（No condensation）
- Housing: Iron
- Weight: 844g
- Color: Black
- Dimensions: 265(L)*105(W)*25(H)mm
- Protection
- ESD protection
- 1a Contact discharge level 2 (±4KV)
- 1b Air discharge level 3 (±8KV)
- Implementation of the standard: IEC61000-4-2
- Lightning protection, Surge protection
| HDD type | Wall Controller |
|---|---|
| HDD Maximum Resolution | 1080p@60Hz |
| HDD Support IR | No |
| HDD Transmit Type | HDMI Cable Direct |
| Manufacturer | Lenkeng |
