HDMI MODULATOR mini

Model: mini
SKU: 13-02-0008
In Stock
129,00
In Stock
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
1 Working Day Delivery ACS
Speedy and reliable parcel delivery!
Other people want this. 5 people have this in their carts right now.
SKU: 13-02-0008 Categories: ,

Package includes:

  • HDMI Modulator mini
  • Power Supply Unit 5V/2.0A
  • Mounting screws
  • User Manual EN/DE/GR/ES/IT/FR

Description

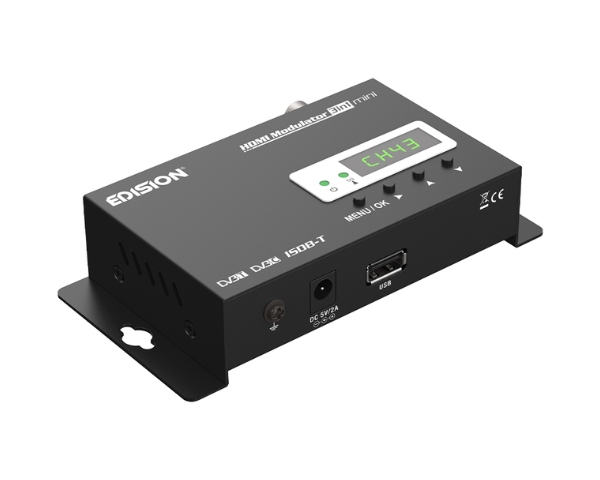

EDISION HDMI Modulator mini, single channel FULL HIGH DEFINITION provided by EDISION. With input from any HDMI source (Terrestrial & Satellite decoders, cameras, DVD, DVR, etc.), it modulates and produces output up to FULL HIGH DEFINITION 1080p MPEG4, Terrestrial Digital DVB-T signal, in VHF / UHF bands.

HDMI Modulator Mini has an Easy and fast configuration with the ID Pre-Config function and space saving in the installation with highly compact dimensions for an easy installation, even in minimal space conditions.



SKU: 13-02-0008

- Digital single-channel HDMI Modulator to DVB-T/MPEG4
- INPUT signal: HDMI
- OUTPUT signal: Digital Terrestrial DVB-T signal, MPEG4
- High Video Resolution up to 1080p@30FPS
- Aspect Ratio 16:9 wide screen, 4:3 letter box, 4:3 pan scan
- Frequency Range VHF (CH. 5-12) & UHF (CH. 21-69)
- RF Output Level: Factory default 90 dbμV, with adjustable gain up to +6dbμV or attenuation up to -14dbμV
- MER: >35dB at Maximum RF output level
- Symbol Rate Up to 31.668 MBPS
- Bandwidth 7MHZ, 8MHZ
- Video Encoder: MPEG1, MPEG2 MP@HL , MPEG4 SP@L3 to ASP@L5, MPEG4 AVC HP @level4.1, [email protected]
- Audio Encoder: MPEGI L1/2, MPEGII LII, AAC LC, HE-AAC v1/v2 (2-CH)
- Processor System: CPU 200MHz 32Bits RISC
- Memory DDRII 16bit 512Mbits (Embedded) & NOR Flash 32Mbit
- Input HDMI v1.4a
- USB Type USB 2.0 HOST
- Fast Pre-Config Function / 50 IDs Selectable
- Backup Config File by USB
- Software Upgrade via USB

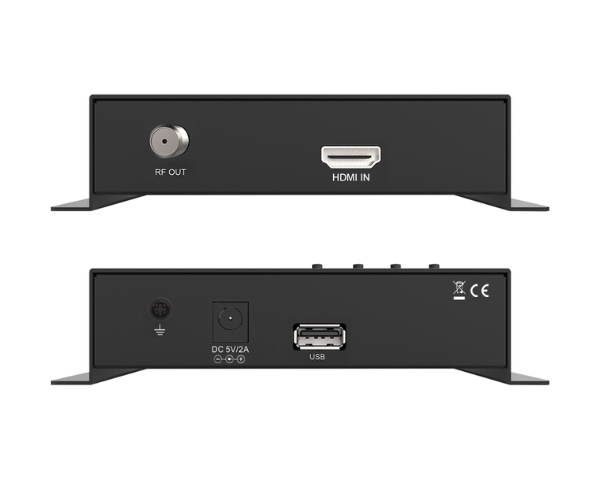

- Ports: HDMI IN, RF OUT, USB, DC 5V, GROUND
- 4-digit LED display
- 4-display buttons
- Power supply unit type: Adapter Input:100~240V AC, Output: DC 5V/2.0A
- Low Power Consumption in normal working mode: 10W maximum

General

- Dimensions: 132x84x31 mm (mini size)
- Weight: 0,35 kg
- Color: black
- Warranty: 2 years

Additional information

Weight 0,45 kg
Brand

Edision

Manual

HDMI MODULATOR mini MANUAL GR

HDMI MODULATOR mini MANUAL EN
