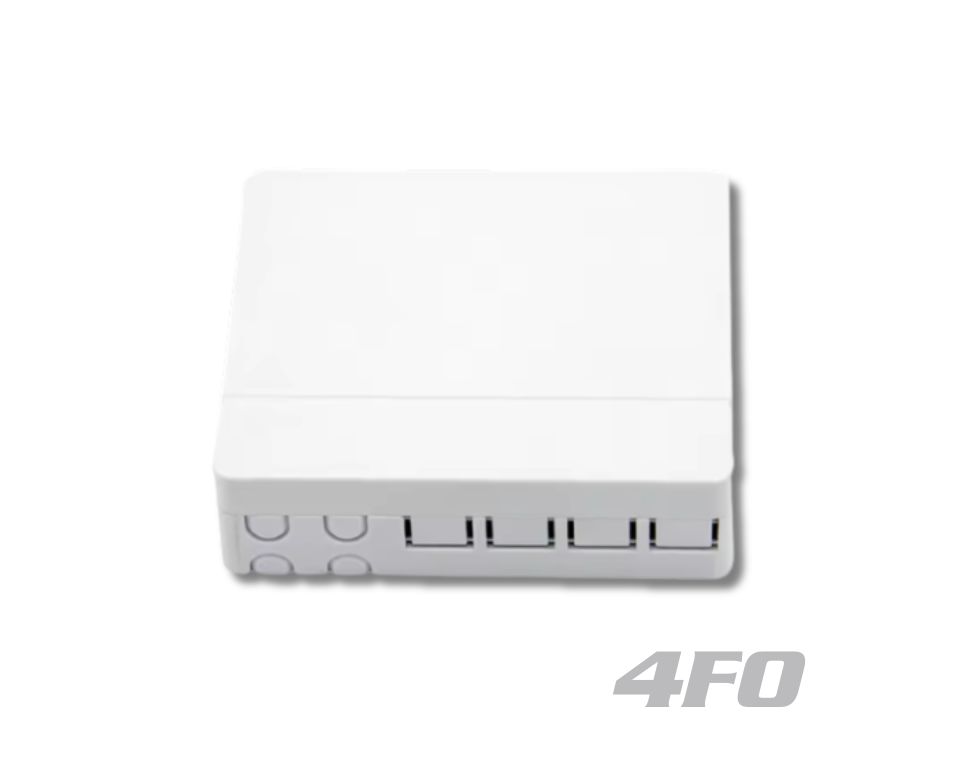

4 FO Fiber Optic Termination Box Small RS460808
Model: RS460808
Factory Name: FTTH-104D
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Application
- FTB-104D is a desk mounted or wall mounted termination box for end user, indoor use, capable to handle fiber fusion, fiber cables and pigtails.
Features & Benefits
- Support termination, splicing and storage for fiber optic cable systems
- Compatible with G.657.

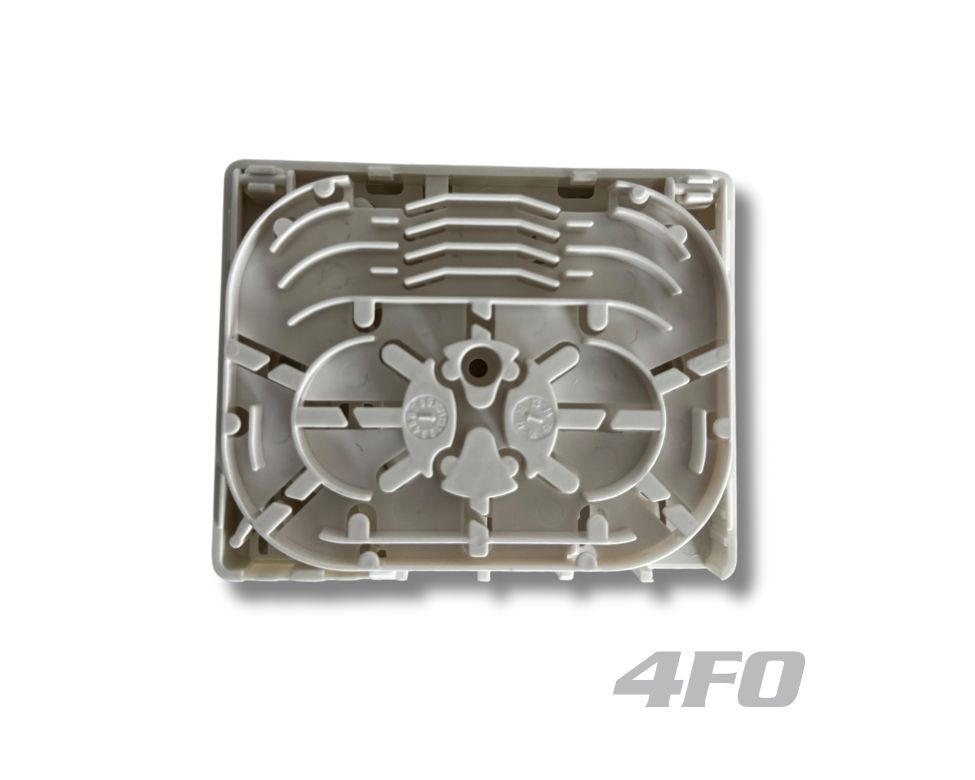

- Compact structure and perfect fiber management
- Engineered fiber routing protect bend radius through the unit to ensure signal integrity
- Applicable for wall-mounted and compatible with flush mounted outlet.
Specifications
| Parameter | Value | Remark |
|---|---|---|
| Model | FTB-104D | |
| Outside Dimension (mm) | 100*80*29 | |
| Material | Plastic | |
| Color | White | |
| Storage of fibers | G.657 | |
| Splice capacity | 4 single fiber | |
| Splice Method | Fusion Splice | 45mm sleeve |
| Adapter type and count | 4SC or 4 LC Duplex | |
| Input cable | 3mm or figure 8 (2*3mm) | From side or bottom |
Accessories
| No. | Name | Qty. |
|---|---|---|
| 1 | Fiber splice protection sleeve | 4pcs |
| 2 | Expansion bolts for the outlet all-mounted | 2 set |
