Model: NVR-7504P-4K
SKU: 24-14-0006
In Stock
In Stock
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
1 Working Day Delivery ACS
Speedy and reliable parcel delivery!
Other people want this. 2 people have this in their carts right now.

Download PDF

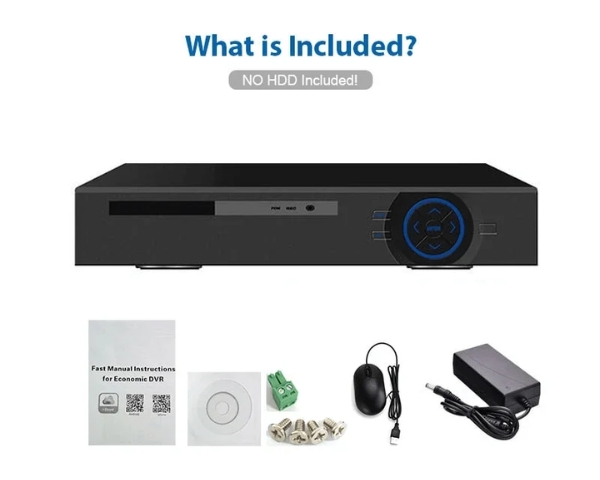

Hard Disk is not included*

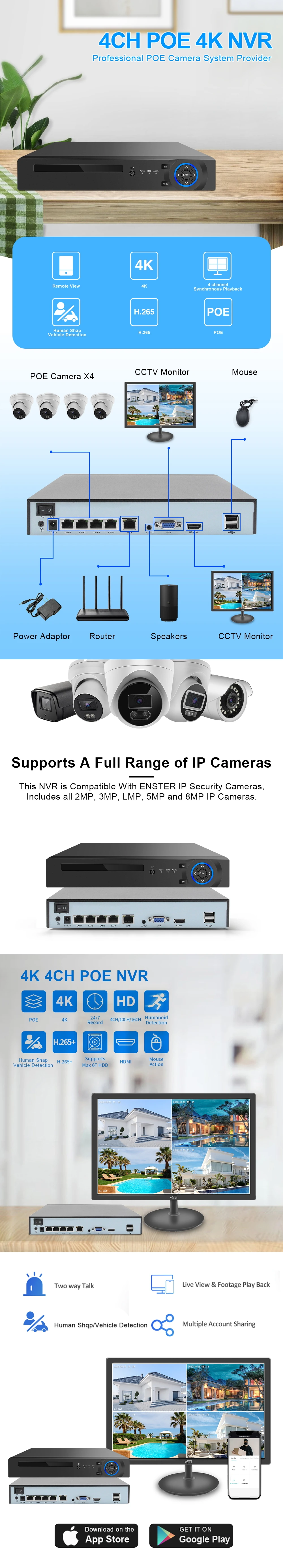

4ch 4k H.265 Plug and Play PoE NVR With 4CH DC 48V POE Output



Model No. NST-NVR7504P-4K
System Main processor Hi3798M
Operating system Embedded Linux
System resource Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Interface Operation interface 16-bit true color graphic menu operation interface, support mouse operation
Preview 1/4/8
Video Video input (IP) 4*4K/4*5M/4*4M /8*1080P
Video standards PAL(625TVL,50f/s) ; NTSC(525TVL,60f/s)
Forwarding bandwidth H.265/H.264
Display quality Max:4K
Playback quality 4K/5M/4M/1080P
Decode 1*4K/2*5M/4*4M/4*1080P
Motion detection Depend on camera
Audio Audio compression G.711A
intercom Unsupport
Record and playback Record mode Manual>Alarm>Video Detection>Continuous
Local playback 1*4K/2*5M/4*4M/4*1080P
Search mode Search by Time/Calendar/Event/Channel
Storage and back up Record Storage HDD 、 network
Backup mode Network backup, USB hard disk, USB burner, SATA burner
Interface Video output 1ch HDMI HD output(can be extended to support VGA)
Audio I/O 0/0
Alarm I/O 0/0
Network interface 1* 10M/100M Adaptive Ethernet port,4 POE ports
USB interface 2*USB2.0 ports
Hard disk 1*SATA(extensible 2 SATA interface) (Up to 8TB for each disk)
other ONVIF Support
PTZ control Control PTZ device by network
Power supply 48V/1.5A
Power Consumption <10W(Without HDD)
Work environment Temperature:0℃- + 55℃ , Humidity:10% - 90%RH , Atm:86kpa - 106kp
Dimension L350*W275*H80MM
Weight 1.6KG


Support VGA, HDMI full HD output simultaneously;
Support ONVIF; access third party;
Support AHD, TVI ,CVI,CVBS,IPHD video input;
Support Web, CMS, center platform management software XMEYE, provide SDK development;
Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;

Support various mobile monitoring (iPhone, Android);

Remote Access, With DNS (ARSP),easy to monitor remotely.
