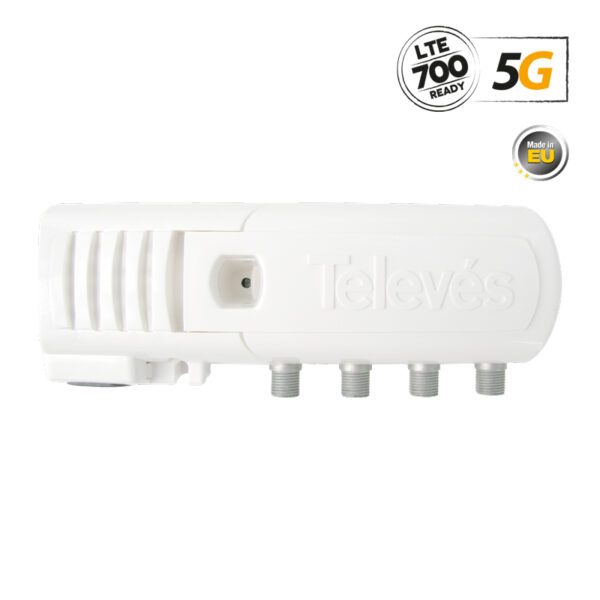

552220 Televes Line Amplifier “F” 5G LTE 20dB 3out (2+TV)

Model: 552220
SKU: 11-01-0020
In Stock
49,00
In Stock
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
1 Working Day Delivery ACS
Speedy and reliable parcel delivery!
SKU: 11-01-0020 Categories: , ,
  • 3 outputs (2+TV)
  • 5G / LTE rejection
  • Adjustable Gain

Description

552220 Televes Line Amplifier “F” domestic amplifier 3 outputs (2+TV): VHF/UHF – LTE700 Ready

552220 Televes Line Amplifier is a Line MATV Domestic amplifier with 3 outputs (2+TV) to extend the terrestrial television domestic network.
The TV output provides a lower gain for direct connection to the television set (no outlet installation).
Equipped with LTE700/5G filtering.

Highlights
  • Low-impact visual design and limited size
  • Integrated high-performance switched-mode power supply (40% less than a standard amplifier )
  • Fully automated manufacturing subject to the most stringent quality controls



Main features
  • Manual gain control, protected by a folding cover
  • Can be wall-mounted using screws
  • “F” connectors



SKU: 11-01-0020

Number of outputs 3
TV output Yes
Frequency range MHz
47 ... 694
Gain dB
20
Gain @TV dB
12
Output level DIN45004B dBμV
110
Output level EN50083 IMD3 2tones -60dB dBμV
117
Noise figure dB
6
Input voltage Vac 196 ... 253
Mains frequency 50 Hz / 60 Hz
Max. current mA 23
Max. power consumption W 2.3
Operating temperature °C -5 ... 45
Protection index 20

Additional information

Brand

Televes

Downloads

Product Sheet
