AX1800 Wi-Fi 6 Wall-Plate AP Omada TP-Link

Model: EAP615-Wall
SKU: 44-01-0012
In Stock
130,90
In Stock
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
1 Working Day Delivery ACS
Speedy and reliable parcel delivery!
SKU: 44-01-0012 Categories: , Tag:

Download PDF

  • Product Code: EAP615-Wall
  • Manufacturer: Tp-link

Package does not include power supply!

Description

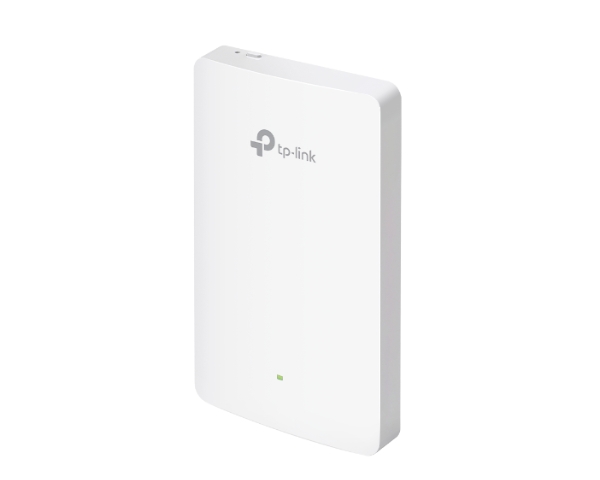

AX1800 Wall Plate WiFi 6 Access Point Omada TP-Link



Superior WiFi 6 Speeds Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.**
High-Perform Connectivity  Guarantee higher network efficiency and lower latency.

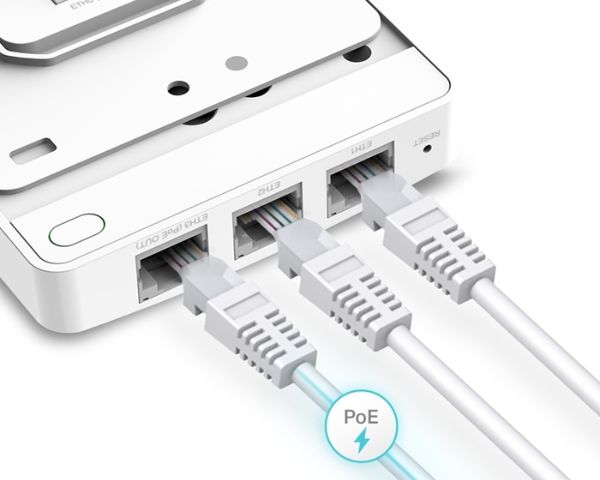

Four Gigabit Ports 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.
Centralized Management  Integrates into Omada SDN for cloud access and remote management.
Secure Guest Network Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Easy Installation and PoE Support Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
HARDWARE FEATURES
Interface • Uplink: 1× 10/100/1000 Mbps Ethernet Port
• Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.)
Physical Security Lock Yes
Button Reset
Power Supply 802.3af/at PoE
Power Consumption EU: 10W (802.3at PoE, PoE Out off)
US: 11.5W (802.3at PoE, PoE Out off)
Dimensions ( W x D x H ) 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
Dimensions 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
Antenna 2 Dual-Band Antennas
• 2.4 GHz: 2× 3 dBi
• 5 GHz: 2× 4 dBi
Mounting Wall Plate Mounting
WIRELESS FEATURES
Wireless Client Capacity 100+△
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: Up to 1201 Mbps
• 2.4 GHz: Up to 574 Mbps
Wireless Functions • 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming†
• Beamforming
• MU-MIMO
• Rate Limit
• Load Balance
• Airtime Fairness
• Band Steering
• Reboot Schedule
• Wireless Schedule
• RADIUS Accounting
• MAC Authentication
• Wireless Statistics
• Static IP/Dynamic IP
Wireless Security • Captive Portal Authentication†
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power • CE:
< 20 dBm (2.4 GHz, EIRP)
< 23 dBm (5 GHz, EIRP)

• FCC:
< 21 dBm (2.4 GHz)
< 21 dBm (5 GHz)

MANAGEMENT
Omada App Yes
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification CE, FCC, RoHS
Package Contents • AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall
• Installation Guide
• Mounting Kits
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Additional information

Brand

Omada TP-Link

Application Example

**NOTE**

For ease, our company can adopt this device to our cloud server for seamless operation

If you want to make it your self please read the next steps!

Adopting a TP-Link Omada business access point for personal use is not much different than setting it up for business use. Here’s a step-by-step guide on how a normal customer can set up and adopt a TP-Link Omada business access point:

  1. Unboxing and Placing the Device:
    • Take out the access point (AP) from its packaging.
    • Choose a suitable location for the AP. Ideally, it should be centrally located in the area you want to cover.
  2. Connecting the Access Point:
    • Use an Ethernet cable to connect the AP to a PoE (Power over Ethernet) switch, or use the provided PoE adapter if one came with your device. This provides both power and a network connection to the AP.
    • If you’re using a PoE adapter, one end of the Ethernet cable will go into the AP, and the other end into the “OUT” port of the PoE adapter. Then connect another Ethernet cable from the “IN” port of the PoE adapter to your router or switch.
  3. Setting up the Omada Controller:
    • The Omada system uses a software-based controller to manage the APs. Download the Omada Controller software from the TP-Link website.
    • Install and run the Omada Controller on a computer that’s connected to the same network.
    • Follow the on-screen instructions to set up the controller. This will involve setting a username and password and some initial configurations.
  4. Adopting the Access Point:
    • Once the Omada Controller software is running, it should automatically detect your AP. If it’s the first time the AP is being set up, it will appear as “Pending” or “Ready to Adopt.”
    • Click on the AP and choose “Adopt.” This will incorporate the AP into your network and allow the Omada Controller to manage it.
  5. Configuring the Access Point:
    • After adopting, click on the AP again in the Omada Controller interface.
    • You can now configure various settings like the SSID (network name), password, radio channels, and more.
    • Apply the settings. The AP will reboot and start broadcasting the SSID you’ve set.
  6. Advanced Configurations (optional):
    • Omada business access points offer several advanced features suitable for businesses like multiple SSIDs, VLANs, guest networks, bandwidth control, and more. Explore these options if you want more granular control over your network.
  7. Mobile Management (optional):
    • TP-Link offers the Omada app which you can install on your smartphone. This allows you to manage and monitor your APs on-the-go.

Remember to periodically check for firmware updates for both the AP and the Omada Controller software to ensure that you’re running the latest security and performance enhancements.
