Akuvox C313W Touch Screen
- Power over Ethernet
- 800 x 480 Resolution
- 7″ Touch screen
- 8 channel inputs / 1 embedded relay
- supports RS 485
- Dimensions: 200.2 x 132.2 x 27.2
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

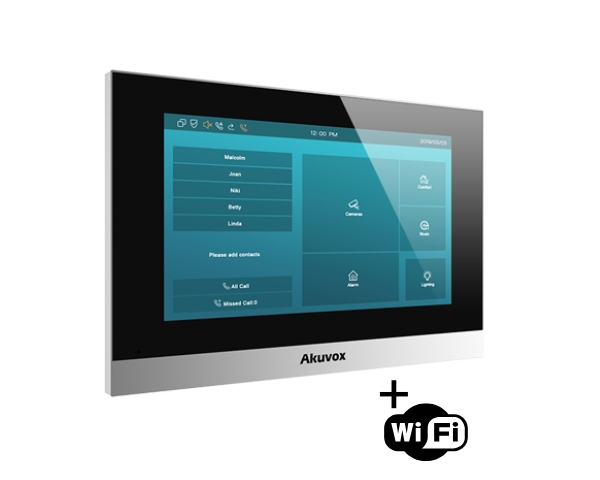

C313W Compact but Powerful Indoor Monitor
Akuvox C313W is a 7″ indoor monitor. Its slim body fits into limited space and offers a fat stack of features. It is typically used in apartments.
C313W Touch Screen 7inch can be controlled over the internet through mobile app
Premium touch screen for your home
The Akuvox C313W multifunctional communicator, with a Linux operating system, provides audio and video communication with door phones via SIP 2.0 protocol. It delivers the ultimate touch screen experience in an unobtrusive, space-saving design featuring a brilliant 7-inch capacitive touch screen display.

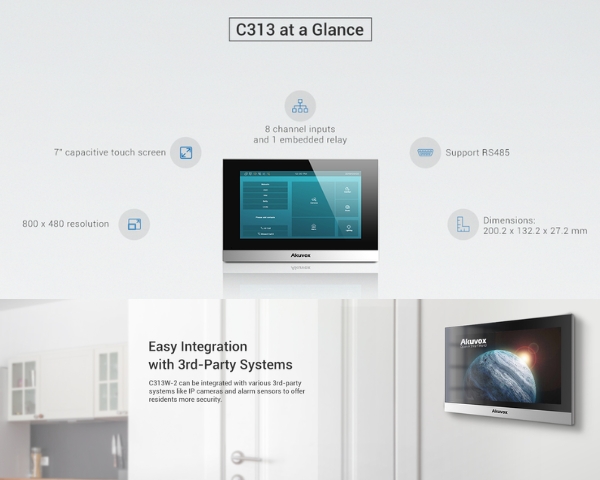

At a Glance
- Ultra-clear, stylish appearance
- Thin profile and small footprint
- 7-inch capacitive touch screen with energy saving mode
- Two-way audio communication with other units in the network
- Complies with SIP standard for easy integration in every SIP capable PBXes
- Powered by PoE or external source
- Support US or European electrical wall box mounting
Physical & Power
- Front panel: Plastic
- RAM / ROM: 64MB / 128MB
- Display: 7 Inch TFT LCD
- Screen: 7 Inch capacitive touch screen
- Wi-Fi: IEEE802.11 b/g/n, @2.4GHz
- RS485 port: Support
- Relay out: 1
- Bell in: 1
- I/O: 8
- Microphone: -58dB.
- Speaker: 4Ω / 2W
- Ethernet ports: 2xRJ45, 10/100Mbps adaptive
- 2-wire ports: 2 pair
- 802.3af Power-over-Ethernet
- 12V DC connector (if not using PoE)
- Installation: Wall-mounted & Desktop
- Dimension: 200.2×132.2×27.2mm
- Working Humidity: 10~90%
- Working Temperature: -10°C ~ +45°C
- Storage Temperature: -20°C ~ +70°C
Touch Screen Display
- Display Mode: Normally white, Transmissive
- LCD Size: 7inch (Diagonal)
- Resolution: 800×480
- Contrast ratio: 500:1
- Luminance: 220 cd/m2
- Viewing Angle: 50° Left, 50° Right, 40° Upper, 50° Lower
- Touch Screen: Projected capacitive
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Broadband audio codec: G.722
- DTMF: Out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
Video
- Streaming formats: H.264
Networking
- Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, AR
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Firmware upgrade
- System logs (include door access logs)
Application Scenario
- Old villas retrofit
- Old apartment retrofit
