8CH POE NVR NST-NVR7508P-4K

Model: NST-NVR7508P-4K
SKU: 24-14-0007
In Stock
196,35
In Stock
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
1 Working Day Delivery ACS
Speedy and reliable parcel delivery!

Download PDF

Description

8CH 4K H.265 Plug and Play PoE NVR With 8 Port DC48V Output

Model No. NST-NVR7508P-4K
System Main processor Hi3536C
Operating system Embedded Linux
System resource Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Interface Operation interface 16-bit true color graphic menu operation interface, support mouse operation
Preview 1/2/4/6/8/9/16
Video Video input (IP) 16ch 4K ( Access bandwidth 240Mbps , Need to dock with Gigabit POE module )
Video compression H.265AI/H.265+ (Compatible with H.265/H.264)
Display quality Max: 4K
Playback quality 4K/5M/4M/3M/1080P
VR Unsupport
human shape / Face Support(depend on camera)
Audio Audio compression G.711A
intercom support
Record and playback Record mode Manual>Alarm>Dynamic Detection>Timing
Local payback(real-time+Unreal-time) 4K ( 1+2 ) /5M ( 2+3 ) /4M ( 2+5 ) /3M ( 3+6 ) /1080P ( 5+9 )
Search mode Search by Time/Calendar/Event/Channel/Face
Storage and back up Record Storage HDD 、 network
Backup mode Network backup, USB hard disk, USB burner, SATA burner
Interface Video output 1ch VGA , 1ch HDMI HD output
Audio I/O 1/1 ( 3.5MM )
Alarm I/O 0/0
Network interface The expansion board provides a network connection
USB interface 2*USB2.0 ports
Hard disk 2* SATA(Up to 14TB for each disk
Serial interface No
Wireless interface 3G, WIFI (extension via USB)
Other ONVIF Support
Power supply Expansion board 12V power supply
Power Consumption <10W(Without HDD)
Work environment Temperature:0 ℃ - 55 ℃ , Humidity:10% - 90%RH , Atm:86kpa - 106kp
Dimension L350*W275*H80MM
Weight 1.6KG

Features

Support VGA, HDMI full HD output simultaneously;

Support ONVIF; access third party;

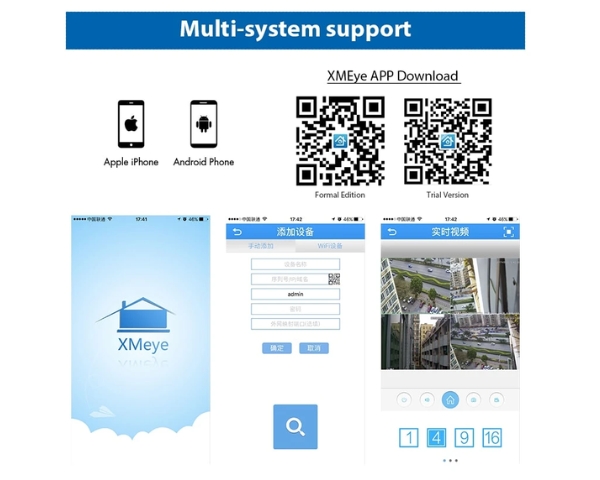

Support Web, CMS, center platform management software XMEYE, provide SDK development;
Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
Support various mobile monitoring (iPhone, Android);
Remote Access, With DNS (ARSP),easy to monitor remotely.
