Name: C313S Touch Screen
SKU: 3773
Price: 155.00 EUR
Availability: InStock

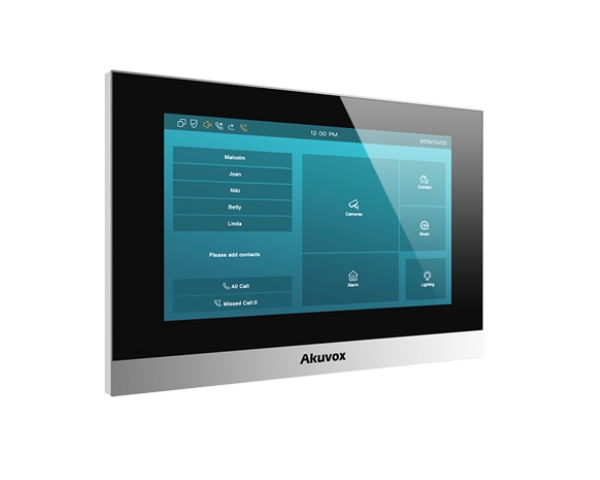

C313S Touch Screen

155,00 € inc. VAT

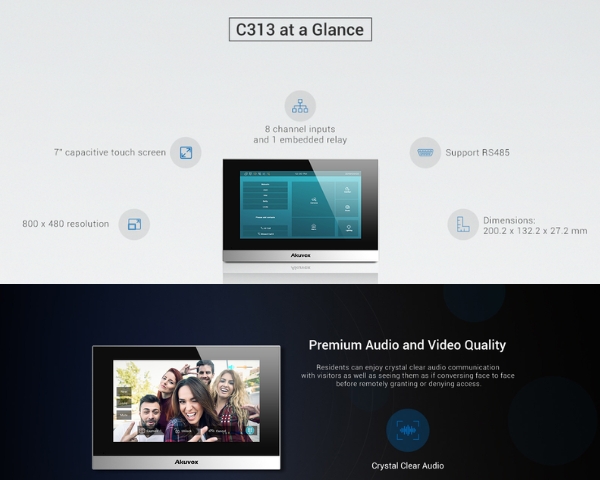

Premium touch screen 7 inch

7-inch capacitive touch screen with energy saving mode

Two-way audio communication with other units in the network

8 channel inputs & 1 embedded relay

Powered by PoE or external source

Dimension: 200.2×132.2×27.2mm

BACK TO SMART HOME

C313S Touch Monitor

C313S Touch Screen

Physical & Power

Touch Screen

Audio/Video

Deployment & Maintenance

Front panel: Plastic

RAM / ROM: 64MB / 128MB

Screen: 7 Inch TFT LCD touch screen

Wi-Fi: IEEE802.11 b/g/n, @2.4GHz

RS485 port: SupportRelay out: 1

Bell in: 1I/O: 8Microphone: -58dB

Speaker: 4Ω / 2W

Ethernet ports: 2xRJ45, 10/100Mbps adaptive

Power: 802.3af Power-over-Ethernet or

12V DC connector (if not using PoE)

Installation: Wall-mounted & Desktop

Dimension: 200.2×132.2×27.2mm

Display Mode: Normally white, Transmissive

LCD Size: 7inch (Diagonal)

Resolution: 800×480

Contrast ratio: 500:1

Luminance: 220 cd/m2

Viewing Angle: 50° Left, 50° Right, 40° Upper, 50° Lower

Touch Screen: Projected capacitive

Video Streaming Formats: H.264

Audio format: SIP v1 (RFC2543), SIP v2 (RFC3261)

Narrowband audio codec: G.711a, G.711μ, G.729

Broadband audio codec: G.722DTMF: Out-of-band

DTMF (RFC2833), SIP Info

Echo cancellation

Auto-Provisioning

Web management portal

Web-based packet dump

Configuration backup / restore

Firmware upgrade

System logs (include door access logs)

Networking Protocols support:	IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

C313S Touch Screen 7inch can be controlled over the internet through mobile app

PROVIDED BY AKUVOX

AKUVOX	Screen
