C703FCKZ – Cat6A 10G 4PR FTP 23AWG Solid OFC Conductors, PVC LSZH Jacket 305m Pull Box with reel, FLUKE PASSED
Technical Details
- Transmission 1000Mbps @ 500MHz CAT6A cable
- High-quality 23AWG

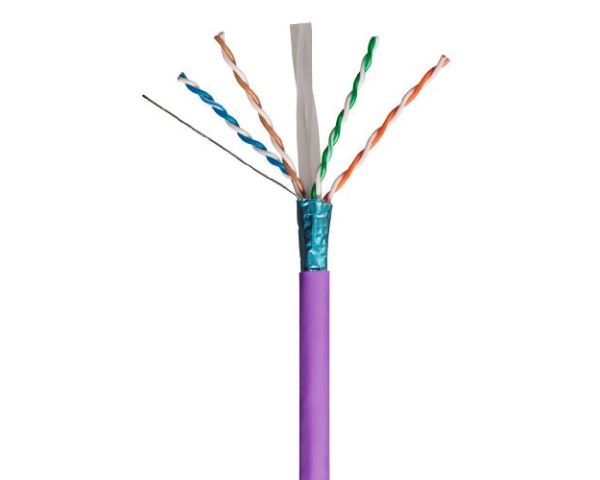

- 4-Pair FTP Solid Oxygen Free CU (OFC) Conductors
- Conductor Dia.: 0.58mm±0.01mm
- Pair Insulation: HDPE (High Density Polyethylene), OD 1.18 ± 0.05mm
- Paired Pitch:
- blue/blue&white 12mm
- orange/orange&white 16mm
- green/green&white 14mm
- brown/brown&white 18mm
- Shielding: Aluminum-Polyester (PET, Al Foil)
- Foil: 110% Coverage
- Ideal for high-speed applications including Gigabit Ethernet
- Exceeds TIA/EIA-568C.2, ISO/IEC 11801
- ISO9001, CE, RoHS Compliant
- Outer jacket material: PVC LSZH (Polyvinyl chloride low smoke zero halogen)
- Outer jacket color: Purple
- Outer Cable Diameter: 7.5± 0.2 mm
- Cross/Separator: PE
- Rip cord: Nylon
- Drain/Ground wire: 1/0.40mm CuSn

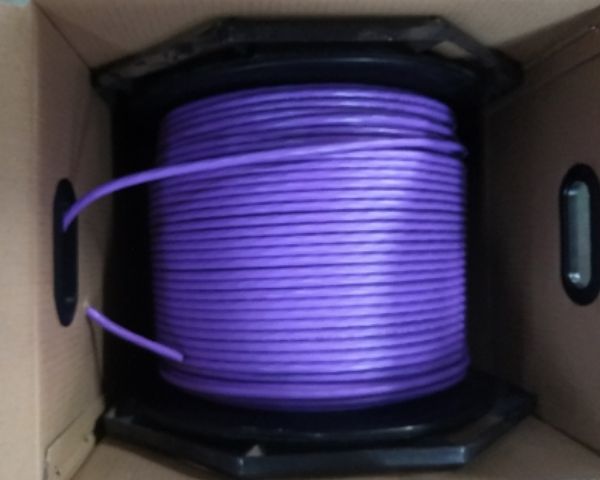

- Pull Box with reel in box
- Length: 305m
| Weight | 18 kg |
|---|
