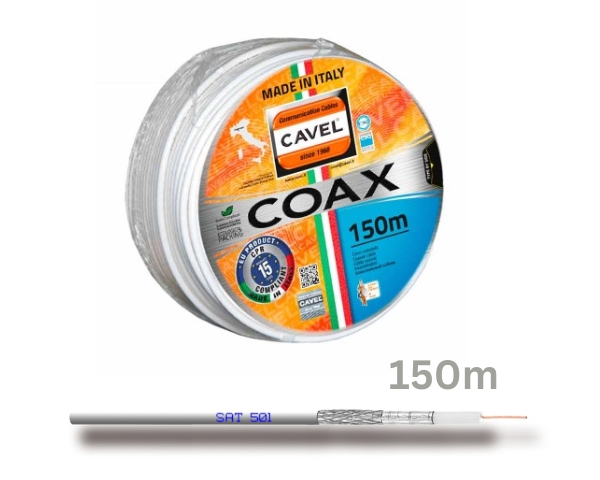

CAVEL SAT501 150m Indoor RG59

Model: SAT501
SKU: 06-10-0001
In Stock
85,68
In Stock
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
1 Day Delivery
Speedy and reliable parcel delivery!

Download Catalog

  • Indoor installation cable
  • 5,00 mm

Description

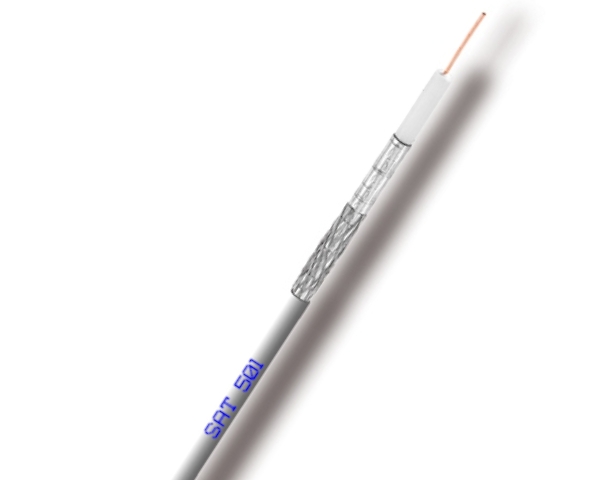

CAVEL Double Shielded Coaxial Connection Cable for Wide Band – 75 Ohm SAT501

CONSTRUCTION DATA
Inner Conductor Ø mm 0,80
material Cu
Dielectric Ø mm 3,50
material PEG
Film Foil Laminate material APA
Braid material CuSn
Braid Optical Coverage % 47
Diameter over Braid Ø mm 4,00
Outer Sheath Ø mm 5
material PVC
PHYSICAL DATA
Copper Content kg/km 8,9
Cable Weight kg/km 23,9
Min bending radius x 1/n mm 25/50
Max.Tensile Strength N 90
ELECTRICAL DATA
Impedance Ohm 75±3@200 MHz
Capacitance (@1kHz) pF/m 52 ± 2
Velocity Ratio % 85
Attenuation (at 20°C )
at 5 MHz dB/100m 2,3
at 10 MHz dB/100m 2,8
at 30 MHz dB/100m 4,6
at 50 MHz dB/100m 5,6
at 200 MHz dB/100m 10,9
at 300 MHz dB/100m 13,7
at 470 MHz dB/100m 17,4
at 862 MHz dB/100m 23,3
at 1000 MHz dB/100m 25,2
at 1750 MHz dB/100m 34,0
at 2150 MHz dB/100m 38,2
at 2400 MHz dB/100m 40,4
at 3000 MHz dB/100m 44,2
Structural return loss (SRL)
at 5 - 470 MHz dB >30
at 470 - 1000 MHz dB >28
at 1000 - 2000 MHz dB >26
at 2000 - 3000 MHz dB >22
Transfer Impedance (Zt) Class C
5 - 30 MHz mOhm/m < 23
Screening Attenuation (SA) Class B
at 30 - 1000 MHz dB >80
at 1000 - 2000 MHz dB >80
at 2000 - 3000 MHz dB >75
DC Conductor Resistance inner/outer Ohm/km 35,0 / 26,0
Loop resistance Ohm/km 61,0
Sheat Insulation voltage (spark test) kV 2,5
Maximum current (Ieff) A 4
