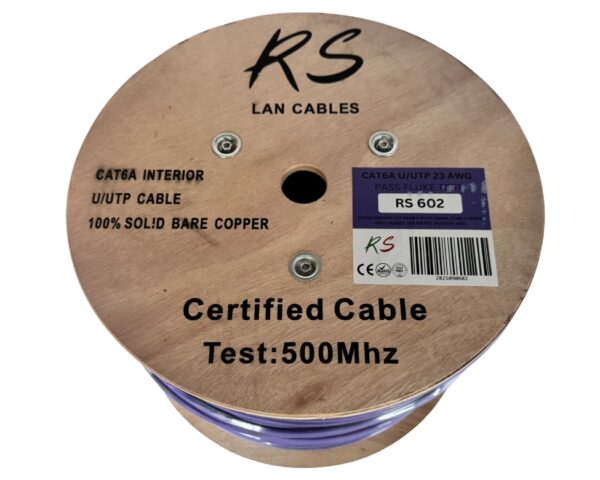

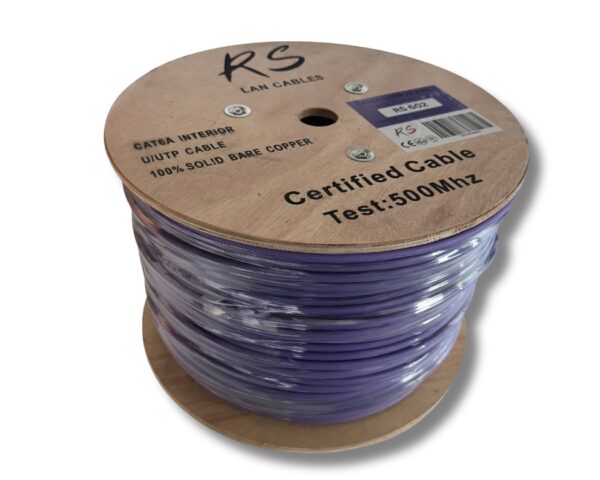

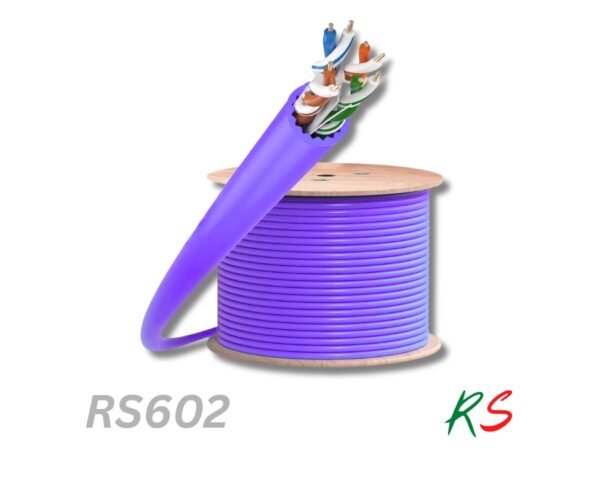

The RS602 CAT6A U/UTP LAN Cable comes on 305m W00den Reel and is a premium structured cabling solution designed for high-performance and safety-critical installations. Built with 100% solid bare copper conductors (AWG23) and tested up to 500MHz, it delivers superior bandwidth, lower resistance, and excellent signal stability. Featuring an LSZH (Low Smoke Zero Halogen) jacket, this cable is ideal for indoor environments where fire safety is essential. Supplied on a 305-meter wooden reel, it is perfect for professional LAN installations in offices, data centers, hotels, and commercial buildings.
Technical Features
- Class: Cat 6A
- Type: U/UTP CAT. 6A CU LSZH 23AWG
- Comply with TIA/EIA-568B.2-1
- Polyehtylene conductor insulation, 1.02 mm diameter
- Conductor: material: Solid copper, diameter (mm): 0.56± 0.02, type: AWG 23
- Ιsolation material: Polyehtylene, diameter (mm): 1.02
- Filler: Polyethylene
- Outer sheath: material: LSZH
- Diameter (mm): 7.2 ± 0,2, thickness (mm): 0,56 ± 0,05
- Nominal impedance Ohm: 100 ± 15
- Transfer rate up to 10 Gbps
- Frequency range of up to 500MHz
- Enviromental Operating temperature °C -25 … 70
- Color: Violet
- Packing: Wooden Reel 305m, with cable consumption indicator
- Packing Quantity: 1 pc / 350m

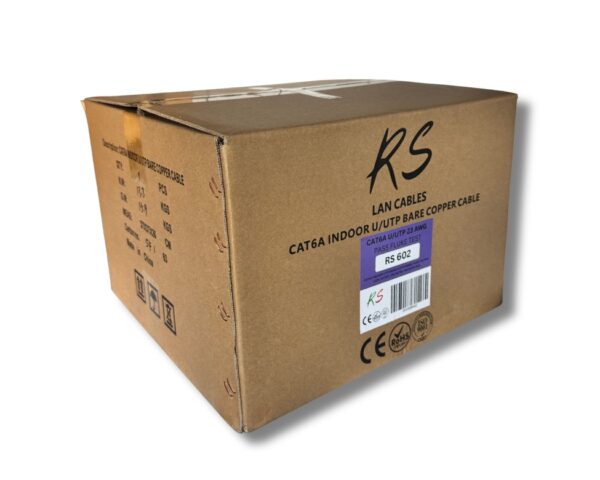

- Carton Size: 370x370x260mm
- Net Weight: 13.3kg
- G.Weight: 15.9kg
| Weight | 15.9 kg |
|---|---|
| Dimensions | 37 × 37 × 26 cm |
| Manufacturer | RS |
| LAN Category | Cat6a |
| LAN Type | UTP |
| Length | 305.00m |
