Fiber optic pigtails are designed to support fusion and mechanical splicing for fiber cabling systems. They provide a fast way to make communication devices in the field.
The OS2 bend-insensitive fiber optic pigtails have less attenuation when bent or twisted than traditional fiber optic pigtails, making installation and maintenance more efficient.

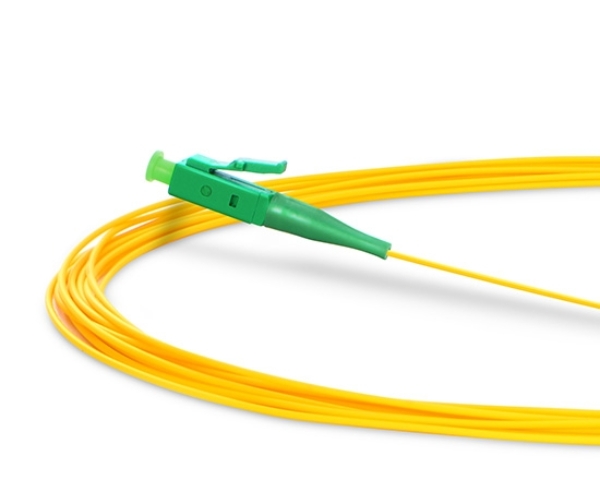

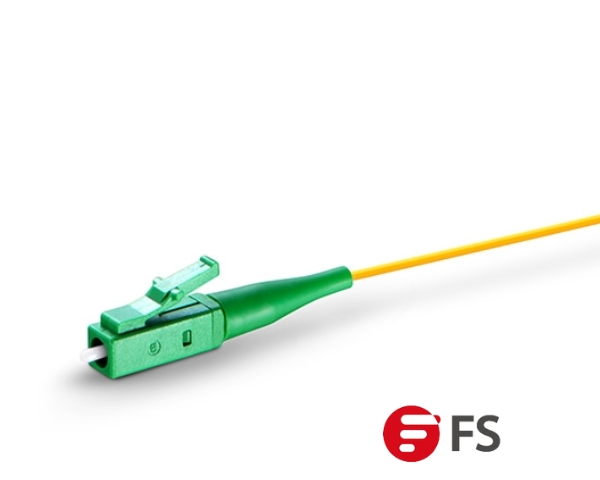

LC APC Single Mode Splicing Pigtail 0.9mm
1/ 2 m
- G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
- Precision Zirconia Ferrule Connectors Ensure Low Loss
- Easy-strip 900µm Tight-buffered Coating
- Industry Standard PVC Flame-retardant Cable Jacket
- Support Both Fusion and Mechanical Splicing
Price range: 3.92 € through 4.33 €
Product Code:46-07-002X
Manufacturer:FS
Estimated delivery dates: Oct 13, 2026 - Oct 15, 2026
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
1-3 DAYS DELIVERY
Oct 11 Oct 13
Description
Additional information
Specifications
Shipping Info
Fiber Pigtail, LC APC to Unterminated, Simplex, OS2, OFNR, 0.9mm
| Fiber Cable Connector | LC/APC |
|---|---|
| Fiber Count | 1 |
| Fiber Mode | Single Mode |
| Length | 1.00m, 2.00m |
| Manufacturer | FS |
Specifications
| Specification | Details |
|---|---|
| Connector A | LC APC Simplex |
| Connector B | Unterminated |
| Fiber Count | 1 Fiber |
| Fiber Grade | G.657.A1 |
| Fiber Mode | OS2 9/125μm |
| Wavelength | 1310/1550nm |
| Jacket Color | Yellow |
| Cable Type | Tight-Buffered |
| Cable Outside Diameter (OD) | 0.9mm |
| Cable Jacket | PVC (OFNR) |
| Min. Bend Radius (Optical Fiber) | 10mm |
| Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 Times |
| Standard | RoHS Compliant |
| Attenuation at 1310nm | 0.36dB/km |
| Attenuation at 1550nm | 0.22dB/km |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Vibration | ≤0.2dB |
| Interchangeability | ≤0.2dB |
| Operating Temperature | -40 to 75°C (-40 to 167℉) |
| Storage Temperature | -45 to 85°C (-49 to 185℉) |
