LC/UPC Quad SM Fiber Optic Adapter RS460117
Model: RS460117
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

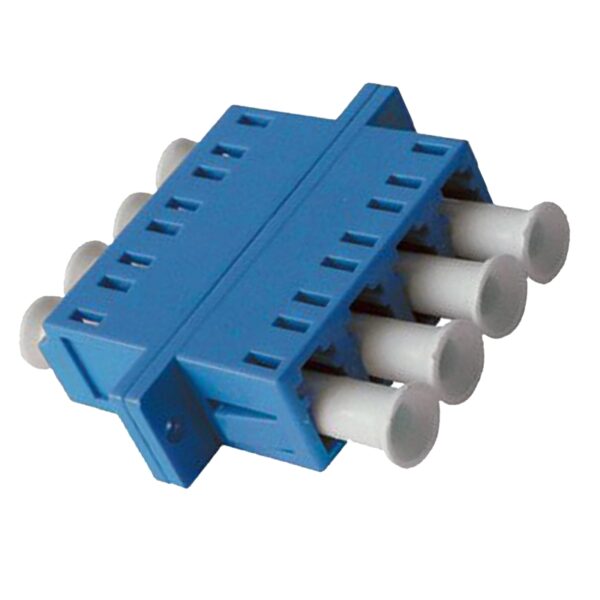

The RS460117 LC/UPC Quad SM Fiber Optic Adapter is built for high-density single-mode applications requiring compact and efficient connectivity. Designed with four LC/UPC ports, this quad adapter enables simultaneous connections with excellent alignment thanks to its zirconia ceramic sleeves.
With low insertion loss, high return loss, and a durable blue polycarbonate housing, it is perfect for FTTH, CATV, ODF frames, and high-capacity patch panels in telecom and enterprise networks.
| Specification | Value |
|---|---|
| Model | RS460117 |
| Connector Type | LC/UPC Quad |
| Ports | 4 (Quad) |
| Fiber Mode | Single Mode (SM) |
| Polish Type | UPC (Ultra Physical Contact) |
| Insertion Loss | ≤ 0.2 dB |
| Return Loss | ≥ 50 dB |
| Sleeve Material | Zirconia Ceramic |
| Housing Material | Polycarbonate (Blue) |
| Durability | > 500 mating cycles |
| Operating Temperature | -40°C to +85°C |
| Applications | ODF racks, FTTH, CATV, patch panels, telecom |
| Fiber Cable Connector | LC/UPC |
|---|---|
| Fiber Mode | Single Mode |
| Fiber Count | 4 |
