High Quality and Cost-effective 50/125μm OM4 Multimode Bend Insensitive Fiber Optic Cable
The 50/125μm OM4 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.
This 50/125 OM4 multimode fiber optic cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 40G/100G applications.

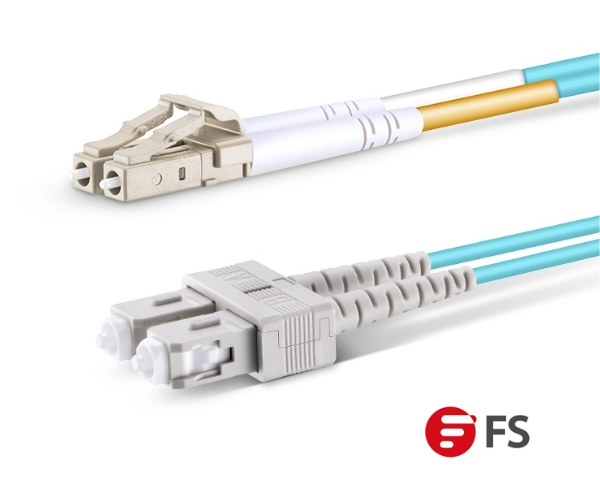

Connector Type: LC UPC to SC UPC
Fiber Grade: Bend Insensitive
Fiber Mode :OM4 50/125μm
Wavelength: 850/1300nm
40G Ethernet Distance : 150m at 850nm
100G Ethernet Distance : 100m at 800nm
Insertion Loss: ≤0.3dB
Return Loss : ≤30dB
Min. Bend Radius : (Fiber Core) 7.5 mm
Min. Bend Radius (Fiber Cable) : 20/10D (Dynamic/Static)
Attenuation at 1310 nm : 3 dB/km
Attenuation at 1550 nm : 1 dB/km
Fiber Count : Duplex
Cable Diameter: 2.0mm
Cable Jacket: PVC
Polarity: A (Tx) to B (Rx)
Operating Temperature : -20~70°C
Storage Temperature : -40~80°C
AVAILABLE IN 1 / 3 m
1m- 40271
3m – 40275
| Length | 1.00m, 3.00m |
|---|---|
| Fiber Count | 2 |
| Fiber Cable Connector | SC/UPC, LC/UPC |
| Fiber Mode | Multi Mode |
| Manufacturer | FS |
