ODF Metal 48 Port Empty Rack Mount 2U RS461309-E
Sliding Drawer Type Fiber optic patch panel are the auxiliary equipment for terminal wiring in optical fiber transmission communication network, which is suitable for indoor optical cable splice directly and branch connection, and protective the fiber.
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

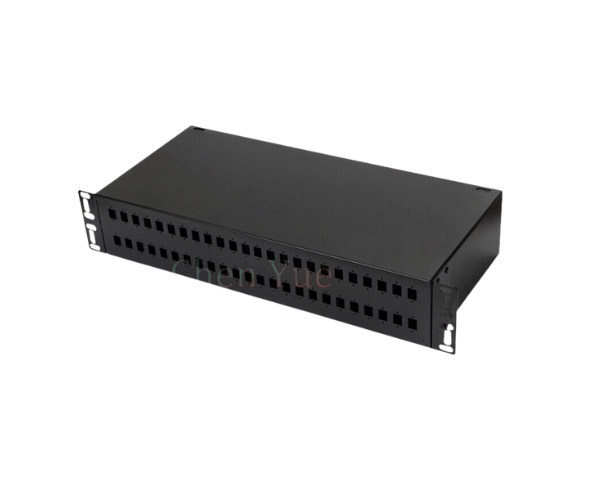

ODF Metal 48 Port Empty Rack Mount 2U RS-SA48B-E
ODF Metal 48 Port Empty Rack Mount 2U Fiber Optics Patch Panel. It is suitable for the use in telecommunication networks, central office optical cable systems, and premise fiber networks. One cabinet design provides OSP cable fibers and pigtail splicing, patch cords termination, and storage.
Features
- Â Applicable in the termination and 19” standard structure,
- Â Rack mount in optical distribution frame ODF
- Â Suitable for FC ,SC, ST, LC, E2000 adapter
- Â 1.0 mm Cold rolled steel sheet, with electrostatic spraying
- Â Metal sliding tray of the splice tray and bottom, easy and fast to operate without open the cove
- Â Clip cover design, dust proof and whole box closed not in operation
- Â Total front operation with cable clamps and routing area, large fiber storage
- 4 Cable entry ports at back, diameter can be customized, normally 20mm
- Box color can be customized, white, black,etc.
- Â Silk print or laser mark both available.
- Â All the metal parts are stainless steel for long life span guarantee.
430*250*2U
Technical Specification
Width : 430 mm
Deepth : 250mm
Height : 2U
Max capacity : 48 cores
Material :Â 1.0 mm cold rolled steel SPCC
Cable exit port SC FC LC ST , etc adapter port
Material coating Powder
Operating temperature -10~+85°C
Standards TIA/EIA 568.C, ISO/IEC 11801, ENS50173, IEC60304, IEC61754, EN297-C,
CEA/EIA-310-E, ANSI/TIA/EIA-606-A, GR-449-CORE, RoHS
IP Rating : IP20
Standards :Â IEC61300, IEC61754, ROHS, etc
| Output ports | 48 |
|---|
