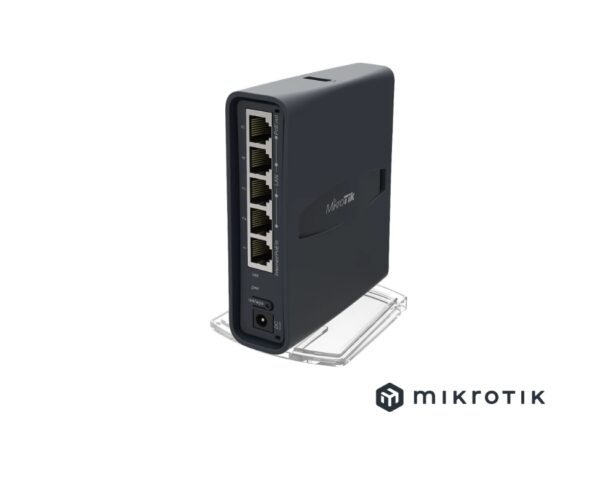

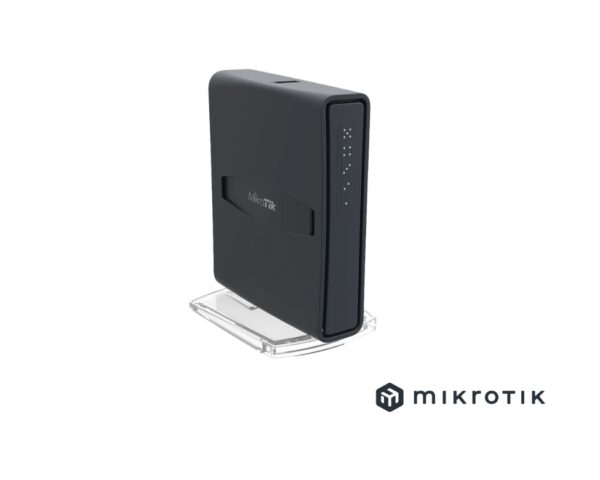

Mikrotik hAP ac lite TC RB952Ui-5ac2nD-TC
- Dual-Concurrent 2.4/5GHz AP, 802.11ac, Five Ethernet ports, PoE-out on port 5, USB for 3G/4G support, universal tower case
Features
The hAP ac lite is a Dual-concurrent Access Point, that provides WiFi coverage for 2.4GHz and 5GHz frequencies at the same time.
Unit is equipped with a 650MHz CPU, 64MB RAM, five 10/100Mbps Ethernet ports (PoE output on port #5), dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11a/n/ac 5GHz wireless, USB port for 3G/4G modem and a RouterOS L4 license.

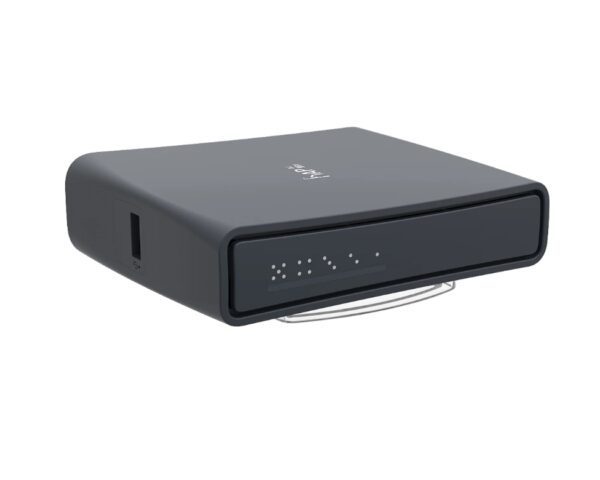

New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.
We have two versions available – RB952Ui-5ac2nD-TC (International) and RB952Ui-5ac2nD-TC-US (USA). RB952Ui-5ac2nD-TC-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed. RB952Ui-5ac2nD-TC (International) supports 2412-2484MHz and 5150MHz – 5875MHz range (Specific frequency range can be limited by country regulations).
| Manufacturer | Mikrotik |
|---|---|
| Device Total Ports | 5 |
| Wi-Fi Generation | WIFI 5 |
Specifications
- Product codeRB952Ui-5ac2nD-TC
- Suggested price$59.00
- ArchitectureMIPSBE
- CPUQCA9531
- CPU core count1
- CPU nominal frequency650 MHz
- Switch chip modelQCA9531
- Dimensions34 x 119 x 98mm
- RouterOS license4
- Operating SystemRouterOS
- Size of RAM64 MB
- Storage size16 MB
- Storage typeFLASH
- MTBFApproximately 100’000 hours at 25C
- Tested ambient temperature-30°C to 70°C
- Wireless 2.4 GHz Max data rate300 Mbit/s
- Wireless 2.4 GHz Number of chains2
- Wireless 2.4 GHz standards802.11b/g/n
- Antenna gain dBi for 2.4 GHz1.5
- Wireless 2.4 GHz chip modelQCA9531
- Wireless 2.4 GHz generationWi-Fi 4
- Wireless 5 GHz Max data rate433 Mbit/s
- Wireless 5 GHz Number of chains1
- Wireless 5 GHz standards802.11a/n/ac
- Antenna gain dBi for 5 GHz2
- Wireless 5 GHz chip modelQCA9887
- Wireless 5 GHz generationWi-Fi 5
- WiFi speedAC750
- 10/100 Ethernet ports5
- Number of USB ports1
- USB Power ResetYes
- USB slot typeUSB type A
- Max USB current (A)1
- Number of DC inputs2 (DC jack, PoE-IN)
- DC jack input Voltage10-28 V
- Max power consumption20 W
- Max power consumption without attachments8 W
- PoE inPassive PoE
- Cooling typePassive
- PoE in input Voltage10-28 V
- PoE-out portsEther5
- PoE outPassive PoE
- Low voltage PoE-Out current limit500 mA
- Max total out (A)500 mA
- CertificationCE, FCC, IC, EAC, ROHS
- IPIP20
