Omada Gigabit VPN Router ER7206
- Centralized Management
- Gigabit Ports
- Up to 4 WAN Ports
- Load Balance
- IPSec/OpenVPN/ PPTP/L2TP
- Multi-Net DHCP
- Powerful Firewall
- Omada App
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
The TP-Link Omada ER7206 Gigabit VPN Router delivers secure, high-performance networking with up to 5 WAN ports, advanced VPN support, load balancing, and Omada SDN cloud management. Ideal for business networks, remote access, and multi-site deployments.
Technical Features
- 1 × Gigabit SFP WAN Port
- 5 × Gigabit Ports
- Up to 5 WAN Connections
- Omada SDN Integration
- Cloud & App Management
- Multi-WAN Load Balancing
- WireGuard VPN Support
- IPSec VPN Support
- OpenVPN Support
- PPTP & L2TP VPN Support
- Static Routing
- Policy Routing
- DHCP Server
- VLAN Support
- IPTV Support
- SPI Firewall
- DoS Protection
- IP/MAC/URL Filtering
- Captive Portal Support
- Fanless Design
- 4kV Surge Protection
Technical Details
- Model: ER7206
- WAN Ports: 1 × Gigabit SFP WAN, 1 × Gigabit RJ45 WAN
- LAN Ports: 2 × Gigabit RJ45 LAN, 2 × Configurable Gigabit WAN/LAN
- Total Ports: 5 × Gigabit RJ45 + 1 × Gigabit SFP
- Flash Memory: 4MB SPI + 128MB NAND
- DRAM: 512MB
- Concurrent Sessions: 150,000
- New Sessions: 5,500/sec
- NAT Throughput: Up to 940 Mbps
- DPI Throughput:
- TCP: 931 Mbps
- UDP: 902 Mbps
- IPS Throughput:
- TCP: 200 Mbps
- UDP: 150 Mbps
- WireGuard Throughput: 177.2 Mbps
- IPSec VPN Throughput: 291.6 Mbps
- OpenVPN Throughput: 34.2 Mbps
- L2TP VPN Throughput:
- Unencrypted: 1360.3 Mbps
- Encrypted: 202.3 Mbps
- PPTP VPN Throughput: Unencrypted: 1379.3 Mbps, Encrypted: 115.6 Mbps
- IPSec VPN Tunnels: 100
- OpenVPN Tunnels: 50
- PPTP VPN Tunnels: 50
- L2TP VPN Tunnels: 50
- VLAN: 802.1Q VLAN
- Routing: Static Routing, Policy Routing
- Security Features:
- SPI Firewall
- DoS Defence
- IP/MAC Binding
- ARP Inspection
- URL Filtering
- Access Control Lists (ACL)
- Management:
- Omada SDN
- Cloud Management
- Web GUI
- SNMP v1/v2c/v3
- Syslog
- Protection: 4kV Surge Protection
- Cooling: Fanless
- Enclosure: Steel
- Power Supply: 100–240V AC, 50/60Hz
- Maximum Power Consumption: 8.95W
- Dimensions: 226 × 131 × 35 mm
- Mounting: Desktop
- Operating Temperature: 0°C to 40°C
| Manufacturer | Omada TP-Link |
|---|---|
| Mount Type | Desktop |
| SFP Ports | With SFP Ports |
| No of SFP Ports | 1 |
| POE Switch | No |
Specifications
| SECURITY | |
|---|---|
| Access Control | Source/Destination IP Based Access Control |
| Filtering | WEB Group Filtering§ URL Filtering Web Security§ |
| ARP Inspection | • Sending GARP Packets§ • ARP Scanning§ • IP-MAC Binding§ |
| Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |

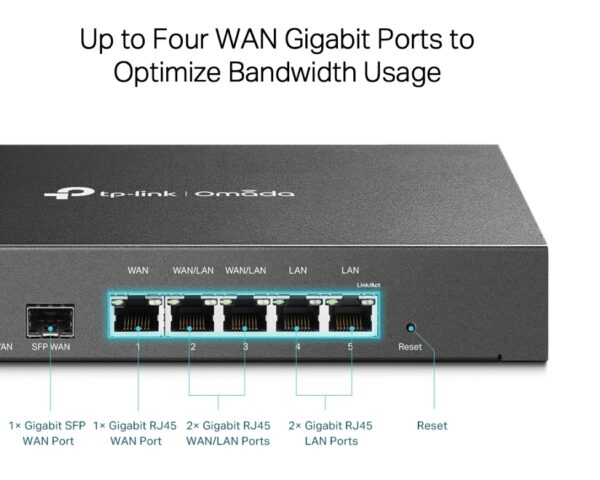

| Interface | • 1 Fixed Gigabit SFP WAN Port • 1 Fixed Gigabit RJ45 WAN Port • 2 Fixed Gigabit RJ45 LAN Ports • 2 Changeable Gigabit RJ45 WAN/LAN Ports |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| Fan Quantity | Fanless |
| Button | Reset Button |
| Power Supply | 100–240 V~50/60 Hz |
| PoE Budget | – |
| Flash | SPI 4MB + NAND 128MB |
| DRAM | 512MB |
| LED | PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act) |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in. (226 × 131 × 35 mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | Desktop |
| Max Power Consumption | 8.95W |
| PERFORMANCE | |
|---|---|
| IPS Throughput | TCP: 200 Mbps; UDP: 150 Mbps |
| DPI Throughput | TCP: 931 Mbps; UDP: 902 Mbps |
| WireGuard VPN | 177.2 Mbps |
| Concurrent Session | 150,000 |
| New Sessions /Second | 5,500 |
| NAT (Static IP) | 940.3 Mbps / 940.2 Mbps |
| NAT(DHCP) | 940.3 Mbps / 940.4 Mbps |
| NAT(PPPoE) | 939.7 Mbps / 937.9 Mbps |
| NAT (L2TP) | 918.0 Mbps / 917.9 Mbps |
| NAT (PPTP) | 918.9 Mbps / 914.7 Mbps |
| 64 Byte Packet Forwarding Rate | – |
| IPsec VPN Throughput (AES256) | 291.6 Mbps |
| IPsec VPN Throughput | 291.6 Mbps |
| OpenVPN | 34.2 Mbps |
| L2TP VPN Throughput | Unencrypted: 1360.3 Mbps Encrypted: 202.3 Mbps |
| PPTP VPN Throughput | Unencrypted: 1379.3 Mbps Encrypted: 115.6 Mbps |
| SSL VPN Throughput | – |
| 66 Byte Packet forwarding rate | 486,918 pps / 488,372 pps |
| 1,518 Byte Packet forwarding rate | 81,274 pps / 81,274 pps |
| BASIC FUNCTIONS | |
|---|---|
| WAN Connection Type | • Static/Dynamic IP • PPPoE • PPTP • L2TP |
| MAC Clone | Modify WAN/LAN MAC Address† |
| DHCP | • DHCP Server • DHCP Address Reservation • Multi-IP Interfaces* • Multi-Net DHCP* |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| ADVANCED FUNCTIONS | |
|---|---|
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | • Static Routing • Policy Routing |
| Bandwidth Control | • IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing§, Failover) • Online Detection |
| NAT | • One-to-One NAT§ • Multi-Net NAT • Virtual Server • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
| Security | • SPI Firewall • VPN Passthrough • FTP/H.323/PPTP/SIP/IPsec ALG • DoS Defence, Ping of Death • Local Management |
| Session Limit | IP-based Session Limit |
| VPN | |
|---|---|
| SSL VPN | – |
| IPsec VPN | • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2* • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • 10 PPTP VPN Clients • 50 Tunnels • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • 10 L2TP VPN Clients • 50 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server* • 10 OpenVPN Clients* • 50 OpenVPN Tunnels* |
| AUTHENTICATION | |
|---|---|
| Web Authentication | • No Authentication • Simple Password* • Hotspot（Local User / Voucher* / SMS* / Radius*） • External Radius Sever • External Portal Sever* • Facebook* |
| MANAGEMENT | |
|---|---|
| Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3* • Diagnostics (Ping & Traceroute)§ • NTP Synchronize§ • Syslog Support |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration • ZTP (Zero-Touch Provisioning)** |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • ER7206 • Power Cord • Quick Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
