POE Injector 60W 52V Gigabit SST-BTG-60
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.

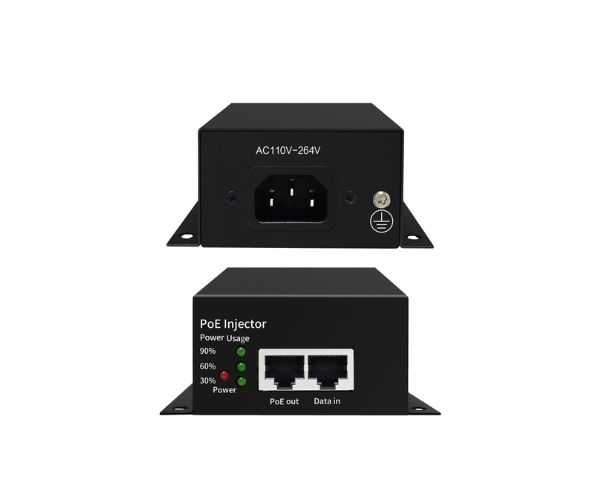

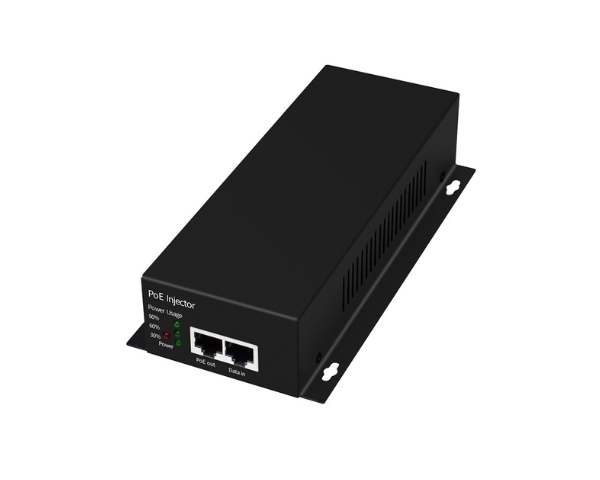

The RS SST-BTG-60W is a high-performance Gigabit PoE Injector designed to deliver both data and power over a single Ethernet cable. Supporting IEEE 802.3af/at/bt standards with up to 60W output power, it is ideal for PTZ cameras, wireless access points, digital signage, mini PCs, and other high-power PoE devices. Featuring industrial-grade protection, surge suppression, power consumption indicators, and a durable metal housing, it ensures reliable operation in demanding environments.
Technical Details
- Model: SST-BTG-60W
- Brand: RS
- Interfaces: 1 × Gigabit RJ45 PoE Output Port, 1 × Gigabit RJ45 Data Input Port
- PoE Standards: IEEE 802.3af (15.4W), IEEE 802.3at (30W), IEEE 802.3bt (60W)
- PoE Power:
- Maximum PoE Output: 60W
- PoE Output Voltage: 52V DC
- Output Current: 1.25A
- PoE Pin Assignment: 1/2-, 3/6+ or 4/5+, 7/8-
- Network Performance:
- 10/100/1000Mbps Gigabit Ethernet
- 10BASE-T: Cat5 UTP up to 250m
- 100BASE-TX: Cat5e and above up to 100m
- 1000BASE-T: Cat5e and above up to 100m
- LED Indicators: Power Status Indicator, PoE Usage Indicators: 30%, 60%, 90%
- Protection Features: ESD Protection: Contact 8KV, Air 15KV, Surge Protection: Common Mode 6KV, Differential Mode 1KV, EFT Protection, Industrial-Grade Design
- Power Input: AC 110–264V, 50/60Hz Frequency
- Applications: PTZ Cameras, IP Cameras, Wireless Access Points, Digital Signage Systems, Mini PCs & Embedded Systems, Industrial Networks
- Operating Temperature: -20°C to 50°C
- Storage Temperature: -40°C to 85°C
- Humidity: 5%–95% RH
- Metal Housing
- IP20 Protection Rating
- Wall-Mount Installation
- Dimensions: 187 × 95 × 40 mm
- Certifications: CE, FCC, CCC, RoHS
- Reliability: Service Life: 100,000 Hours
| Manufacturer | RS |
|---|---|
| Speed | Gigabit |
| Power over Ethernet (PoE) | PoE |
