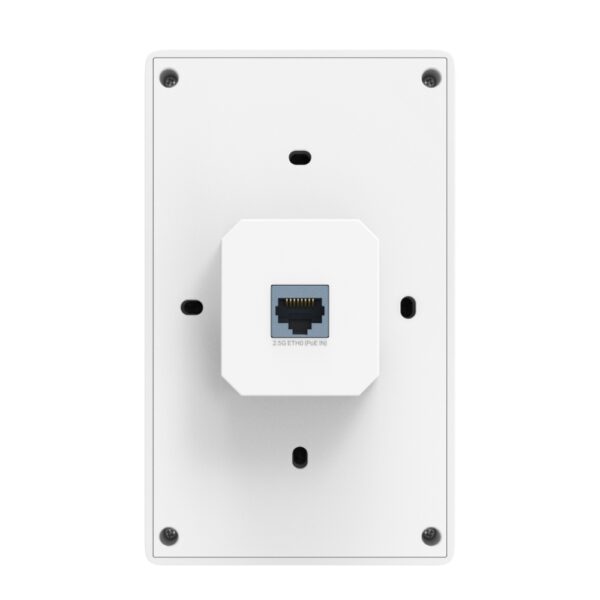

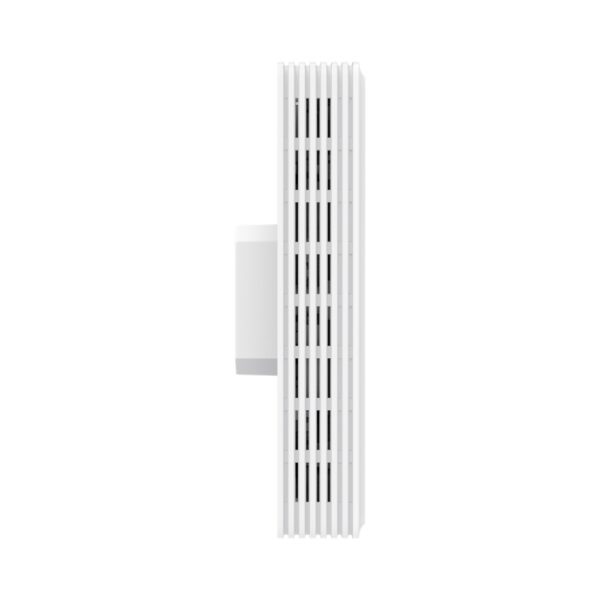

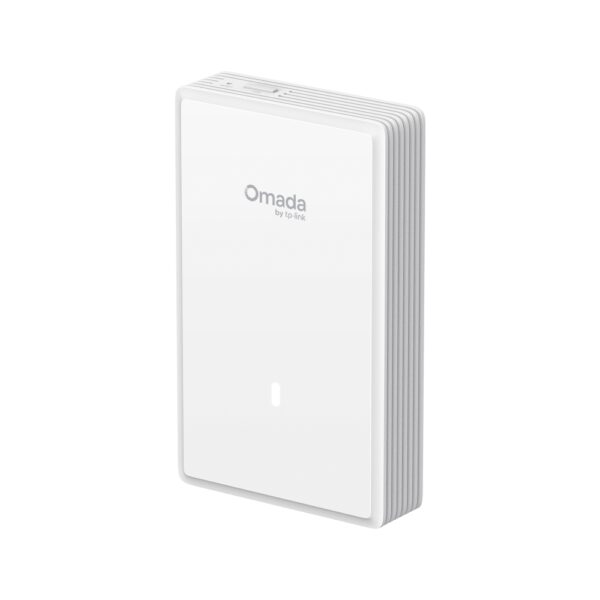

Omada TP-Link BE5000 WiFi 7 AP EAP725-Wall AP
**Package does not include POE Injector
Only 2 left in stock
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
The EAP725-Wall is a BE5000 Wi-Fi 7 wall plate access point designed for high-performance in-room connectivity. Featuring dual-band Wi-Fi 7 speeds up to 5012 Mbps, dual 2.5G ports with PoE flexibility, advanced Wi-Fi 7 technologies, and Omada SDN integration for centralized cloud management.
Technical Features:
- 4-Stream Wi-Fi 7
- Speeds up to 5.0 Gbps
- 2 × 2.5G Port + 2 × 1G Port
- 802.3at/bt PoE
- Enhanced Security
- Centralized Cloud Management
- Omada Mesh & Seamless Roaming
- Compact Design
Highlights
- Dual-Band Wi-Fi 7
- 4324 Mbps on 5 GHz
- 688 Mbps on 2.4 GHz
- 1 × 2.5G PoE Input Port
- 1 × 2.5G PoE Pass-Through Port
- 2 × Gigabit Downlink Ports
- Multi-Link Operation (MLO)
- Multi-RUs
- 4K-QAM
- Coverage up to 70㎡ (750ft²)
- Supports 250+ Concurrent Connections
- Supports 802.3at/bt PoE
- Omada SDN Integration
- Centralized Cloud Management
- Omada Mesh
- Seamless Roaming
| Manufacturer | Omada TP-Link |
|---|
Specifications
| HARDWARE FEATURES | |
|---|---|

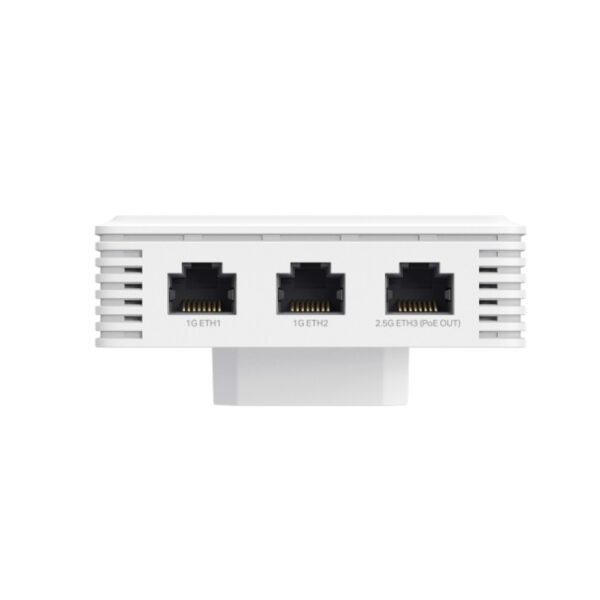

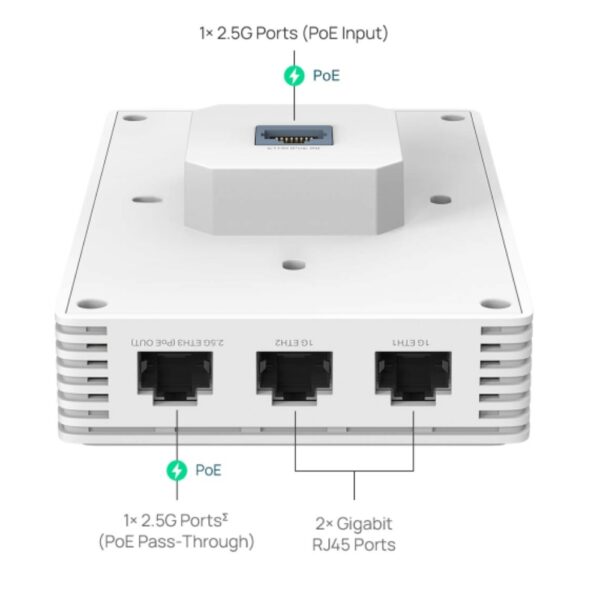

| Interface | • Uplink: 1× 2.5G Ethernet Port • Downlink: 1× 2.5G Ethernet Port + 2× Gigabit Ethernet Ports (The 2.5G port supports PoE pass-through.) |
| Physical Security Lock | No |
| Button | Reset, LED |
| Power Supply | 802.3at/bt PoE |
| PoE Out | PoE Passthrough (Pins 1,2-; 3,6+) The PoE pass-through feature requires 802.3at/bt input. If the power consumption of the AP’s downstream device exceeds 7W, the AP needs an 802.3bt input. |
| Max. Power Consumption | • 802.3bt: 17W (PoE Out support 15.4W) • 802.3at: 17W (PoE Out support 7W) |
| Dimensions ( W x D x H ) | 143 × 86 × 40 mm (5.6 × 3.4 × 1.6 in) |
| Antenna | 4× Internal Antennas • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi |
| Bluetooth | V5.2 |
| Mounting | Wall Mounting (Screws included) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | System Log |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 750ft² (70 ㎡)* |
| Concurrent Clients | 250+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 4324 Mbps • 2.4 GHz: Up to 688 Mbps |
| Wireless Functions | • MLO‡ • 4K-QAM‡ • Multi-RUs‡ • 240 MHz Bandwidth‡ • 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming△ • Beamforming • Rate Limit (Based on SSID/Client) • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP |
| Wireless Security | • Captive Portal Authentication△ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | 4-22 dBm (2.4GHz) 4-22 dBm (5GHz, U-NII-1, U-NII-2A, U-NII-2C, U-NII-3/ISM) |
| OTHERS | |
|---|---|
| Certification | CE, RoHS |
| Package Content | • EAP725-Wall • Installation Guide • Mounting Screws |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
