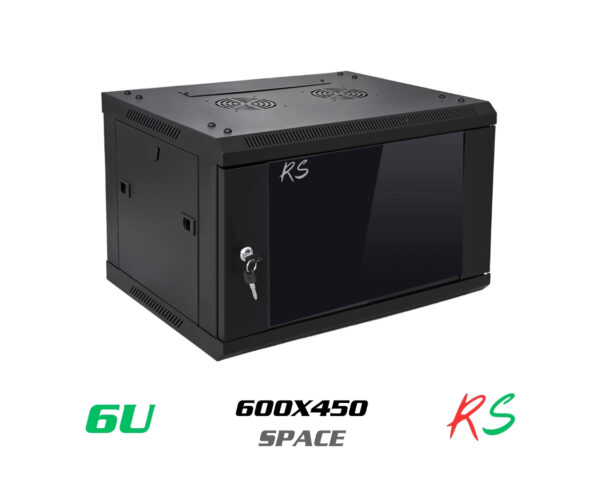

RS 6U 19″ Wall Mount Cabinet 600×450 SPACE
Model: RS6U45W60
- *Not Assembled*
- Fans & Shelfs not included
- Rack Unit: 6U
- Width: 60cm
- Depth:45cm
- Height:36.8 cm
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
RS6U45W60 Wall Mount Cabinet – SPACE Series is a compact and robust 6U 19-inch network rack enclosure, designed for professional installations in homes, offices, and IT environments. Built from high-quality steel with a modern black finish, this cabinet ensures durability, secure equipment storage, and efficient cable management.
With its space-saving wall-mounted design, it is ideal for structured cabling systems, networking equipment, CCTV systems, and small server setups where floor space is limited.
Technical Specifications:
- Type: Wall-Mounted Rack Cabinet 19″
- Code: RS6U45W60
- Rack units: 6U

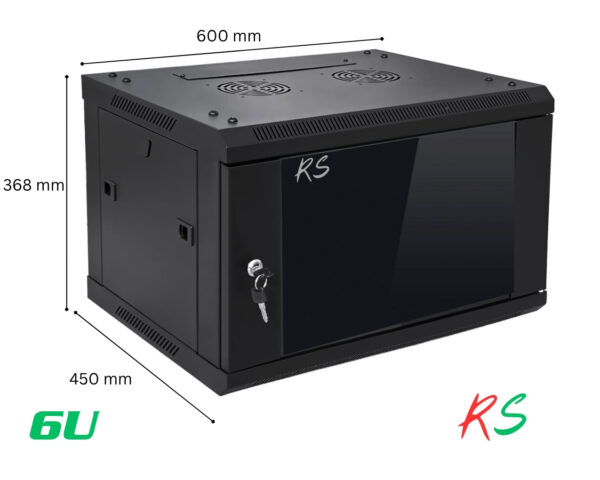

- Dimensions: 600 (W), 450 (D), 368 (H) mm

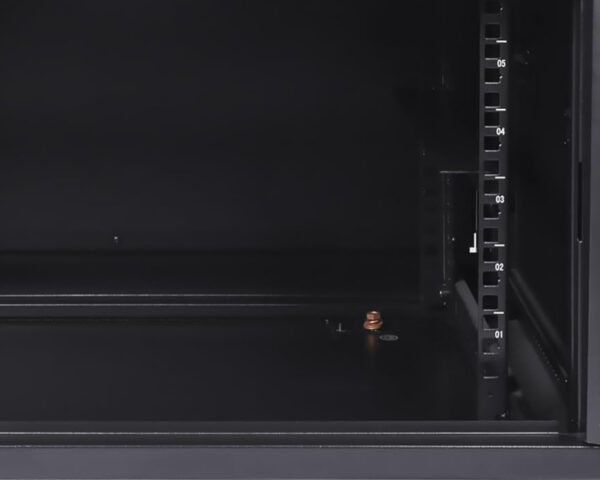

- Rack rails width: 19″ / 483 mm (W)
- Rack rails thickness: 1,2 mm
- Number of doors: 1

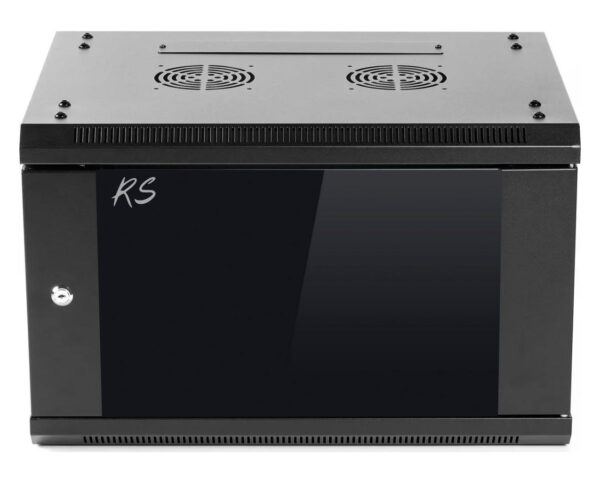

- Front door: Steel frame and glass 5.0mm
- Rear door: No

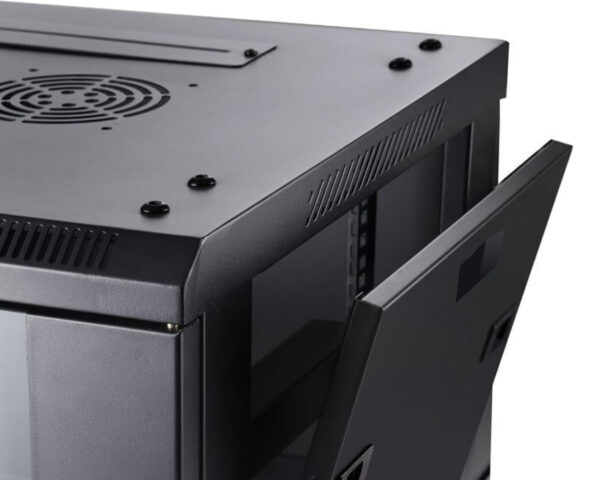

- Removable side panels: Yes,with optional lock place

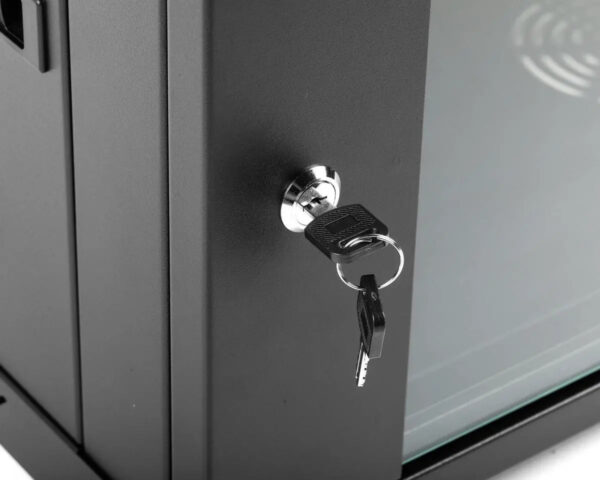

- Locking: on the front door, optional for side panels
- Cable entry: on the top/bottom and rear with removable covers
- Ventilation slots: Yes
- Grounding: Yes
- IP protection: IP20
- Easy Hang System: Yes
- Material, thickness: Steel 1,2mm
- Surface finishing: Electrostatic painting
- Color: RAL 9004 Black
- Packing type: Carton Box, Unassembled

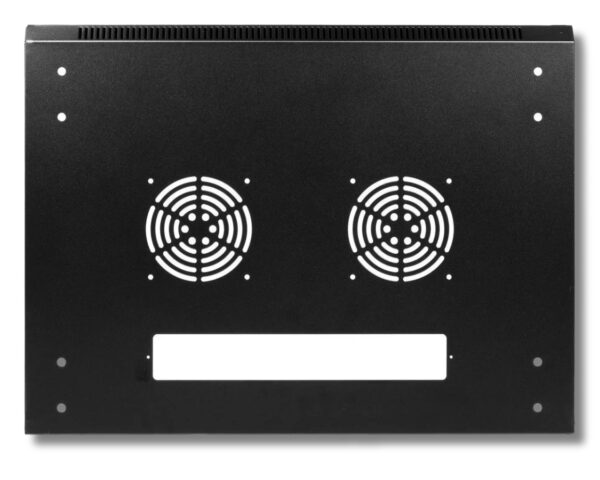

- Fan: Not included/ Fan cutout on the top, easy to install fan
Package includes:
– Wall-Mounted Cabinet 6U
– Cage nuts, washers
– KIT Screws M6
– 2 x Keys
– Assembly Manual
- Flat Packed, For assembly please request upon ordering.(EXTRA COST)
- Returns will not be acceptable for assembled units
| Weight | 17 kg |
|---|---|
| Dimensions | 60 × 45 × 37 cm |
| Manufacturer | RS |
| Cabinet Size | 6U |
| Cabinet Depth | 45cm |
Instructions
Vertical Mounting Rails Installation
Use 2 vertical Rails [7] and adjust the required distance between them on the frame [6].Use a total of 8pcs M5*8 self tapping screws[C] to attach the vertical mounting rails to the both frames – 2screws for each end of the rails
Install Top Cover and Bottom Cover
a) Assembly the Top [1] * Bottom Cover [2] Frames by 16pcs M8*12 inner hexagon screws [A] and 16pcs flange nuts.Do not tighten every screw to max.
b) Regularly pay attention to the position of the top and bottom covers in regards to the holes in the frame.Check the allignment of the four front M4 holes and then tight M8 screws.
Use a total of 4pcs M4*6 self tapping screws [D] to fix the top and bottom covers [1 +2] with frames.

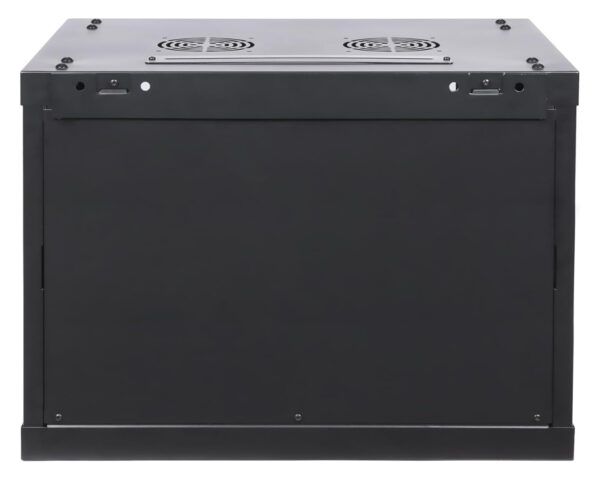

Rear Cabinet cover Installation
Assembly the back panel [5] by 6pcs M4*6 Self tapping screws[D]
Assembly the front door with 1 pcs white plastic washer and bolt
Mounting plate
First Use Expansion screws tofix the Mounting Plate [9] to the wall
Use 2 M4*6 self tapping Phillips screws to fix the cabinet with 2 hooks on the wall
