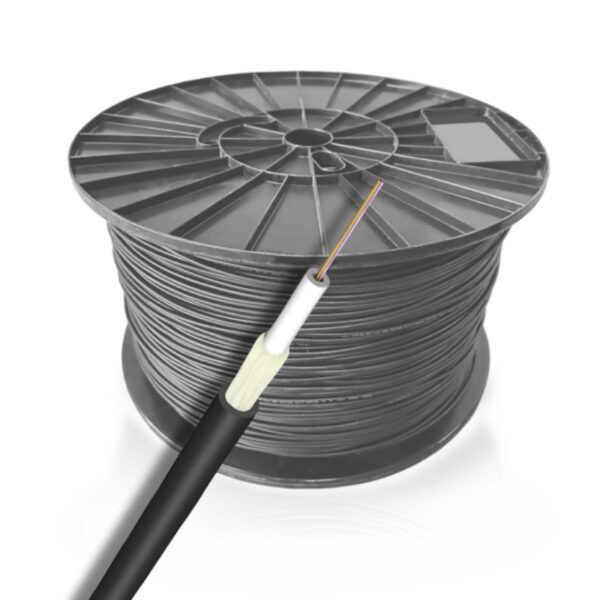

RS461113 4 Core Outdoor Fiber Optic Cable SM GYFSH Loose Tube
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
RS461113 is a compact and lightweight 4 core fiber optic cable designed for both indoor and outdoor network installations. Featuring individually color-coded 250μm buffered fibers inside a gel-filled uni-tube, it provides reliable signal transmission and excellent water-blocking protection.With 1 central loose tube, PBT Aramid yarn as strength member,40 meter span,PE outer sheath, black color is the perfect solution for medium scale installations within buildings.
The durable LSZH/PE outer jacket and aramid yarn strength member ensure high environmental resistance, making the cable ideal for LAN backbones, building distribution systems, ducts, and mixed indoor/outdoor cabling applications. This cable delivers a cost-effective and dependable solution for modern fiber optic networks.
Technical Features
- Cable Length on Roll: 1000 m
- No. of fibers: 4
- Span: 40m
- Strength Member Material: Aramid Yarn
- Fiber type: Single Mode 9/125 (G657A1)
- Cable Size:Â 3.2mm
- Cable Jacket: LSZH/PE
- Attenuation: dB/Km < 0.35(1310 nm); < 0,22 (1550 nm)
- Fiber Cores Type:Â Tight Buffered
- Bending radius without Tension: 15 x Cable φ
- Bending radius with Tension: 20 x Cable φ
- Oper. temperature: C -5…+50
- Color:Â Black
- Cable Application:Â Outdoor
- G.Weight: 10.5kg
- Net Weight: 9kg
| Weight | 10.5 kg |
|---|---|
| Fiber Count | 12 |
| Fiber Mode | Single Mode |
| Manufacturer | RS |
| Length | 1000.00m |
