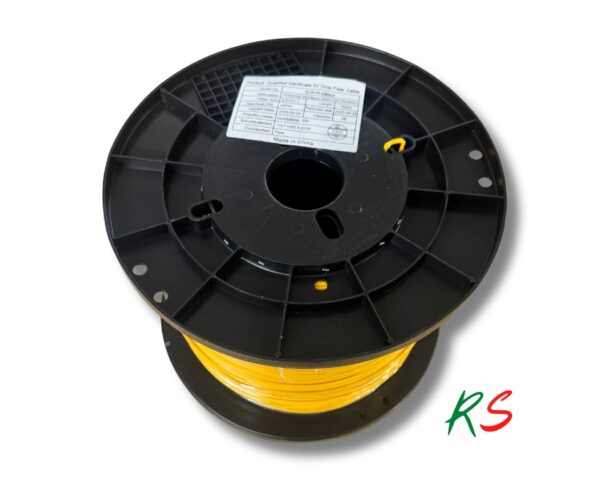

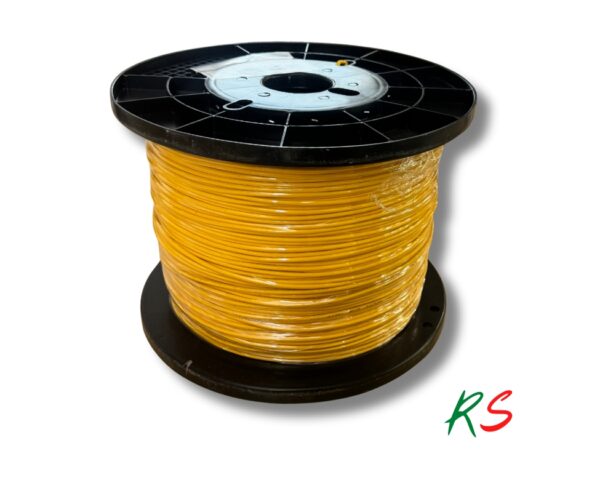

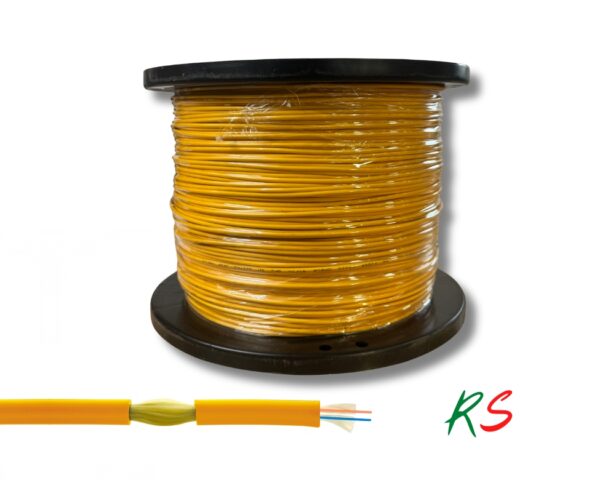

The RS461122 is a 2-core single mode GJFJH tight-buffer fiber optic cable designed for indoor installations, offering high tensile strength, compact diameter and reliable optical performance.
Technical Features
- 2-core single mode (SM) indoor fiber optic cable
- Tight buffer design for easy handling and termination
- LSZH outer sheath – low smoke, zero halogen
- High tensile and crush resistance for secure installations
- Ideal for FTTH, LAN rooms, cabinets and indoor backbones
Technical Specifications
- Fiber type: Single Mode G657A1
- Cable construction: GJFJH – Tight Buffer
- Number of cores: 2
- Tight buffer diameter: 0.9 mm
- Strength member: Aramid yarn
- Outer sheath material: LSZH
- Outer sheath color: Yellow
- Overall cable diameter: 3.5 mm
- Cable weight: approx. 11 kg/km
- Tensile strength:
- Short term: 440 N
- Long term: 130 N
- Crush resistance:
- Short term: 400 N/100mm
- Long term: 200 N/100mm
- Minimum bending radius:
- Without tension: 10× cable diameter
- Under tension: 20× cable diameter
- Operating temperature: −40°C to +70°C
- Installation temperature: −20°C to +60°C
- Length: 500 meters (PLASTIC REEL)
- Tight Buffer Colours
- Fiber Colors: Blue/Orange
| Weight | 8.3 kg |
|---|---|
| Manufacturer | RS |
| Fiber Count | 2 |
| Fiber Mode | Single Mode |
| Length | 500.00m |
