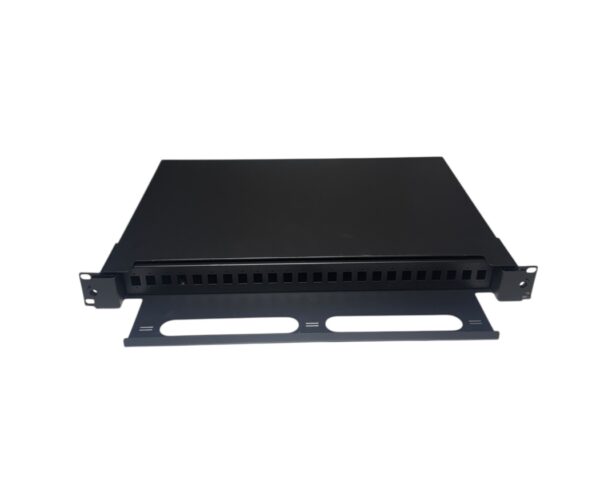

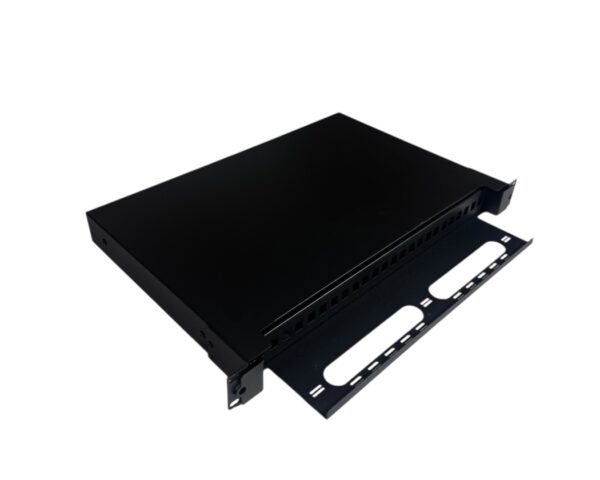

Sliding Fiber Optic Patch Panel 24 Port Empty 1U PPFS24U

PPFS24U – Sliding Type Rackmount Fiber Optic Patch Panel ODF 24-Port Unloaded, 1U, 19″

24-Port sliding type Rackmount Fiber enclosure suitable for quick deployment and easy maintenance. It is used as terminal equipment of fiber optical cable for fiber patching. Provides cross-connect and interconnect capabilities for pigtails in fiber access network. A fiber patch panel usually is composed of two parts, the compartment that contains Fiber Optic Adapter (bulkhead receptacles), and the compartment that contains fiber optic splice trays and excess fiber cables.

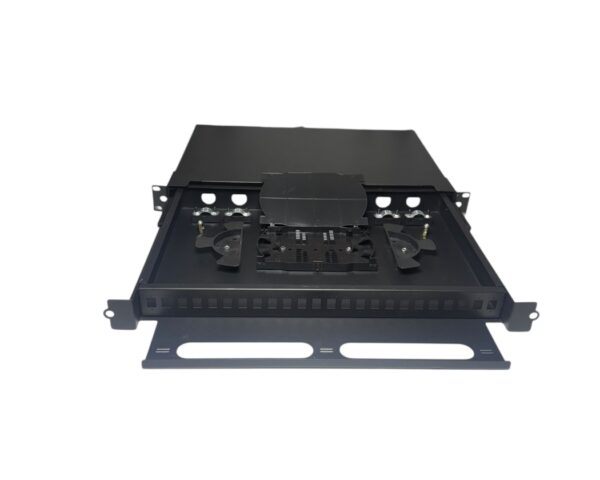

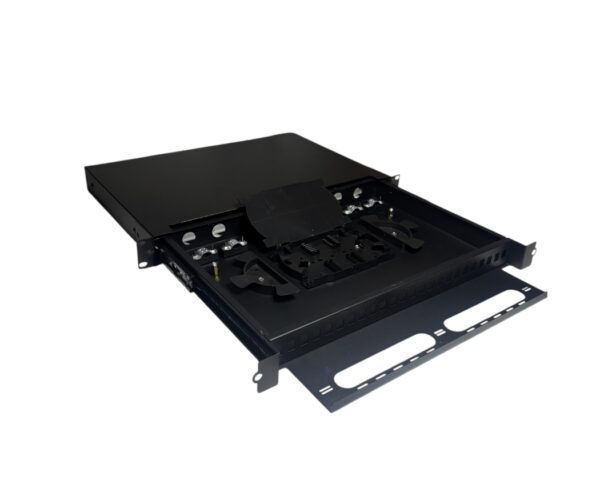

This rackmount patch panel has a sliding design with four cable entries at the rear and a cable management at the front. The sliding rail fiber optic patch panel is made of metal in 19″ standard structure. There are 2pcs of stainless steel rails at the sides of the drawer. A set of bayonets has been attached to the ODF to install the cabling. ABS material has been utilized to form the spice tray, which is accessible for 0.9 mm, 2.0 mm and 3.0 mm fiber cables.

Fiber Optic Distribution Frame (ODF) provision to terminate various fiber connectors. Rear side cable entry provision. Top panel removable provision for easy manage splicing & termination.

It provides high density flexible system for managing fiber terminations, connections, and patching in datacenter applications, maximizing rack space utilization and minimizing floor space.

1U rackmount enclosure guarantees bending rate of fibers, adds protection of the fibers and makes fiber connection and management easier. This splice and termination enclosure provides an economical and quality solution for installations of any size, where direct termination or pigtail splicing is required.

Features:
● 19” Standard Sliding type Rackmount ODF installation (1U)
● Designed to fit all standard 19” racks and cabinets
● 24 Port Cut-Outs for LC Duplex, SC, FC, ST Simplex interface adapters
● Snap-in adapter plates and removable cover provides for easy access and installation
● Designed for fiber optical backbone cabling applications
● Easily added to existing multimedia installations that will require fiber terminations
● Provides protection from physical damages and dust
● High density patching system
● Improved space to make sure bending rate of fiber
● High quality steel construction ensures durability
● Multiple internal mounting holes for cable tie-down and fiber management
● Telescopic Sliding rails on drawer
● Front cable tray for easy fiber management
● 4 cable entries into the patch panel
● Splice trays: 1
● Body Style: Symmetrical
● Color: Black (Powder coated)

Applications:
● Local Area Network
● CATV Network
● FTTX System
● Wide Area Network
● Test Instruments
