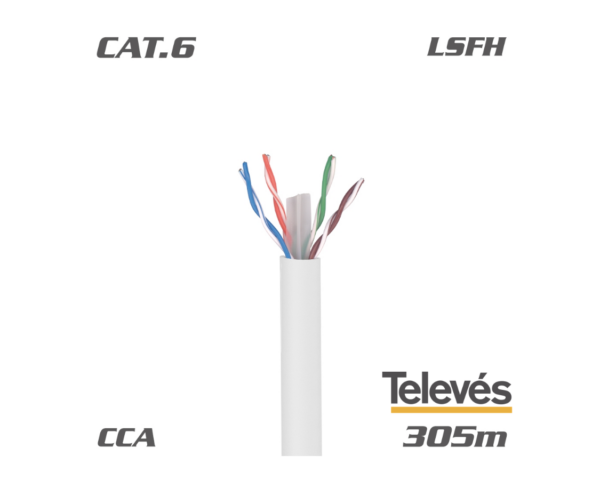

The Televes 219910 Data Cable DK6000 Cat.6 U/UTP Fca CCA LSFH 6.2mm White in 305m. reel, complies with the standard for Gigabit Ethernet and it is backwards compatible, with the standards of the inferior categories (Cat 5/5e and Cat 3). Category 6 allows to achieve transmission frequencies of up to 250 MHz (in each pair) and 1 Gbps of throughput. It includes characteristics and specifications to avoid crosstalk and noise.
This type of data cable can be used in 10BASE-T, 100BASE-T and 1000BASE-T (Gigabit Ethernet) compliant systems.
It complies with TIA/EIA-568B.2-1 (10 Base-T, 100 Base-T and 1000 Base-T network standards) and has crucifix type padding. It includes rip cord to make it easier to strip the cable. LSFH sheath (Low Smoke Free of Halogen).
Technical features:
- Class: Cat 6
- Type: U/UTP Cat.6 Fca CCA LSFH 23AWG
- Comply with TIA/EIA-568B.2-1
- Polyehtylene conductor insulation, 0.95mm diameter
- Outer sheath: material: LSFH (Low Smoke Free of Halogen), diameter (mm): 6,2 ± 0,2, thickness (mm): 0,50 ± 0,05
- EuroClass: Fca
- Conductor: material: Copper-clad aluminium, diameter (mm): 0.585 ± 0.02, type: AWG 23, isolation material: Polyehtylene, diameter (mm): 0,95
- Filler: Crucifix type
- Rip cord: Yes
- Nominal impedance Ohm: 100 ± 15
- Max. conductor resistance: Ω/Km < 117
- Transfer rate up to 1Gbps
- Frequency range of up to 250 MHz and up to 400MHz in some references
- Includes rip cord to make it easier to strip the cable
- Maximum resistance per conductor below 9.38 ohms/100m
- Nominal velocity %: 72
- Working voltage V: 300
- Operating temperature °C -25 … 70
- Color: White

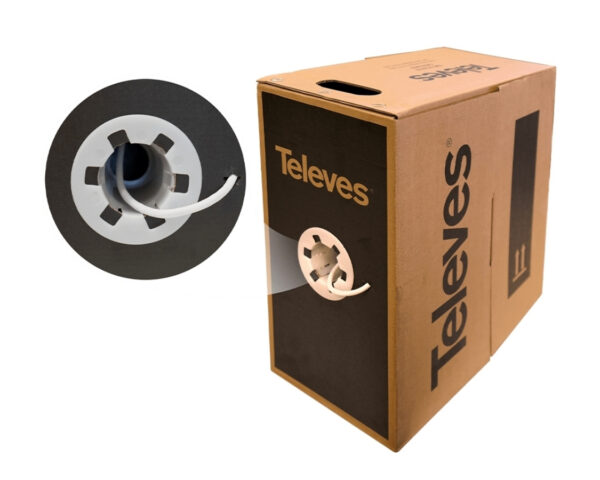

- Packing: Reel 305m (pull box), with cable consumption indicator
- Packing Quantity: 1 pc / 305m
Frequency (MHz) / Attenuation (dB/1m):
- 1 / 0.18
- 4 / 0.20
- 8 / 0.54
- 10 / 0.60
- 16 / 0.85
- 20 / 0.96
- 25 / 0.107
- 31,25 / 0.155
- 62,5 / 0.199
- 100 / 0.224
- 125 / 0.292
- 200 / 0.330
| Weight | 9.2 kg |
|---|---|
| Manufacturer | TELEVES |
| Length | 305.00m |
| LAN Category | Cat6 |
| LAN Type | UTP |
