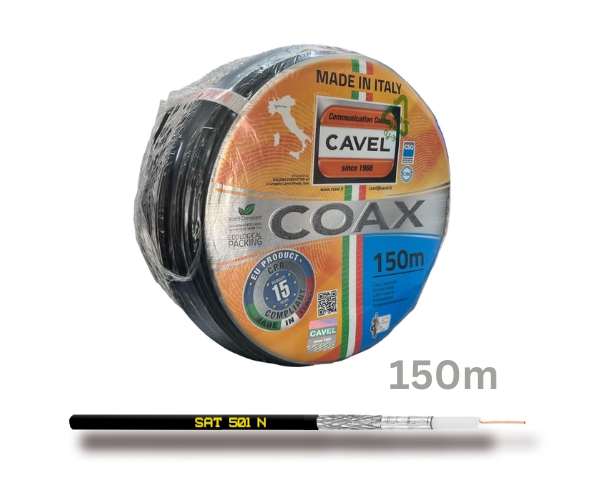

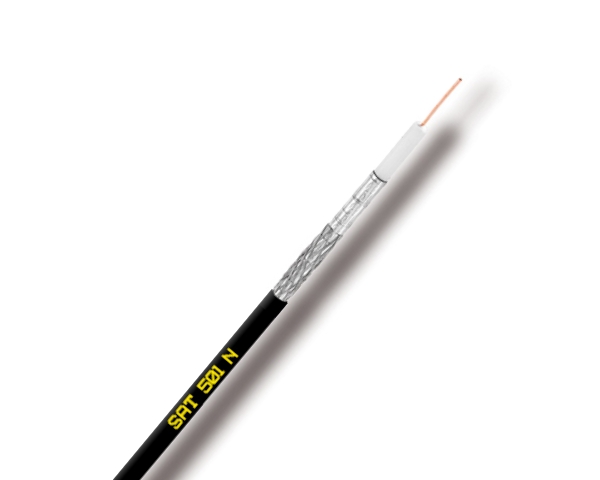

CAVEL Double Shielded Coaxial Connection Cable for Wide Band – 75 Ohm SAT501N PVC Outer Sheath
| CONSTRUCTION DATA | ||
| Inner Conductor | Ø mm | 0,80 |
| material | Cu | |
| Dielectric | Ø mm | 3,50 |
| material | PEG | |
| Film Foil Laminate | material | APA |
| Braid | material | CuSn |
| Braid Optical Coverage | % | 47 |
| Diameter over Braid | Ø mm | 4,00 |
| Outer Sheath | Ø mm | 5 |
| material | PVC | |
| PHYSICAL DATA | ||
| Copper Content | kg/km | 8,9 |
| Cable Weight | kg/km | 23,9 |
| Min bending radius x 1/n | mm | 25/50 |
| Max.Tensile Strength | N | 90 |
| ELECTRICAL DATA | ||
| Impedance | Ohm | 75±3@200 MHz |
| Capacitance (@1kHz) | pF/m | 52 ± 2 |
| Velocity Ratio | % | 85 |
| Attenuation (at 20°C ) | ||
| at 5 MHz | dB/100m | 2,3 |
| at 10 MHz | dB/100m | 2,8 |
| at 30 MHz | dB/100m | 4,6 |
| at 50 MHz | dB/100m | 5,6 |
| at 200 MHz | dB/100m | 10,9 |
| at 300 MHz | dB/100m | 13,7 |
| at 470 MHz | dB/100m | 17,4 |
| at 862 MHz | dB/100m | 23,3 |
| at 1000 MHz | dB/100m | 25,2 |
| at 1750 MHz | dB/100m | 34,0 |
| at 2150 MHz | dB/100m | 38,2 |
| at 2400 MHz | dB/100m | 40,4 |
| at 3000 MHz | dB/100m | 44,2 |
| Structural return loss (SRL) | ||
| at 5 - 470 MHz | dB | >30 |
| at 470 - 1000 MHz | dB | >28 |
| at 1000 - 2000 MHz | dB | >26 |
| at 2000 - 3000 MHz | dB | >22 |
| Screening Attenuation (SA) | Class | B |
| at 30 - 1000 MHz | dB | >80 |
| at 1000 - 2000 MHz | dB | >80 |
| at 2000 - 3000 MHz | dB | >75 |
| DC Conductor Resistance inner/outer | Ohm/km | 35,0 / 26,0 |
| Loop resistance | Ohm/km | 61,0 |
| Sheat Insulation voltage (spark test) | kV | 2,5 |
| Maximum current (Ieff) | A | 4 |
| Brand | Cavel |
|---|
