Televes 232105 Fusion Splicer Kit

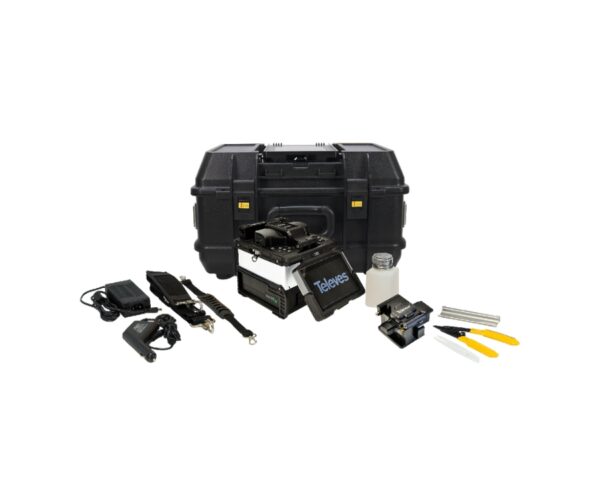

The Televes 232105 Fiber Optic Splicing Kit, with professional fusion splicer includes a professional electric arc fusion splicer equipped with SIX (6) alignment engines to work on the different axes, capable of performing an optical fibre fusion in 9 / 7 (fast mode) seconds. Furthermore, fusion starts automatically with the cover closure.

It also allows the fusion of pre-configured connectors, thus connectorizing the fibre. Design optimized to work in any environment, even in the most stringent conditions. Plus, it prevents dust form entering the fusion area, ensuring an unsurpassable quality of the overall procedure. The menu-based user interface is easy and intuitive.

The highly-resistant ABS case containing the kit has a second function besides transportation: thanks to its grooved design it can be used as a working table, making it possible for every professional to work virtually anywhere.

Technical features:

MAIN FEATURES:
– Light-weight, reduced-dimensions professional fusion splicer (1,5Kg w/o battery, W x H x D: 166 x 159 x 146mm).
– Horizontal 4.3″ High performance LCD screen
– Up to 300 fusions/bakings with a single battery charge.
– Solid base plastic protector included, compatible with the rubber band protector.
– The bumper protector made of high-density rubber provides a high impact resistance
– Endures high wind speeds, water resistance and other harsh environmental conditions
– Protection against dust in the fusion area
– Easy and intuitive user interface
– Fusion quality verification by means of a traction procedure followed by the calculation of optical losses
– The cutting angles are measured to detect a poorly set cleaver
– Detects errors in the fibre – usually due to dirt – prior to the fusion taking place
– Core or cladding based fibre alignment
– Dust,water, and shock proof
– Discharge self-calibration based on altitude and atmospheric pressure
– Calibration option based on the type of the fibre being used
– Automatic oven activation upon tube insertion
– Each of the six high-precision engines is equipped with the stepper motor operation mode, with a permanent magnet and gearbox for maximum precision
– Temperature sensor activated cooling system
– Equipment automatic self-check option
– Configurable ECO mode (LCD screen self-shutdown and Splicer self-shutdown)
– Datalog for fusion data and image export

GENERAL:
– Types of fiber the fusion splicer can work with: SM (Single-mode): Single mode (G .652 / G .657), MM (Multi-mode): Multimode (G .651), DS (Dispersion): (G.653), NZDS (non- zero dispersion): (G .655), BIF/UBIF SM, Standard working diameter: 80 to 150μm., External coating diameter: desde 100 to 1000μm., Fiber cleaved length: 5 to 20 mm (standard :16mm).
– Average loss per splice dB: 0,02 @ Single Mode fiber (SM), 0,01 @ Multi Mode fiber (MM), 0,04 @ fiber DS and NZDS, 0.02 @ BIF fiber and UBIF fiber.
– Average time per splice: 9 / 7 (fast mode) seconds
– Average time for the heat-shrink sleeve heating: 19 seconds
– Fusion programmes: 10 (SM, MM, NZ, DS and BIF) pre-configurated, 90 customizable
– Oven programmes: 4 preconfigurated, 96 customizable
– Fibre alignment: By core or cladding alignment in three axes X-Y-Z
– Lens magnification: Axle X + Axle Y = 180, Axle X or Axle Y = 360
– Max. log record: 10000
– Languages: English, German, Portuguese, Spanish
– Electrodes life uses: 3000 (aprox), 6000 (with spare)
– Device automatic check via user menu
– Dimensions: W x H x D: 166 x 159 x 146 mm

SENSORS: Internals: Internal temperature, atmospheric pressure, elevation and oven temperature

INTERFACES: Mini USB: Updates and logs download, Double led light that eases the work in dark areas.

POWERING:
– Mains voltage Vac: 100 – 240, Mains frequency Hz: 50 / 60
– Output: 13.5V /5A
– Battery: Long life battery Li-ION (11.1V and 7800mAh) with charge display (service life 300 fusion/baking cycles, and 1000 load cycles)

OPERATING RANGE:
– Operating temperature ?C / ?F: -20 … +55 /-4 …+131
– Relative humidity % < 95%
– Altitude m 0 – 5000

Package includes:
– Professional electric arc fusion splicer machine
– Carrying case
– Handle for the fusion splicer and carrying strap for the case
– CD with user manual and software for data download
– Optical fiber cleaver with removable pick-up feature, and blade for up to 16.000 cuts
– Precision stripper, pre-calibrated for 125, 250 and 900μm
– Power cord, power supply and car adapter (the latter includes USB output to feed other devices)
– User-removable lithium battery with charge level visual indicator
– Isopropyl alcohol tank with dispenser
– Plastic tweezers
– Mount for fi ber protection cooling
– Solid plastic screen protector
