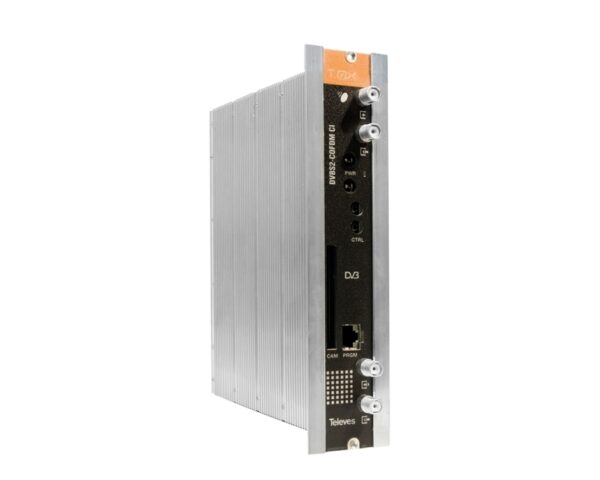

Televes 563301 T.0X DVB-S2 to COFDM CI

DVB-S2 to COFDM CI T.0X Transmodulator that generates a COFDM multiplex from services found in a SAT transponder (SD or HD).

Technical features:

– Generation of the transport stream according to the DVB-T standard by: Insertion of nil packets (Stuffing) to allow quicker scans by STBs or use of an unique symbol rate in all the STBs.
– Selective deletion of services from the input transponder to avoid them being detected (and stored) by the STBs.
– Possibility of performing chnages in the NIT table to replace the satellite descriptor for the DTT descriptor. Making the scanning process easier for those STBs that base their search on the Transport Stream identifier.
– Provides information on the capacity that each of the services is using from the total capacity available on the DVB-T multiplex. It will also give you the percentage of the total capacity that it’s being used, allowing you to optimize the number of services that are being distributed.
– By means of its CI (Common Interface) slot and CAM module (not supplied with the module), the encrypted satellite programs at the input can be transformed into DTT FTA (Free To Air) programs at the output.
– Allows the LCN (Logical Channel Number) edition for the programs at the output, hence allowing you to set the order of each program within the channel list at the output.

INPUTS
– Satellite IF Input
– Satellite IF Output
– Powering
– Control
– CAM Slot
– Connector for the programmer or PC
– RF Input
– DVB-T Output

DEMODULATION
– Input frequency 950-2150 MHz
– Symbol rate 10-30 Mbaud (QPSK-8PSK)
– Frequency steps 1 MHz
– Input connectors and output F female
– Input impendance 75 ohm
– LNB power supply 13/17V/OFF 22 Khz (ON/OFF)
– Through loss <1,5 dB typ.
– Modulation DVB-S2 (QPSK, 8PSK) DVB-S (QPSK)
– Internal FEC LDPC (9/10, 8/9, 5/6, 4/5, 3/4, 2/3,3/5, 1/2, 1/4, 1/3, 2/5
– External FEC BCH (Bose-chaudhuri-hocquenghem)
– Roll-off factor 20%, 25%, 35%
– Input VSWR 10 dB min.

COFDM MODULATION
– Modulation format QPSK, 16QAM, 64QAM
– Guard Interval 1/4, 1/8, 1/16, 1/32
– FEC 1/2, 2/3, 3/4, 5/6, 7,8
– Bandwidth 7 MHz, 8 MHz
– Scrambling DVB ET300744
– Interleaving DVB ET300744
– Cell_id Selectable
– Output spectrum Normal /Inverted (Select)

RF OUT
– Frequency 45-862 MHz / 474-858 MHz (UHF)
– Frequency steps 166 KHz
– Output 80±5 dB΅V (programmable)
– Attenuation >15 dB (programmable)
– Through loss <1,5 dB typ.
– Return loss >12 dB typ.
– In/out: F-female
– 75 ohm

GENERAL
– Power supply 24V
– 24V 300 mA
– Protection index IP20
