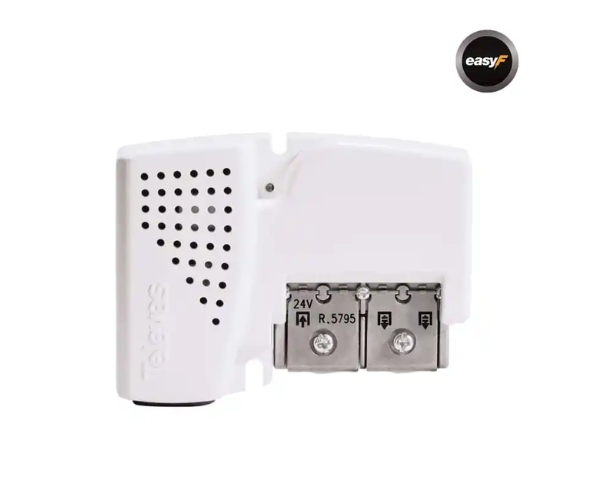

5795 PicoKom PSU Easy-F 24V 2out

Model: 5795
SKU: 11-03-0001
In Stock
In Stock
1 Working Day Delivery ACS
Speedy and reliable parcel delivery!
SKU: 11-03-0001 Categories: , ,

Used for 24v mast amplifiers, with coaxial cable connection.



PicoKom power supply unit 24 V – 130 mA, 2 outputs Televes

Domestic 24 V-power supply (130 mA) that powers equipment through the input coaxial cable while allowing the transmission of the TV signal. Included in the installation to power either mast amplifiers or a BOSS system. Furthermore, it is equipped with two outputs.

High efficiency switched-mode power supply unit, Ultra compact design, 40 % lower power consumption. With 2 outputs to TVs

  • High-performance switched-mode power supply: saves up to 40% power consumption
  • Very low power consumption
  • Pleasing design and ultra-small size: can be installed in 100 mm x 100 mm connection boxes
  • EasyF connection system
  • Fully automated manufacturing, subject to the most stringent quality controls
Main features
  • Can be wall-mounted using screws
  • Through losses may vary depending on whether 1 or 2 outputs are used

Barcode: 8424450140925

SKU: 11-03-0001

Plug type EU
Number of outputs 2
Frequency range MHz
5 ... 862
Insertion losses: 1 output dB
Insertion losses: 2 outputs dB
Output voltage Vdc 24
Max. output current mA 130
Input voltage Vac 220 ... 230
Mains frequency 50 Hz / 60 Hz
Max. current mA 35
Max. power consumption W 4.4
Operating temperature °C -5 ... 45
Protection index 20

Additional information



Application Example


Manual New



asyF connection system: simplicity and savings

EasyF is an innovative connection concept where the inner conductor of the coaxial cable is directly inserted in the device, thus improving connection reliability. Thanks to the absence of F connectors, the chassis can be reduced and the connection of two cables secured with a a single screw.

  • Real time savings: speeding the installation is possible without the need for coaxial cable termination. Furthermore, there is no need for screwing the connectors on the device, which is sometimes difficult when there is little room
  • Connection reliability: the clamp holding the cables prevents the coaxial cable to come off
  • Cost savings: no additional connectors are required (neither F nor IEC)
  • Space optimization: inputs and outputs are always on the same side of the device to prevent coaxial cables from bending, and to make working inside cabinets and register boxes easier
  • Very easy three-step mounting: only screwing and unscrewing the covers is required to connect both cables:

1. Unscrew the device’s cover to access the connection

2. Insert the previously stripped coaxial cables

3. Close the cover and screw to ensure connection

Learn more about EasyF system reliability

With EasyF, the connection between the coaxial cable and the device is carried out using an automated system for contact insertion of the inner conductor, without any soldering.

  • Always as new: the device’s operating life increases when the factor of solder wearing out with time is removed
  • Failure rate reduction: usually produced as a result of cold soldering joints
  • Electromagnetic behaviour optimization: for high frequencies
  • Our commitment with environment is reinforced: pollution caused by the welding process is eliminated and production power consumption is reduced


What is the best power supply unit for the  DAT HD BOSS?

Any 12 V or 24 V power supply unit may be used to feed a DAT HD BOSS antenna.

Should a power supply unit be installed between a Dinova and a zAs?

Not always. Among the devices provided with the Dinova antenna, there is actually a power supply unit. In case of an installation that includes distribution, an active power supply may be required, since the gain it provides allows for the distribution of the signal towards multiple reception points. However, for installations involving just a receiver and an adapter (portable installations), a zAs adapter could power the Dinova antenna without the need for an extra power supply.
