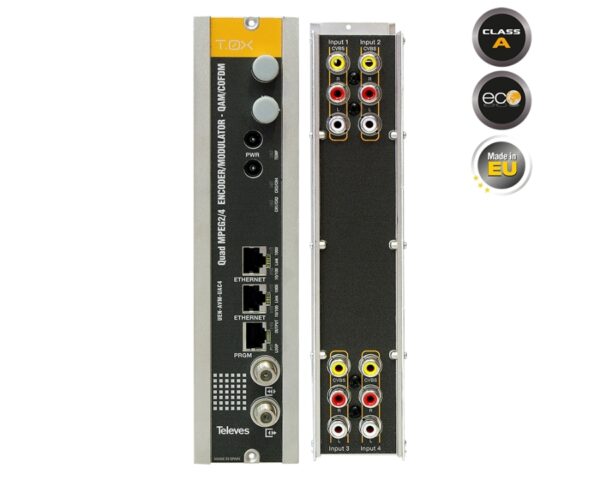

Televes 563832 T.0X TWIN Modulator HDMI/AV to COFDM/QAM

563832 HDTV T.0X Encoder TWIN HDMI/Composite CVBS to COFDM/QAM, is an encoder/modulator which generates a HDTV channel with two services; each service can come from three different input formats (HDMI, YPbPr or composite CVBS). like cameras, PCs, or TVSAT receivers. It is able to encode either in MPEG-2 or H.264(HDTV) format. It can be configured with the PCT5.0 handset or using the Web Server incorporated in each module. This server enables a remote or local management and configuration. The highest gain of the output signal (up to 115dB΅V or 103dB΅V with the loop-through active) avoid the need of using additional amplifiers. You can choose between generating DVB-T (DTT) channels or DVB-C (QAM) to use in Cable TV operator networks. User friendly configuration using an embedded web server. Remote control through the Internet. High output gain with no need of extra amplification. Configurable COFDM or QAM output. Energy efficient due to its low power consumption.

MAIN FEATURES:

– INPUT: Video 2 sets 1 x HDMI and 2 sets 3 x RCA (Y, Pb, Pr) and 2 sets 1 x RCA (CVBS), Audio 2 sets 2 x RCA (L, R), 2 sets 1 x RCA (Digital), 2 sets 1 x Toslink (Optical), Video + Audio
– OUTPUT: COFDM DVB-T (DTT) ή DVB-C QAM, MUX 2 channels MPEG-2 or H264 (MPEG-4 AVC)
– High quality output (MER>40dB).
– Compatible with many formats HDMI, CVBS, YPbPr, SPDIF audio, resolutions and TV screen dimensions.
– Fully configurable modulation and codification parameters.
– HDCP (High-Bandwitdh Digital Content Protection) incorporated, can be disabled in case of having authorization from the TV provider.

Technical features:

INPUT

– Video:2 x HDMI and 2 sets 3 x RCA (Y, Pb, Pr) and 2 x RCA (CVBS).
– Audio: 2 sets 2 x RCA (L, R) and 2 sets 1 x RCA (Digital) and 2 sets 1 x Toslink (Optical)
– QAM: ”F” Female (loop-through combiner input)
– Connectors ”F” Female (loop-through combiner input)

VΙDEO ENCODER

– Output format: 2 channels COFDM DVB-T (DTT) or DVB-C QAM, MPEG-2 or H264.
– Resolution: 480i, 480p, 576i, 576p, 720p, 1080i & 1080p Supports auto-scan for input resolution
– Aspect ratio: 4:3, 16:9 and pass through
– GOP: 10, 12, 15, 16, 18, 20, 24 or 30
– Transport rate: Variable
– Video bit rate: Variable

AUDIO ENCODER

– Output format: Dolby Digital AC-3 (only digital passthrough) or MPEG1 Layer2 (analog input or HDMI uncompressed PCM audio
– Sampling rate: kHz 48
– Output bitrate: Variable

OUTPUT

– Frequency bands MHz: 46…862
– Output maximum level: dB΅V 115 (103 with active loop-through)
– MER dB: >40
– Spurious dBc: -60
– Impedance Ω 75
– I/Q Phase Error <1
– I/Q Amplitude Imbalance % <1

QAM

– Modulation: 16, 32, 64, 128, 256
– BaudRate Mbaud: 6,9
– Roll-off % : 15
– Code: Reed Solomon
– Spectrum mode: Normal / Inverted
– Frequency steps: kHz 250

COFDM

– Modulation: QPSK, 16QAM, 64QAM
– Guard interval ΅S: 1/4, 1/8, 1/16, 1/32
– FEC: 1/2, 2/3, 3/4, 5/6, 7/8
– Bandwidth MHz: 6, 7, 8
– Cell_id: Configurable
– Frequency steps kHz: 125 / 166

PSI PARAMETERS

– Transport Stream ID: Configurable
– Original Network ID: Configurable
– Network ID: Configurable
– LCN: Configurable
– NIT: Manual / Automatic
– SDT: Manual / Automatic
– LCN mode: Generic / UK / NorDig V1 / NorDig V2
– Network Name: Configurable
– Service PID: Configurable
– Service Name: Configurable
– Service ID: Configurable

MONITORING / CONTROL

– Local control: Full configuration with LCD handheld programmer
– Local monitoring: LOOP status LED, OUTPUT status LED, TEMP status LED, CH1/CH2 status LEDs, Ethernet status LEDs
– Remote monitoring: Centralized web based remote control, management, alarms, and software upgrades.
– Control: Daisy-chain integrated ethernet switch

GENERAL

– Power supply: Vdc 24
– Consumption: W <20.4
– Ingress Protection: IP 20
– Operating Temperature: F / C 32 to 113 / 0 to 45
– Dimensions (W x H x D) mm: 50 x 216 x 180
– 2-year warranty
