TP-Link 9-Port 10/100 Switch with 8-Port PoE+ TL-SF1009P
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
The TP-Link TL-SF1009P is a 9-Port Fast Ethernet PoE+ Switch with 8 PoE+ ports and a 65W power budget. Featuring Extend Mode up to 250m, Priority Mode and Isolation Mode, it is ideal for IP camera installations, wireless access points and small business networks.
Technical Features
- 8 PoE+ Fast Ethernet Ports
- 1 Fast Ethernet Uplink Port

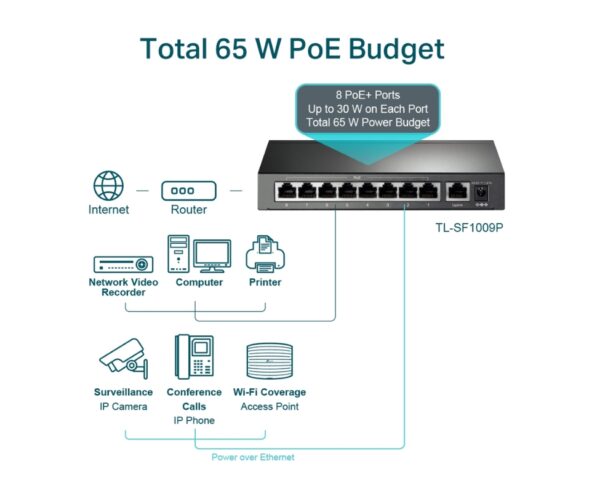

- 65W Total PoE Budget
- Up To 30W Per PoE+ Port
- IEEE802.3af/at PoE Support

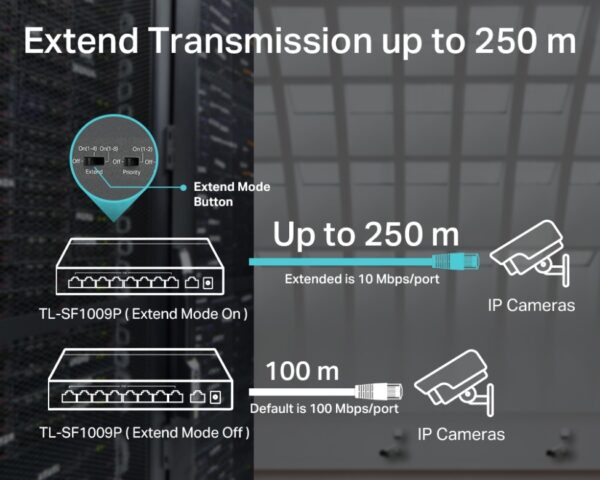

- Extend Mode Up To 250m

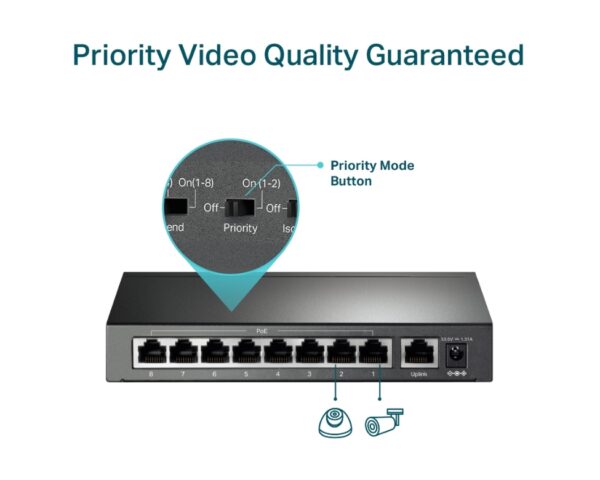

- Priority Mode For Critical Devices
- Isolation Mode For Enhanced Security

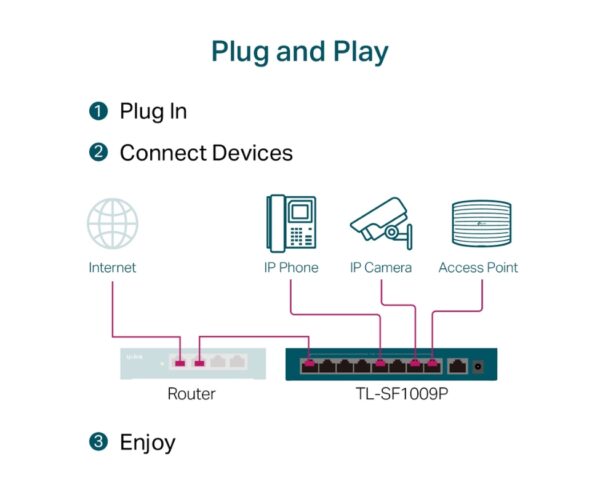

- Plug and Play Installation
- Fanless Metal Design
Technical Details
- Interfaces:
- 9 × 10/100Mbps RJ45 Ports
- 8 × 10/100Mbps IEEE802.3af/at PoE+ Ports
- Auto Negotiation: Yes
- Auto MDI/MDIX: Yes
- Network Media:
- 10BASE-T: UTP Category 3, 4, 5 Cable, EIA/TIA-568 100Ω STP (Maximum 100m)
- 100BASE-TX: UTP Category 5, 5e Cable, EIA/TIA-568 100Ω STP (Maximum 100m)
- Fan: Fanless
- Physical Security Lock: Yes
- Power Supply: External Power Adapter (Output: 53.5VDC / 1.3A)
- Packet Forwarding Rate: 1.3392Mpps
- PoE Standard: IEEE802.3af/at
- PoE Ports: Ports 1-8
- PoE Budget: 65W
- MAC Address Table: 2K
- Jumbo Frame: 2KB
- Switching Capacity: 1.8Gbps
- Dimensions: 171 × 98 × 27mm
- Maximum Power Consumption: 3.6W (No PD Connected), 77.1W (With 65W PD Load)
- Maximum Heat Dissipation: 12.3 BTU/h (No PD Connected), 262.8 BTU/h (With 65W PD Load)
- Advanced Features:
- Compatible With IEEE802.3af/at Powered Devices
- Extend Mode Button (Ports 1-4 And Ports 1-8, Up To 250m PoE Power Supply And Data Transmission)
- Priority Mode Button (Ports 1-2)
- Isolation Mode Button (Ports 1-8)
- MAC Address Auto-Learning And Auto-Aging
- IEEE802.3x Flow Control For Full-Duplex Mode
- Backpressure For Half-Duplex Mode
- Transmission Method: Store-And-Forward
- Certifications: FCC, CE, RoHS
- Operating Temperature: 0°C ~ 40°C
- Storage Temperature: -40°C ~ 70°C
- Operating Humidity: 10% ~ 90% RH Non-Condensing
- Storage Humidity: 5% ~ 90% RH Non-Condensing
Package Contents:
- TL-SF1009P Switch
- Power Adapter
- Installation Guide
| Manufacturer | TP-Link |
|---|---|
| Speed | 10/100 |
| POE Budget | 65W |
| POE Ports | 8 |
| Power over Ethernet (PoE) | PoE+ |
| Device Total Ports | 9 |
| Mount Type | Desktop |
| POE Switch | Yes |
